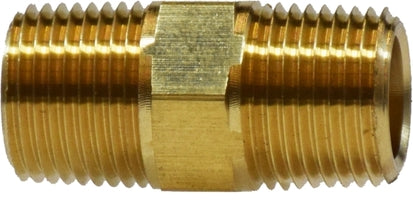

28213 (28-213) Midland Hex Nipple - 3/8" Male NPTF x 1.41" Length - Brass

28213 by Midland | Hex Nipple | 3/8" Male NPTF x 1.41" Length | Brass

Save $1.19 Save $1.19
$2.97
$2.97 - $2.97
$2.97
$1.78
$1.78 - $1.78
$1.78

Midland Industries
Brass Fitting - Pipe Thread - Hex Nipple

Inventory @ Manufacturers Warehouse: 5555 Units
Specifications for Variant SKU: 28213 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 3/8in Male NPTF, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications: Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems Used With: Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating: SAE# 130137 Conformance: Meets specifications and standards of ASA, ASME and SAE
Vibration: Fair Resistance. Temperature Range: -65°F to +250°F (-53°C to +121°C)
Tolerance: +/- .02 on all dimensions. Dimension Data can change without notice. Lead Free: Not Lead Free
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14 1-11-1/2
Working Pressure 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1200 PSI 1000 PSI 1000 PSI
Thread OD 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1-1/4"
Crossover Series:
122 216P 3325 379 122AH 122B
Part Number Thread Size
Male NPTF 		A Hex Approx. Weight
(Lbs.)
28210 1/16" 0.97" 0.38" 0.02
28211L
(28-211L)		 1/8" 0.91" 0.43" 0.02
28211
(28-211)		 1/8" 0.97" 0.43" 0.03
28212L
(28-212L)		 1/4" 1.12" 0.56" 0.04
28212
(28-212)		 1/4" 1.38" 0.56" 0.06
28213L
(28-213L)		 3/8" 1.25" 0.68" 0.07
28213
(28-213)		 3/8" 1.41" 0.68" 0.07
28214L
(28-214L)		 1/2" 1.50" 0.87" 0.11
28214
(28-214)		 1/2" 1.81" 0.87" 0.17
28215L
(28-215L)		 3/4" 1.55" 1.07" 0.17
28215
(28-215)		 3/4" 1.96" 1.13" 0.23
28216L
(28-216L)		 1" 1.75" 1.39" 0.22
28216
(28-216)		 1" - - 0.43
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
