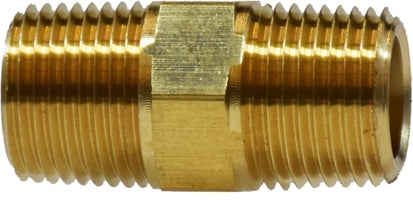

28215L (28-215L) Midland Low Pressure Hex Nipple - 3/4" Male NPTF - 1.55" Length - Brass

28215L by Midland | Low Pressure Hex Nipple | 3/4" Male NPTF | 1.55" Length | Brass

Name: 28215L by Midland | Low Pressure Hex Nipple | 3/4" Male NPTF | 1.55" Length | Brass
Brand: Midland Industries
SKU: 28215L Midland
Price: 5.72 USD
Availability: InStock

Save $3.81

$9.53

$9.53 - $9.53

$9.53

$5.72

$5.72 - $5.72

$5.72

Midland Industries
Brass Fitting - Pipe Thread - Hex Nipple

Inventory @ Manufacturers Warehouse: 3580 Units

Specifications for Variant SKU: 28215L Midland
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPTF, 3/4in Male NPTF, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards

SPECIFICATIONS

Applications:	Grease, Fuels, LP and Natural Gas (available on special order), Refrigeration, Instrumentation and Hydraulic Systems	Used With:	Brass, Bronze, Copper, Steel, Aluminum and Iron Pipe
SAE Rating:	SAE# 130137	Conformance:	Meets specifications and standards of ASA, ASME and SAE
Vibration:	Fair Resistance.	Temperature Range:	-65°F to +250°F (-53°C to +121°C)
Tolerance:	+/- .02 on all dimensions. Dimension Data can change without notice.	Lead Free:	Not Lead Free

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14	1-11-1/2
Working Pressure	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1200 PSI	1000 PSI	1000 PSI
Thread OD	1/4"	3/8"	1/2"	5/8"	3/4"	1"	1-1/4"

Crossover Series:
122	216P	3325	379	122AH	122B


Part Number	Thread Size Male NPTF	A	Hex	Approx. Weight (Lbs.)
28210	1/16"	0.97"	0.38"	0.02
28211L (28-211L)	1/8"	0.91"	0.43"	0.02
28211 (28-211)	1/8"	0.97"	0.43"	0.03
28212L (28-212L)	1/4"	1.12"	0.56"	0.04
28212 (28-212)	1/4"	1.38"	0.56"	0.06
28213L (28-213L)	3/8"	1.25"	0.68"	0.07
28213 (28-213)	3/8"	1.41"	0.68"	0.07
28214L (28-214L)	1/2"	1.50"	0.87"	0.11
28214 (28-214)	1/2"	1.81"	0.87"	0.17
28215L (28-215L)	3/4"	1.55"	1.07"	0.17
28215 (28-215)	3/4"	1.96"	1.13"	0.23
28216L (28-216L)	1"	1.75"	1.39"	0.22
28216 (28-216)	1"	-	-	0.43
