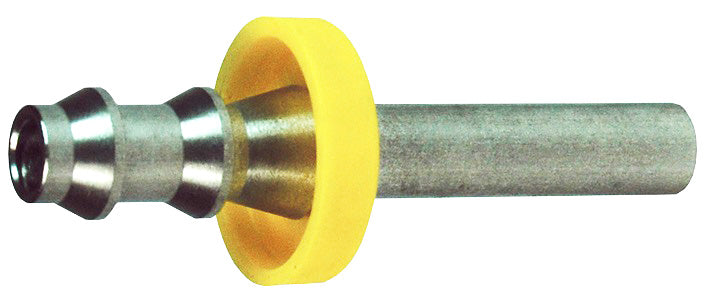

2940606SS by Dixon Valve | Push-On Hose Barb Fitting | Rigid Tube | 3/8" Tube OD x 3/8" Hose ID | 303 Stainless Steel

Name: 2940606SS by Dixon Valve | Push-On Hose Barb Fitting | Rigid Tube | 3/8" Tube OD x 3/8" Hose ID | 303 Stainless Steel
Brand: Dixon
SKU: 2940606SS Dixon
Price: 15.13 USD
Availability: InStock

Save $10.09

$25.22

$25.22 - $25.22

$25.22

$15.13

$15.13 - $15.13

$15.13

Dixon Valve
Push-On Hose Barb Fitting | Rigid Tube x Hose Barb

Intended for use with Lok-On (push-on style) hose only.

Quantity

Specifications for Variant SKU: 2940606SS Dixon
Series:	294 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-On Hose Barb, 3/8in Tube Stem
Material(s):	303 Stainless Steel

Features:
No hose clamps or ferrules are needed for installation.
Material:
Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
Temperature Range: -40 to +150°F Pressure Rating: 350 PSI
Safety Notes:
Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only. Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
Assembly Instructions: 1. Trim hose end with smooth square cut. 2. Lubricate either push-on fitting, hose or both. 3. Insert push-on fitting into hose until first barb is in hose. 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap. Disassembly Instructions: 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose. 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.

Brass		303 Stainless Steel		Hose I.D.	Tube O.D.
Part Number	Previous Part Number	Part Number	Previous Part Number
2940403C	294-0403	-	-	1/4"	3/16"
2940403CBC*	-	-	-	1/4"	3/16"
2940404C	294-0404	2940404SS	294-0404SS	1/4"	1/4"
2940404CBC*	-	-	-	1/4"	1/4"
2940405C	294-0405	-	-	1/4"	5/16"
2940606C	294-0606	2940606SS	294-0606SS	3/8"	3/8"
2940808C	294-0808	2940808SS	294-0808SS	1/2"	1/2"
2941010C	294-1010	-	-	5/8"	5/8"
2941212C	294-1212	2941212SS	294-1212SS	3/4"	3/4"

* Brass cap on CBC parts

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
