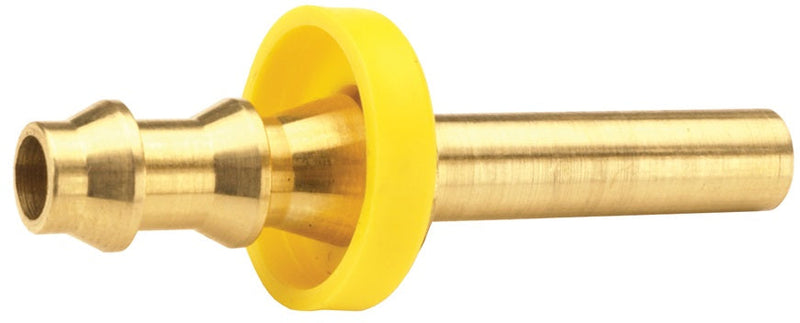

2940808C by Dixon Valve | Push-On Hose Barb Fitting | Rigid Tube | 1/2" Tube OD x 1/2" Hose ID | Brass

2940808C by Dixon Valve | Push-On Hose Barb Fitting | Rigid Tube | 1/2" Tube OD x 1/2" Hose ID | Brass

Save $0.28 Save $0.28
$3.20
$3.20 - $3.20
$3.20
$2.92
$2.92 - $2.92
$2.92

Dixon Valve
Push-On Hose Barb Fitting | Rigid Tube x Hose Barb

Intended for use with Lok-On (push-on style) hose only.
Specifications for Variant SKU: 2940808C Dixon
Series: 294 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 1/2in Tube Stem
Material(s): Brass
Features:
  • No hose clamps or ferrules are needed for installation.
Material:
  • Yellow Plastic Cap (Part numbers that end with CBC have Brass Caps.)
Specifications:
  • Temperature Range: -40 to +150°F
  • Pressure Rating: 350 PSI
Safety Notes:
  • Dixon push-on fittings are intended for use with Lok-On (push-on style) hose only.
  • Caution: Push-on fittings will properly grip push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap.
Installation:
  • Assembly Instructions:
    • 1. Trim hose end with smooth square cut.
    • 2. Lubricate either push-on fitting, hose or both.
    • 3. Insert push-on fitting into hose until first barb is in hose.
    • 4. Place end of fitting against a flat object (bench, wall, etc.) and grip the hose one inch from end. Push with a steady force until end of hose is covered by yellow plastic cap.
  • Disassembly Instructions:
    • 1. Leaving push-on fitting in place, make a 1" cut in the hose along the barbed end of the fitting. Note: Be careful not to nick barbs when cutting the hose.
    • 2. With firm grip on hose, give a sharp downward pull to release the fitting from the hose.
Brass 303 Stainless Steel Hose I.D. Tube O.D.
Part Number Previous Part Number Part Number Previous Part Number

2940403C 294-0403 - - 1/4" 3/16"
2940403CBC* - - - 1/4" 3/16"
2940404C 294-0404 2940404SS 294-0404SS 1/4" 1/4"
2940404CBC* - - - 1/4" 1/4"
2940405C 294-0405 - - 1/4" 5/16"
2940606C 294-0606 2940606SS 294-0606SS 3/8" 3/8"
2940808C 294-0808 2940808SS 294-0808SS 1/2" 1/2"
2941010C 294-1010 - - 5/8" 5/8"
2941212C 294-1212 2941212SS 294-1212SS 3/4" 3/4"

* Brass cap on CBC parts
