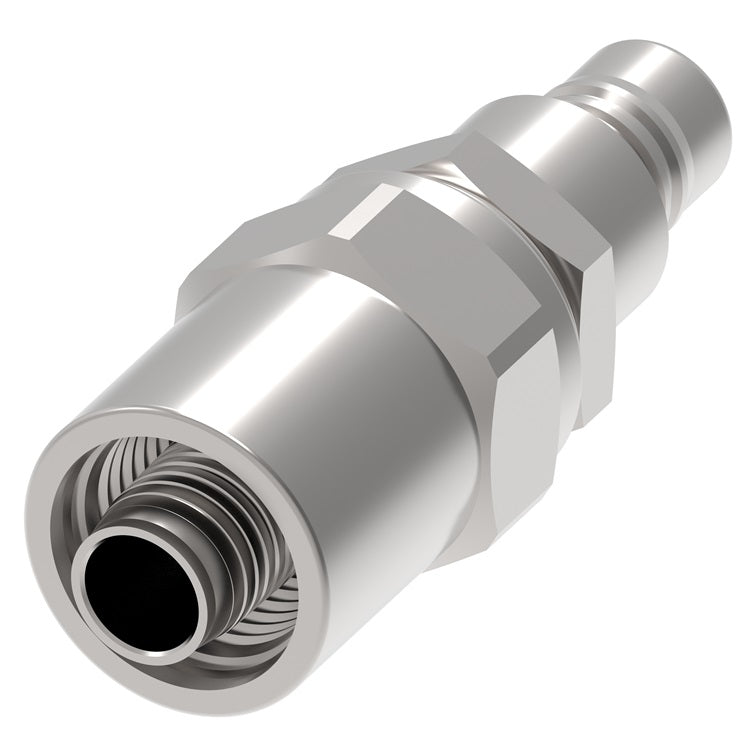

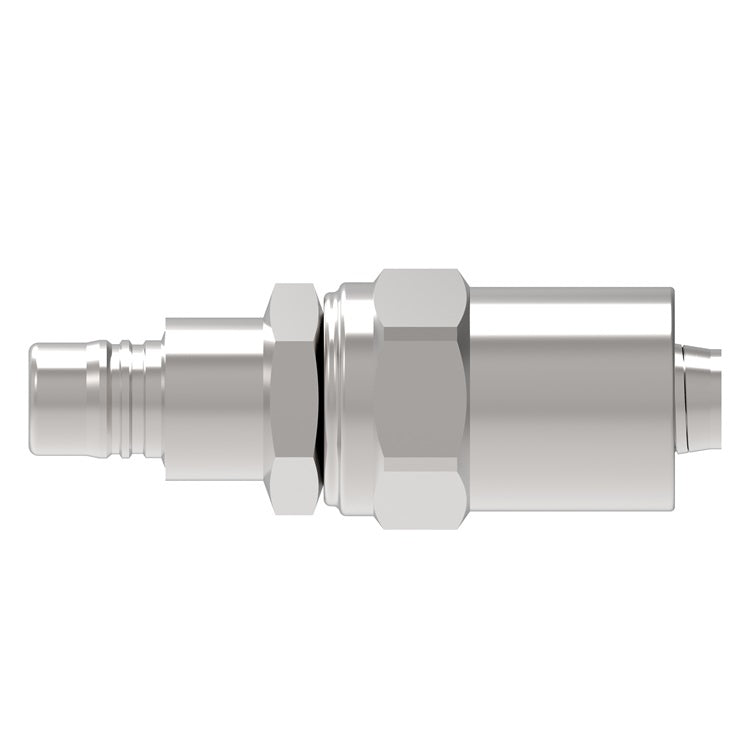

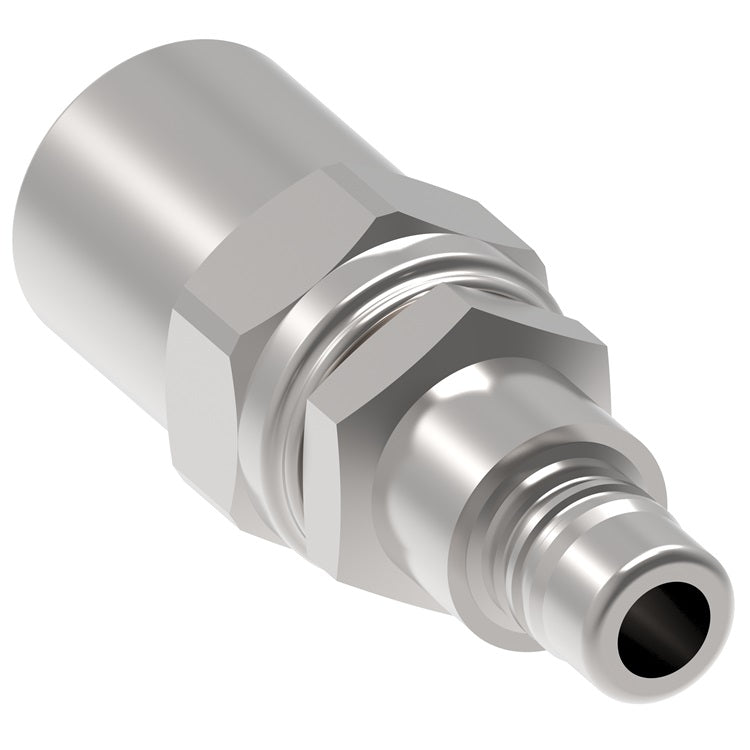

2L185C9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 11/16" Hose OD | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
2L185C9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 11/16" Hose OD | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
2L185C9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 11/16" Hose OD | 5/16" Hose ID x 1/4" Body Size | Plug | Steel
2L185C9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 11/16" Hose OD | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

2L185C9 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 11/16" Hose OD | 5/16" Hose ID x 1/4" Body Size | Plug | Steel

$51.56 - $51.56
$51.56
$51.56 - $51.56
$51.56

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 2L185C9 Danfoss
Brand: Hansen
Series: 2RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
A B Hex
2R18B3 Socket/Female 1/4" 1/4" 1/2" Hose Crimp End 1 2.73"
(69.3mm)		 1.06"
(26.9mm)		 0.63"
(16.00mm)
2R185C7 Socket/Female 1/4" 5/16" 5/8" Hose Crimp End 1 2.79"
(70.9mm)		 1.06"
(26.9mm)		 0.75"
(19.05mm)
2R23D7 Socket/Female 1/4" 3/8" 5/8" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.75"
(19.05mm)
2R23D9 Socket/Female 1/4" 3/8" 11/16" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.81"
(20.57mm)
2R23D11 Socket/Female 1/4" 3/8" 3/4" Hose Crimp End 1 2.85"
(72.4mm)		 1.06"
(26.9mm)		 0.88"
(22.35mm)
2R28P13 Socket/Female 1/4" 1/2" 13/16" Hose Crimp End 1 3.48"
(88.4mm)		 1.06"
(26.9mm)		 0.94"
(23.88mm)
2R28P15 Socket/Female 1/4" 1/2" 7/8" Hose Crimp End 1 3.48"
(88.4mm)		 1.06"
(26.9mm)		 1.00"
(25.40mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Hose ID Hose OD End Type Figure Dimensions
C D Hex
2L18B3 Plug/Male 1/4" 1/4" 1/2" Hose Crimp End 2 2.23 "
(56.6mm)		 0.70"
(17.8mm)		 0.63"
(16.00mm)
2L185C7 Plug/Male 1/4" 5/16" 5/8" Hose Crimp End 2 2.29"
(58.2mm)		 0.84"
(21.3mm)		 0.75"
(19.05mm)
2L185C9 Plug/Male 1/4" 5/16" 11/16" Hose Crimp End 2 2.29"
(58.2mm)		 0.91"
(23.1mm)		 0.81"
(20.57mm)
2L23D7 Plug/Male 1/4" 3/8" 5/8" Hose Crimp End 2 2.35"
(59.7mm)		 0.84"
(21.3mm)		 0.75"
(19.05mm)
2L23D9 Plug/Male 1/4" 3/8" 11/16" Hose Crimp End 2 2.35"
(59.7mm)		 0.91"
(23.1mm)		 0.81"
(20.57mm)
2L23D11 Plug/Male 1/4" 3/8" 3/4" Hose Crimp End 2 2.35"
(59.7mm)		 0.98"
(24.9mm)		 0.88"
(22.35mm)
2L28P13 Plug/Male 1/4" 1/2" 13/16" Hose Crimp End 2 3.41"
(86.6mm)		 1.05"
(26.7mm)		 0.94"
(23.88mm)
2L28P15 Plug/Male 1/4" 1/2" 7/8" Hose Crimp End 2 3.41"
(86.6mm)		 1.12"
(28.4mm)		 1.00"
(25.40mm)
