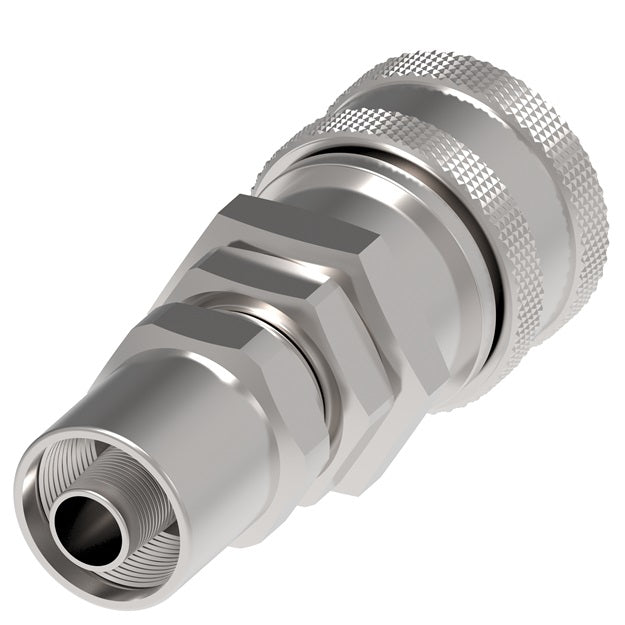

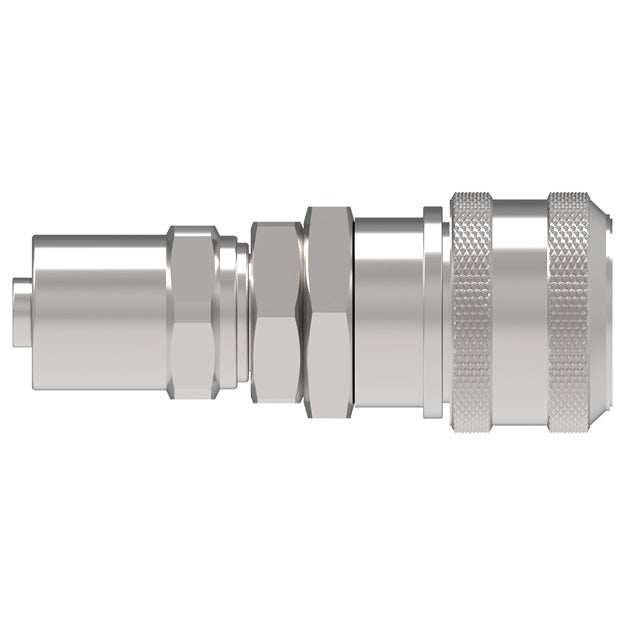

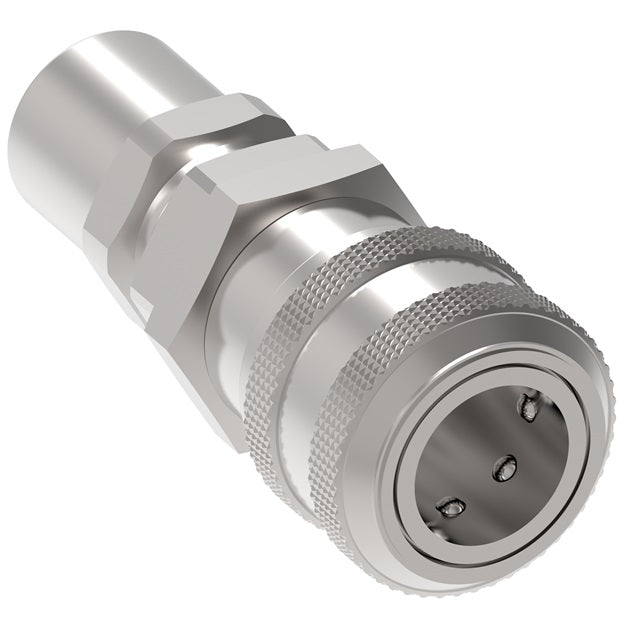

2R28P15 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 7/8" Hose OD | 1/2" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

2R28P15 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Crimp End | 7/8" Hose OD | 1/2" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

$47.34 - $47.34

$47.34

$47.34 - $47.34

$47.34

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.

Specifications for Variant SKU: 2R28P15 Danfoss
Brand:	Hansen
Series:	2RL Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	High Flow capacity. Push to connect with a ring lock sleeve. Ring lock design prevents accidental disconnection. To disconnect rotate sleeve 20 degrees.
Applications & Markets:	Shipyards General Pneumatics Mining Marine
Materials:	Standard body material: Trivalent Plated Steel Standard seal material: Buna-N

Series	Coupling Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
2RL	1/4"	20 bar	300 psi	80 bar	1,200 psi	1,350 lpm	48 scfm
3RL	3/8"	20 bar	300 psi	80 bar	1,200 psi	2,250 lpm	80 scfm


Socket/Female (Figure 1)					Plug/Male (Figure 2)
2RL Series \| Socket
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Figure	A	B	Hex
2R18B3	Socket/Female	1/4"	1/4"	1/2"	Hose Crimp End	1	2.73" (69.3mm)	1.06" (26.9mm)	0.63" (16.00mm)
2R185C7	Socket/Female	1/4"	5/16"	5/8"	Hose Crimp End	1	2.79" (70.9mm)	1.06" (26.9mm)	0.75" (19.05mm)
2R23D7	Socket/Female	1/4"	3/8"	5/8"	Hose Crimp End	1	2.85" (72.4mm)	1.06" (26.9mm)	0.75" (19.05mm)
2R23D9	Socket/Female	1/4"	3/8"	11/16"	Hose Crimp End	1	2.85" (72.4mm)	1.06" (26.9mm)	0.81" (20.57mm)
2R23D11	Socket/Female	1/4"	3/8"	3/4"	Hose Crimp End	1	2.85" (72.4mm)	1.06" (26.9mm)	0.88" (22.35mm)
2R28P13	Socket/Female	1/4"	1/2"	13/16"	Hose Crimp End	1	3.48" (88.4mm)	1.06" (26.9mm)	0.94" (23.88mm)
2R28P15	Socket/Female	1/4"	1/2"	7/8"	Hose Crimp End	1	3.48" (88.4mm)	1.06" (26.9mm)	1.00" (25.40mm)
2RL Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	Hose OD	End Type	Figure	C	D	Hex
2L18B3	Plug/Male	1/4"	1/4"	1/2"	Hose Crimp End	2	2.23 " (56.6mm)	0.70" (17.8mm)	0.63" (16.00mm)
2L185C7	Plug/Male	1/4"	5/16"	5/8"	Hose Crimp End	2	2.29" (58.2mm)	0.84" (21.3mm)	0.75" (19.05mm)
2L185C9	Plug/Male	1/4"	5/16"	11/16"	Hose Crimp End	2	2.29" (58.2mm)	0.91" (23.1mm)	0.81" (20.57mm)
2L23D7	Plug/Male	1/4"	3/8"	5/8"	Hose Crimp End	2	2.35" (59.7mm)	0.84" (21.3mm)	0.75" (19.05mm)
2L23D9	Plug/Male	1/4"	3/8"	11/16"	Hose Crimp End	2	2.35" (59.7mm)	0.91" (23.1mm)	0.81" (20.57mm)
2L23D11	Plug/Male	1/4"	3/8"	3/4"	Hose Crimp End	2	2.35" (59.7mm)	0.98" (24.9mm)	0.88" (22.35mm)
2L28P13	Plug/Male	1/4"	1/2"	13/16"	Hose Crimp End	2	3.41" (86.6mm)	1.05" (26.7mm)	0.94" (23.88mm)
2L28P15	Plug/Male	1/4"	1/2"	7/8"	Hose Crimp End	2	3.41" (86.6mm)	1.12" (28.4mm)	1.00" (25.40mm)
