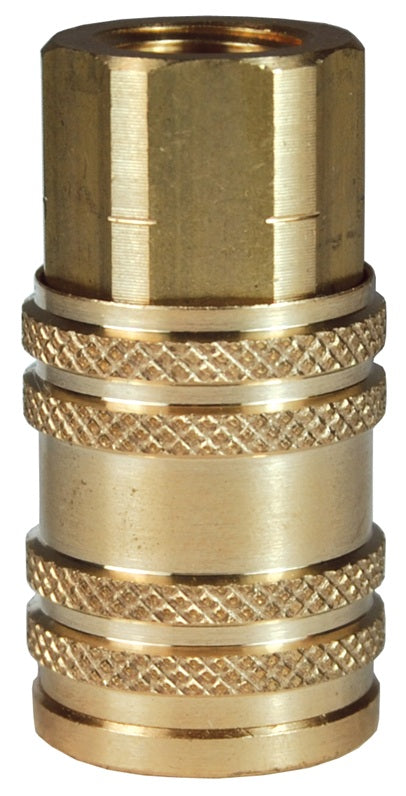

2MF3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 3/8" Female NPT x 1/4" Manual ARO Interchange | Socket | Nitrile Seal | Brass

Save $0.58

$8.61

$8.61 - $8.61

$8.61

$8.03

$8.03 - $8.03

$8.03

Dixon Valve & Coupling
Pneumatic Coupling: M-Series Manual ARO Interchange Coupler (Female Threads)

Quantity

Specifications for Variant SKU: 2MF3-B Dixon
Series:	M-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female ARO 210 QD Interchange, 3/8in Female NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	ARO 210 Parker 50-Series and Amflo Type 'B'

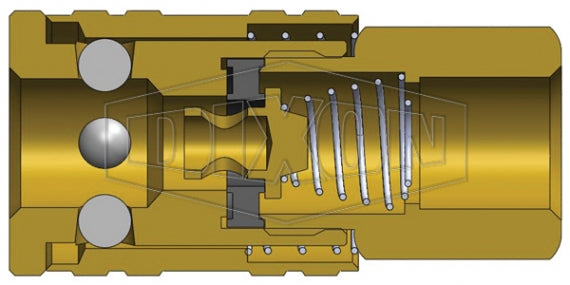

Construction:	Machined components are manufactured using solid bar stock. Stainless steel springs. Carbon steel balls and retaining rings. Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

M-Series \| Manual ARO Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Working Pressure		Burst Pressure
Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:	Brass Coupler & Brass Plug:	Brass Coupler & Steel Plug:
2MF2-B	Socket/Female NPT	1/4"	1/4" - 18 Female	Brass	1.97" (50.0mm)	0.87" (22.0mm)	3/4"	300 PSI (20 bar)	300 PSI (20 bar)	12,700 PSI (876 bar)	12,400 PSI (855 bar)
2MF3-B	Socket/Female	1/4"	3/8" - 18 Female NPT	Brass	2.05" (52.0mm)	0.87" (22.0mm)	13/16"	300 PSI (20 bar)	300 PSI (20 bar)	12,700 PSI (876 bar)	12,400 PSI (855 bar)

M-Series \| ARO Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
M2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.57" (39.9mm)	0.79" (20.1mm)	11/16"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.57" (39.9mm)	0.79" (20.1mm)	11/16"	Auto Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 5,000 PSI (345 bar) Manual Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,700 PSI (876 bar)
M2F3	Plug/Male	1/4"	3/8" - 18 Female NPTF	Steel	1.57" (39.9mm)	1.01" (25.7mm)	7/8"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.82" (46.2mm)	1.01" (25.7mm)	7/8"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 3,300 PSI (228 bar)
