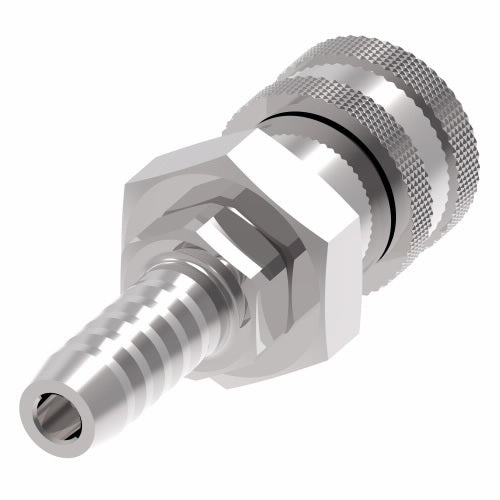

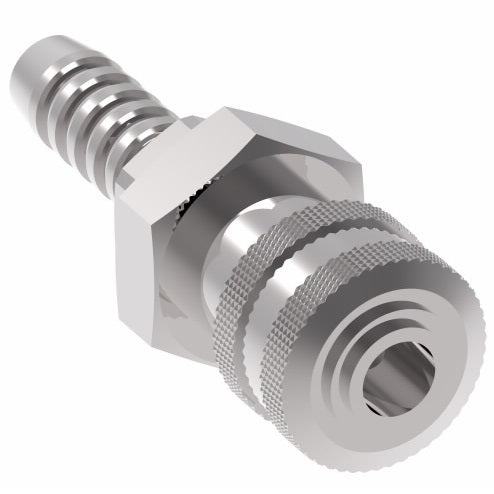

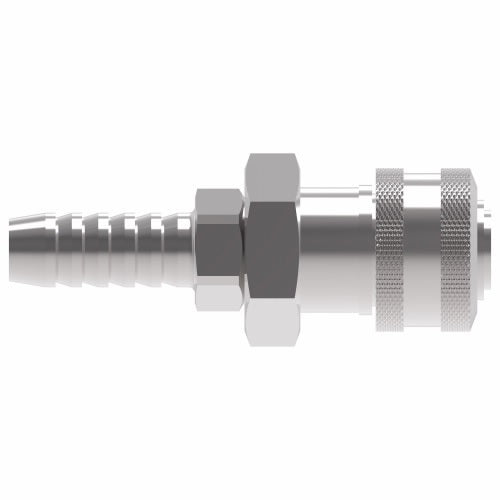

2R195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel
2R195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel
2R195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel
2R195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

2R195 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 5/16" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

$35.96 - $35.96
$35.96
$35.96 - $35.96
$35.96

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.
Specifications for Variant SKU: 2R195 Danfoss
Brand: Hansen
Series: 2RL Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • High Flow capacity.
  • Push to connect with a ring lock sleeve.
  • Ring lock design prevents accidental disconnection.
  • To disconnect rotate sleeve 20 degrees.
Applications & Markets:
  • Shipyards
  • General Pneumatics
  • Mining
  • Marine
Materials:
  • Standard body material: Trivalent Plated Steel
  • Standard seal material: Buna-N
Series Coupling Size Max. Operating Pressure Min. Burst Pressure Rated Flow
2RL 1/4" 20 bar 300 psi 80 bar 1,200 psi 1,350 lpm 48 scfm
3RL 3/8" 20 bar 300 psi 80 bar 1,200 psi 2,250 lpm 80 scfm
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
2RL Series | Socket
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
A B
2R17 Socket/Female 1/4" 1/4" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R195 Socket/Female 1/4" 5/16" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R22 Socket/Female 1/4" 3/8" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2R27 Socket/Female 1/4" 1/2" Hose Barb 1 2.63"
(66.8mm)		 1.06"
(26.9mm)
2RL Series | Plugs
Part Number Coupling Type Body Size Hose ID End Type Figure Dimensions
C D
2L17 Plug/Male 1/4" 1/4" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L195 Plug/Male 1/4" 5/16" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L22 Plug/Male 1/4" 3/8" Hose Barb 2 2.13"
(54.1mm)		 0.50"
(12.7mm)
2L17 Plug/Male 1/4" 1/2" Hose Barb 2 2.5"
(63.5mm)		 0.81"
(20.6mm)
