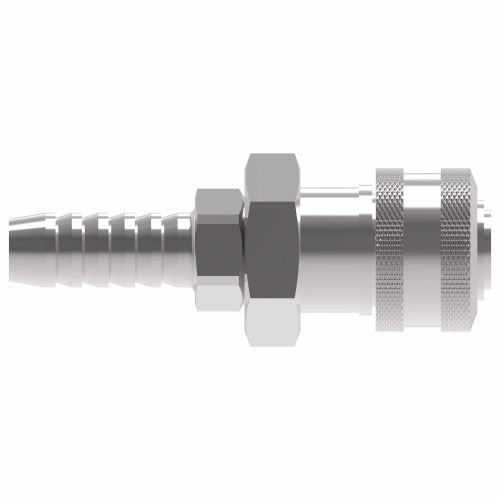

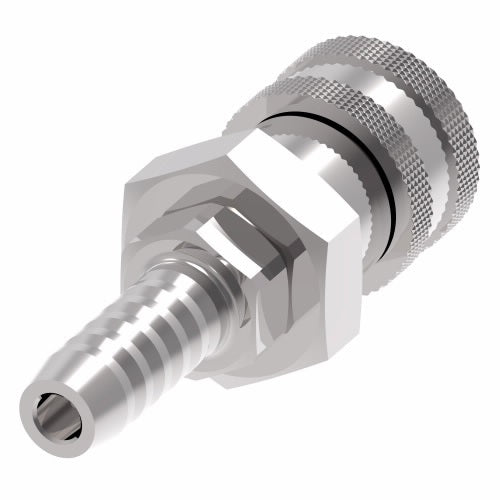

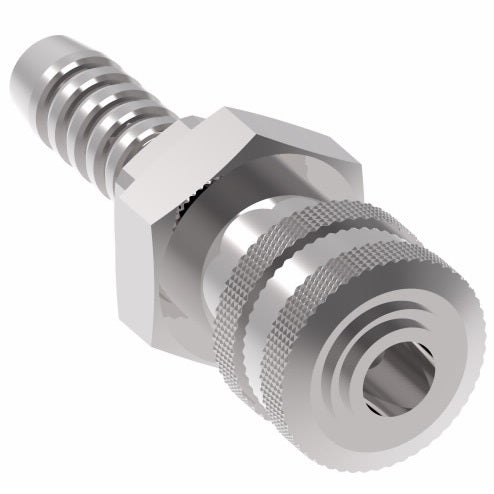

2R22 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

2R22 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 2RL Series | Hose Barb End | 3/8" Hose ID x 1/4" Body Size | Socket | Buna-N Seal | Steel

$43.06 - $43.06

$43.06

$43.06 - $43.06

$43.06

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 2RL Series

Quick Disconnect for Pneumatic Applications.

Danfoss' 2RL/3RL ring lock series quick disconnect pneumatic couplings have a unique interchange which Danfoss designed for use with compressed air.

Specifications for Variant SKU: 2R22 Danfoss
Brand:	Hansen
Series:	2RL Series
Shape (Orientation):	Straight
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Features:	High Flow capacity. Push to connect with a ring lock sleeve. Ring lock design prevents accidental disconnection. To disconnect rotate sleeve 20 degrees.
Applications & Markets:	Shipyards General Pneumatics Mining Marine
Materials:	Standard body material: Trivalent Plated Steel Standard seal material: Buna-N

Series	Coupling Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
2RL	1/4"	20 bar	300 psi	80 bar	1,200 psi	1,350 lpm	48 scfm
3RL	3/8"	20 bar	300 psi	80 bar	1,200 psi	2,250 lpm	80 scfm


Socket/Female (Figure 1)				Plug/Male (Figure 2)
2RL Series \| Socket
Part Number	Coupling Type	Body Size	Hose ID	End Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Figure	A	B
2R17	Socket/Female	1/4"	1/4"	Hose Barb	1	2.63" (66.8mm)	1.06" (26.9mm)
2R195	Socket/Female	1/4"	5/16"	Hose Barb	1	2.63" (66.8mm)	1.06" (26.9mm)
2R22	Socket/Female	1/4"	3/8"	Hose Barb	1	2.63" (66.8mm)	1.06" (26.9mm)
2R27	Socket/Female	1/4"	1/2"	Hose Barb	1	2.63" (66.8mm)	1.06" (26.9mm)
2RL Series \| Plugs
Part Number	Coupling Type	Body Size	Hose ID	End Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Hose ID	End Type	Figure	C	D
2L17	Plug/Male	1/4"	1/4"	Hose Barb	2	2.13" (54.1mm)	0.50" (12.7mm)
2L195	Plug/Male	1/4"	5/16"	Hose Barb	2	2.13" (54.1mm)	0.50" (12.7mm)
2L22	Plug/Male	1/4"	3/8"	Hose Barb	2	2.13" (54.1mm)	0.50" (12.7mm)
2L17	Plug/Male	1/4"	1/2"	Hose Barb	2	2.5" (63.5mm)	0.81" (20.6mm)
