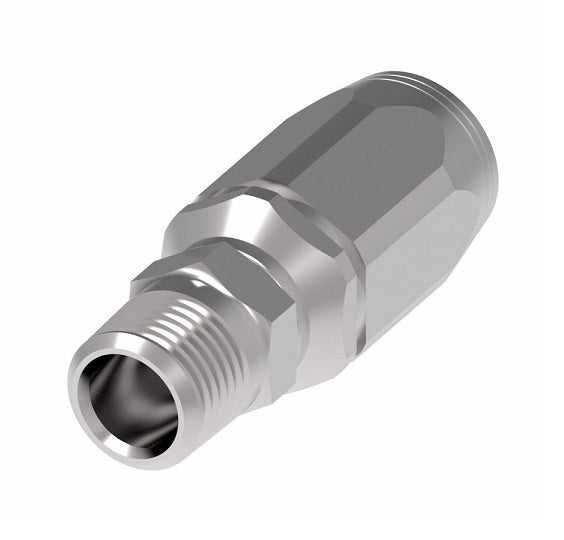

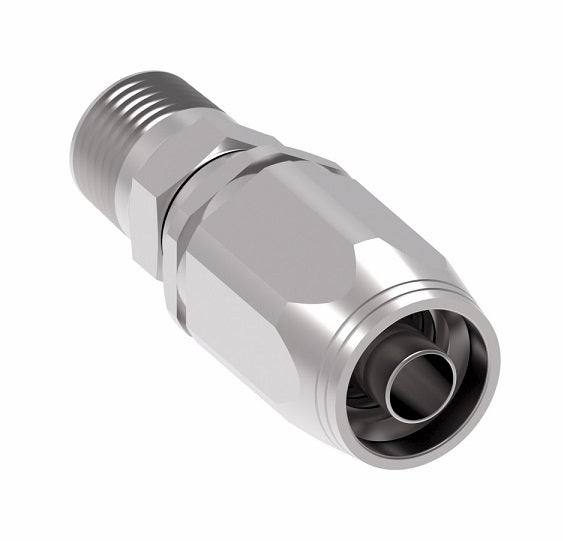

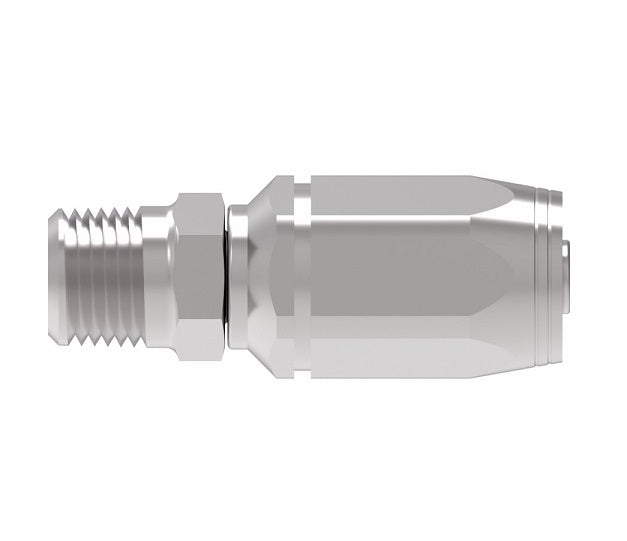

2RA12MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Male Pipe x -16 Reusable Hose End | Steel
2RA12MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Male Pipe x -16 Reusable Hose End | Steel
2RA12MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Male Pipe x -16 Reusable Hose End | Steel
2RA12MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Male Pipe x -16 Reusable Hose End | Steel

2RA12MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -12 Male Pipe x -16 Reusable Hose End | Steel

$77.12 - $77.12
$77.12
$77.12 - $77.12
$77.12

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male Pipe - Straight
Specifications for Variant SKU: 2RA12MP16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 1in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4MP4 4202-4-4S 2RA4 1/4-18 -04 2.50" 1.33" 0.17"
2RA6MP6 4202-6-6S 2RA6 3/8-18 -06 2.75" 1.41" 0.31"
2RA6MP8 4202-6-8S 2RA8 3/8-18 -08 2.84" 1.31" 0.39"
2RA8MP8 4202-8-8S 2RA8 1/2-14 -08 3.09" 1.58" 0.39"
2RA12MP12 4202-12-12S 2RA12 3/4-14 -12 3.61" 1.74" 0.61"
2RA12MP16 4202-16-16S 2RA16 1-11-1/2 -16 4.40" 2.35" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
