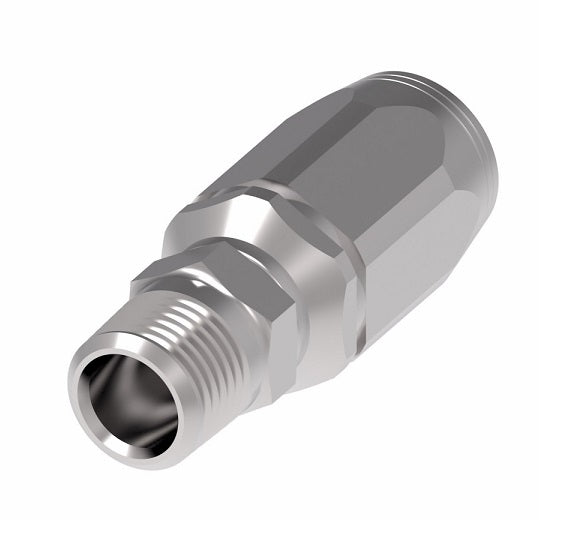

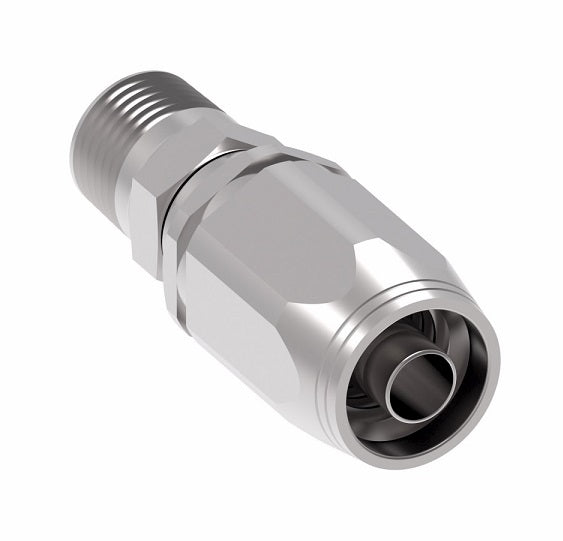

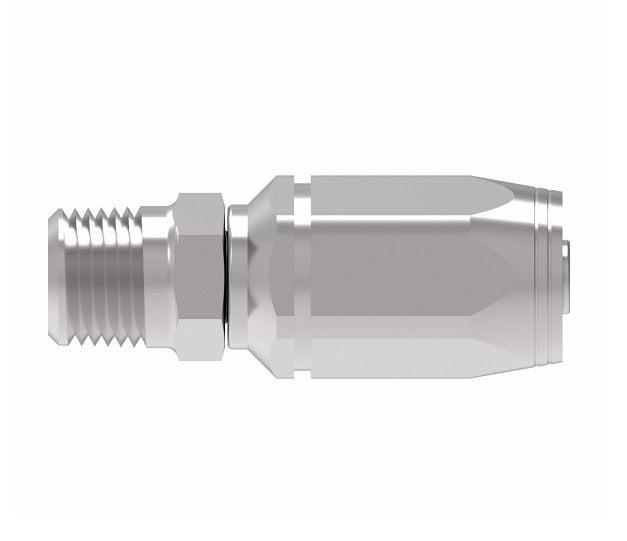

2RA6MP6 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -06 Reusable Hose End | Steel

2RA6MP6 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -06 Reusable Hose End | Steel

Name: 2RA6MP6 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -06 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 2RA6MP6 Danfoss
Price: 27.15 USD
Availability: InStock

$27.15 - $27.15

$27.15

$27.15 - $27.15

$27.15

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male Pipe - Straight

Specifications for Variant SKU: 2RA6MP6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 3/8in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash
2RA4MP4	4202-4-4S	2RA4	1/4-18	-04	2.50"	1.33"	0.17"
2RA6MP6	4202-6-6S	2RA6	3/8-18	-06	2.75"	1.41"	0.31"
2RA6MP8	4202-6-8S	2RA8	3/8-18	-08	2.84"	1.31"	0.39"
2RA8MP8	4202-8-8S	2RA8	1/2-14	-08	3.09"	1.58"	0.39"
2RA12MP12	4202-12-12S	2RA12	3/4-14	-12	3.61"	1.74"	0.61"
2RA12MP16	4202-16-16S	2RA16	1-11-1/2	-16	4.40"	2.35"	0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
