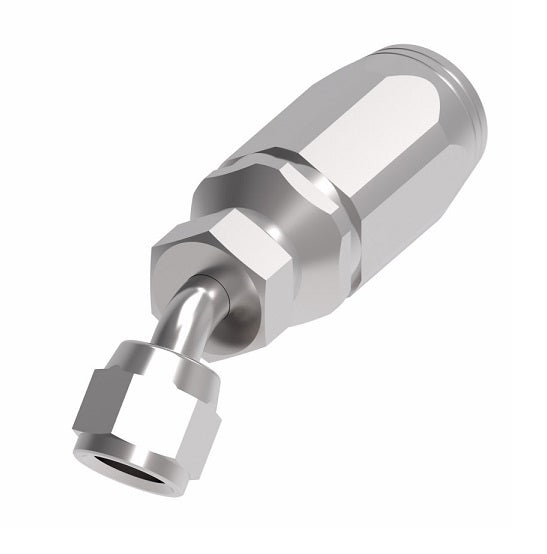

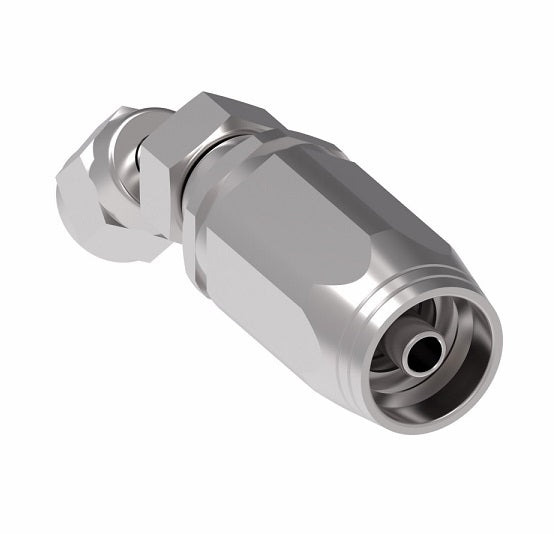

2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

2RA4FJA4 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel

$56.06 - $56.06
$56.06
$56.06 - $56.06
$56.06

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Female 37° JIC Swivel - 45° Elbow
Specifications for Variant SKU: 2RA4FJA4 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female JIC, 1/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
2RA4FJA4 185287-4S 2RA4 7/16-20 -04 2.51" 1.34" 0.17" 0.33"
2RA6FJA6 185287-6S 2RA6 9/16-18 -06 2.82" 1.48" 0.31" 0.39"
2RA8FJA8 185287-8S 2RA8 3/4-16 -08 3.26" 1.75" 0.39" 0.55"
2RA12FJA12 185287-12S 2RA12 1-1/16-12 -12 4.15" 2.28" 0.61" 0.78"
2RA16FJA16 - 2RA16 1-5/16-12 -16 5.03" 2.98" 0.82" 1.07"
