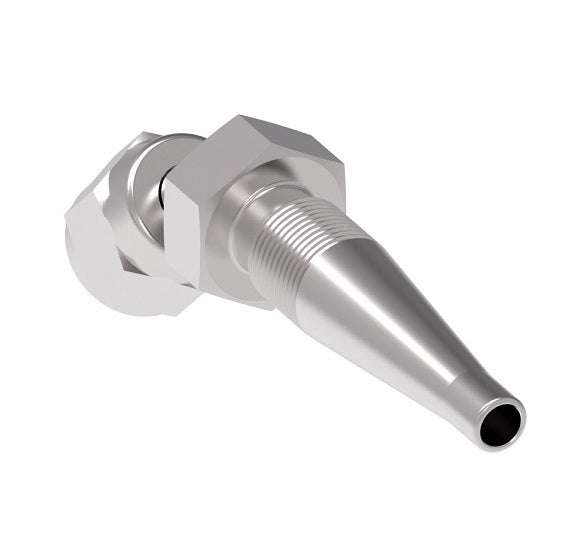

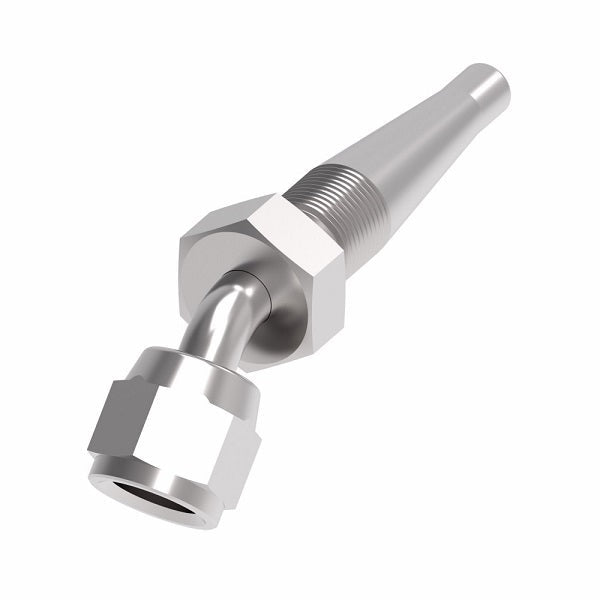

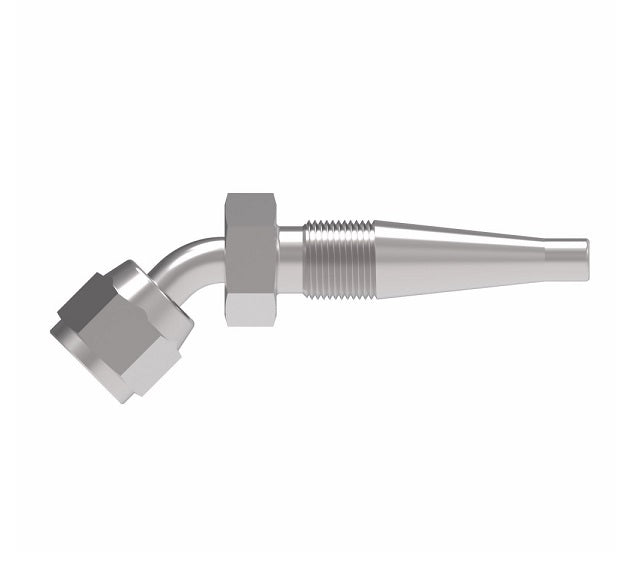

185287-12S Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

185287-12S Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel | Pack of 10

$1,011.64 - $1,011.64

$1,011.64

$1,011.64 - $1,011.64

$1,011.64

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel - 45° Elbow

Package Quantity: 10 Units

Specifications for Variant SKU: 185287-12S Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series \| H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FJA4	185287-4S	1RA4	7/16-20	-04	2.37"	1.33"	0.17"	0.33"
1RA6FJA6	185287-6S	1RA6	9/16-18	-06	2.75"	1.62"	0.31"	0.39"
1RA8FJA8	185287-8S	1RA8	3/4-16	-08	3.24"	1.77"	0.39"	0.55"
-	185287-10S	-	-	-10	-	-	-	-
1RA12FJA12	185287-12S	1RA12	1-1/16-12	-12	4.09"	2.49"	0.61"	0.78"
1RA16FJA16	-	1RA16	1-5/16-12	-16	4.88"	2.75"	0.82"	1.07"
