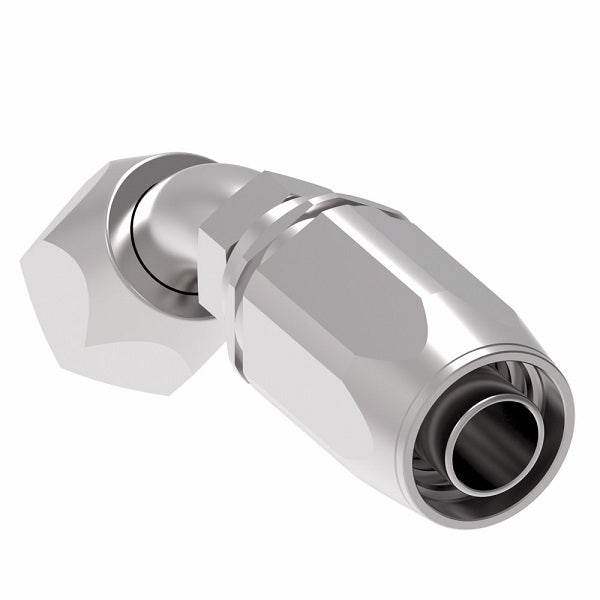

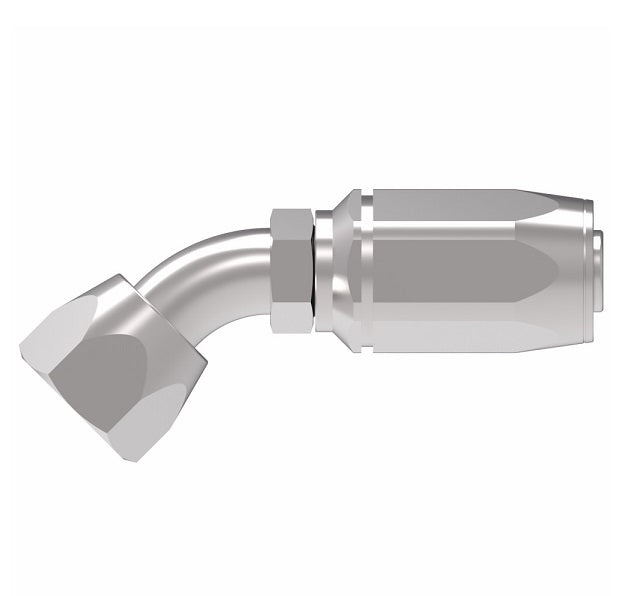

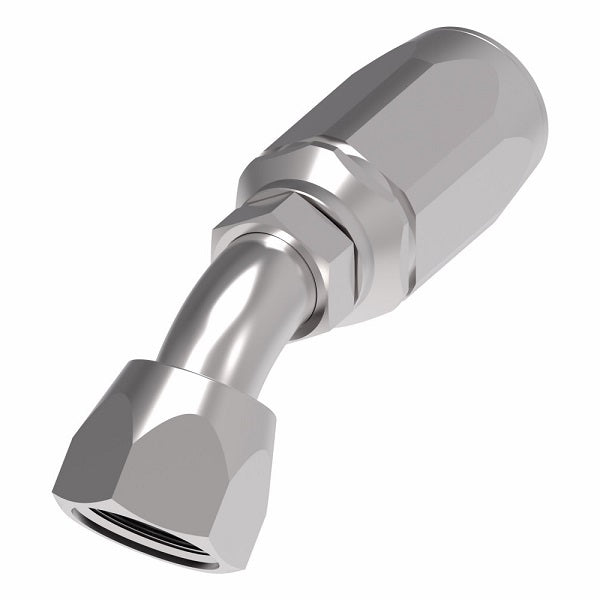

1RA16FJA16 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
1RA16FJA16 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
1RA16FJA16 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel
1RA16FJA16 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

1RA16FJA16 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -16 Female 37° JIC Swivel x -16 Reusable Hose End | Steel

$157.37 - $157.37
$157.37
$157.37 - $157.37
$157.37

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel - 45° Elbow
Specifications for Variant SKU: 1RA16FJA16 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female JIC, 1in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FJA4 185287-4S 1RA4 7/16-20 -04 2.37" 1.33" 0.17" 0.33"
1RA6FJA6 185287-6S 1RA6 9/16-18 -06 2.75" 1.62" 0.31" 0.39"
1RA8FJA8 185287-8S 1RA8 3/4-16 -08 3.24" 1.77" 0.39" 0.55"
- 185287-10S - - -10 - - - -
1RA12FJA12 185287-12S 1RA12 1-1/16-12 -12 4.09" 2.49" 0.61" 0.78"
1RA16FJA16 - 1RA16 1-5/16-12 -16 4.88" 2.75" 0.82" 1.07"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
