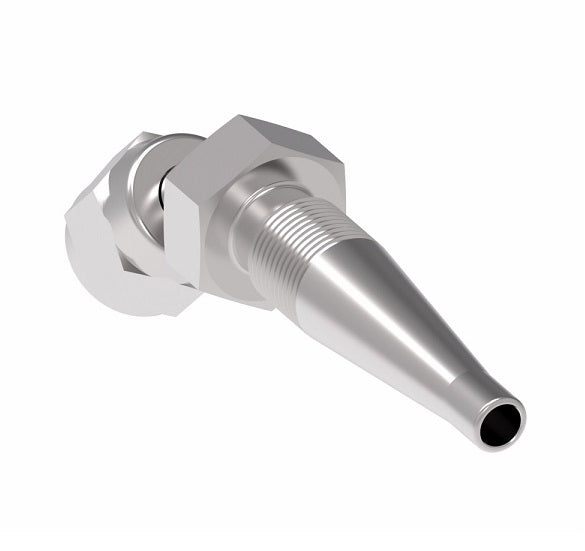

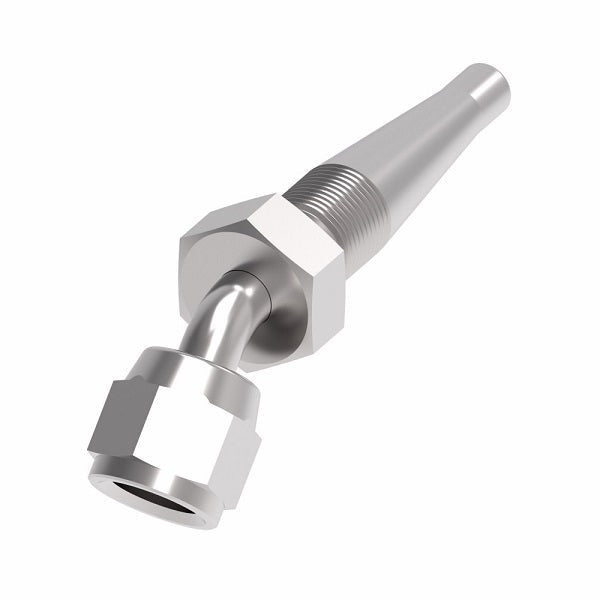

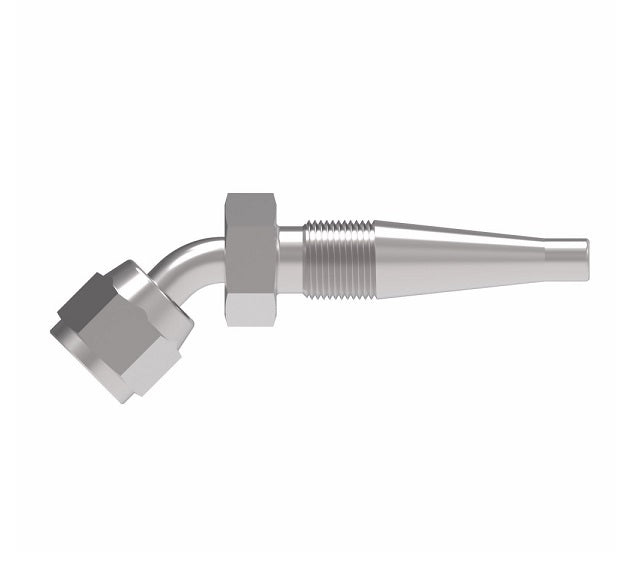

185287-10S Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

185287-10S Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

Name: 185287-10S Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | Nipple Assembly | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 185287-10S Danfoss
Price: 71.97 USD
Availability: InStock

$71.97 - $71.97

$71.97

$71.97 - $71.97

$71.97

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel - 45° Elbow

Quantity

Specifications for Variant SKU: 185287-10S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Female JIC, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H180 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number Steel	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash	H
1RA4FJA4	185287-4S	1RA4	7/16-20	-04	2.37"	1.33"	0.17"	0.33"
1RA6FJA6	185287-6S	1RA6	9/16-18	-06	2.75"	1.62"	0.31"	0.39"
1RA8FJA8	185287-8S	1RA8	3/4-16	-08	3.24"	1.77"	0.39"	0.55"
-	185287-10S	-	-	-10	-	-	-	-
1RA12FJA12	185287-12S	1RA12	1-1/16-12	-12	4.09"	2.49"	0.61"	0.78"
1RA16FJA16	-	1RA16	1-5/16-12	-16	4.88"	2.75"	0.82"	1.07"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
