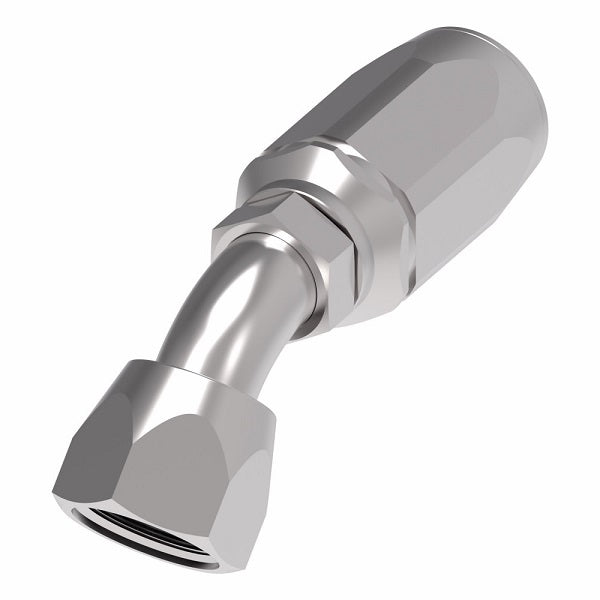

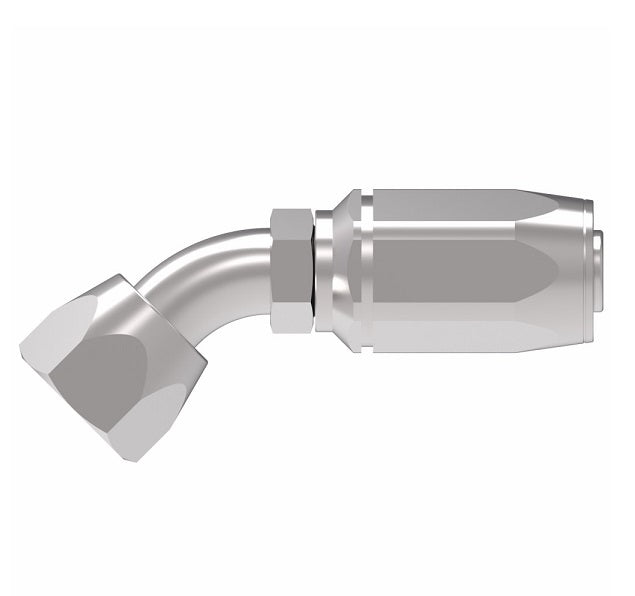

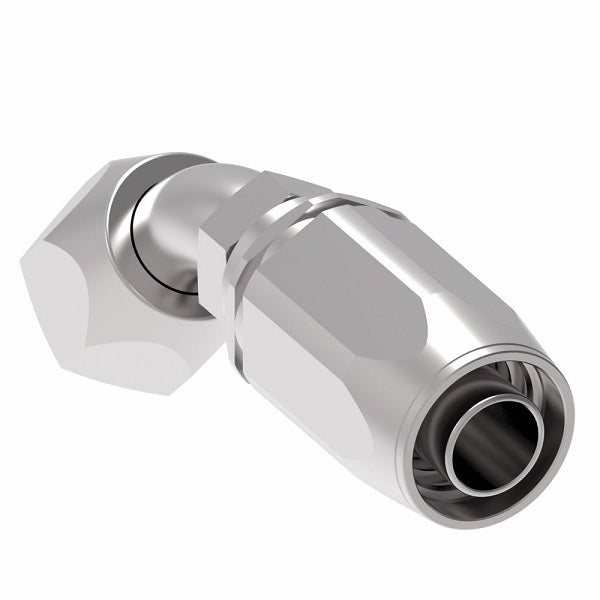

1RA8FJA8 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
1RA8FJA8 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
1RA8FJA8 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel
1RA8FJA8 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

1RA8FJA8 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -08 Female 37° JIC Swivel x -08 Reusable Hose End | Steel

$93.12 - $93.12
$93.12
$93.12 - $93.12
$93.12

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel - 45° Elbow
Specifications for Variant SKU: 1RA8FJA8 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H180 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash H
1RA4FJA4 185287-4S 1RA4 7/16-20 -04 2.37" 1.33" 0.17" 0.33"
1RA6FJA6 185287-6S 1RA6 9/16-18 -06 2.75" 1.62" 0.31" 0.39"
1RA8FJA8 185287-8S 1RA8 3/4-16 -08 3.24" 1.77" 0.39" 0.55"
- 185287-10S - - -10 - - - -
1RA12FJA12 185287-12S 1RA12 1-1/16-12 -12 4.09" 2.49" 0.61" 0.78"
1RA16FJA16 - 1RA16 1-5/16-12 -16 4.88" 2.75" 0.82" 1.07"
