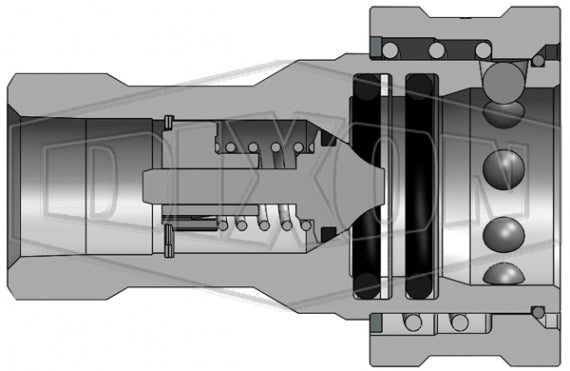

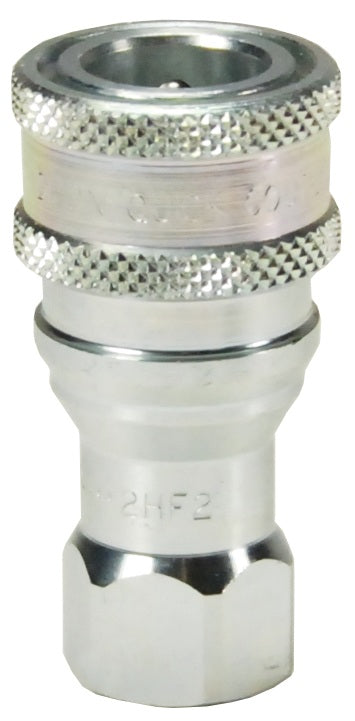

2HOF3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 3/8" Female ORB x 1/4" ISO-B Interchange | Socket | Nitrile Seal | Steel

Save $1.68 Save $1.68
Original price $15.11
Original price $15.11 - Original price $15.11
Original price $15.11
Current price $13.43
$13.43 - $13.43
Current price $13.43

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Interchange Coupler (Female Threads)


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2HOF3 Dixon
Series: H-Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female ISO-B QD Interchange, 3/8in Female O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Meets dimensional requirements of ISO 7241 Series B
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:
  • Machined components are manufactured using solid steel, brass, 303 stainless steel, or 316 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide heavy-duty performance and resist brinelling.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • 1/8" to 1" couplers have a redundant O-ring sealing system with PTFE backup ring. 1-1/4" to 2-1/2" have a Hytrel backup ring.
  • 1/4" to 1" valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Features:
  • Poppet style shut-off valves
Additional Information:
H-Series | ISO-B Interchange Coupler (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Max. Opertaing
Pressure
Burst
Pressure
1HF1 Socket/Female 1/8" 1/8" - 27 Female NPTF Steel 1.90"
(48.3mm)
0.93"
(23.6mm)
9/16" 4000 PSI
(275 bar)
14500 PSI
(1000 bar)
1HF1-B Socket/Female 1/8" 1/8" - 27 Female NPTF Brass 1.90"
(48.3mm)
0.93"
(23.6mm)
9/16" 3000 PSI
(200 bar)
16500 PSI
(450 bar)
1HF1-S Socket/Female 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.90"
(48.3mm)
0.93"
(23.6mm)
9/16" 3500 PSI
(240 bar)
29500 PSI
(2000 bar)
1HF1-SS Socket/Female 1/8" 1/8" - 27 Female NPTF 316 Stainless 1.90"
(48.3mm)
0.93"
(23.6mm)
9/16" 3500 PSI
(240 bar)
29500 PSI
(2000 bar)
1HOF2 Socket/Female 1/8" 7/16" - 20 Female ORB Steel 1.90"
(48.3mm)
0.93"
(23.6mm)
9/16" 4000 PSI
(275 bar)
14500 PSI
(1000 bar)
2HF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
2HF2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 3000 PSI
(200 bar)
15000 PSI
(1000 bar)
2HF2-S Socket/Female 1/4" 1/4" - 18 Female NPTF 303 Stainless 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 3500 PSI
(240 bar)
31500 PSI
(2150 bar)
2HF2-SS Socket/Female 1/4" 1/4" - 18 Female NPTF 316 Stainless 2.26"
(57.4mm)
1.12"
(28.4mm)
3/4" 3500 PSI
(240 bar)
33000 PSI
(2200 bar)
2HBF2 Socket/Female 1/4" 1/4" - 19 Female BSPP Steel 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
2HBF2-B Socket/Female 1/4" 1/4" - 19 Female BSPP Brass 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 3000 PSI
(200 bar)
15000 PSI
(1000 bar)
2HBF2-S Socket/Female 1/4" 1/4" - 19 Female BSPP 303 Stainless 2.26"
(57.4mm)
1.12"
(28.4mm)
7/8" 3500 PSI
(240 bar)
31500 PSI
(2150 bar)
2HBF2-SS Socket/Female 1/4" 1/4" - 19 Female BSPP 316 Stainless 2.26"
(57.4mm<)
1.12"
(28.4mm)
3/4" 3500 PSI
(240 bar)
33000 PSI
(2200 bar)
2HOF3 Socket/Female 1/4" 9/16" - 18 Female ORB Steel 2.29"
(58.2mm)
1.12"
(28.4mm)
13/16" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
3HF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
3HF3-B Socket/Female 3/8" 3/8" - 18 Female NPTF Brass 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 3000 PSI
(200 bar)
12000 PSI
(800 bar)
3HF3-S Socket/Female 3/8" 3/8" - 18 Female NPTF 303 Stainless 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 3500 PSI
(240 bar)
26500 PSI
(450 bar)
3HF3-SS Socket/Female 3/8" 3/8" - 18 Female NPTF 316 Stainless 2.51"
(63.8mm)
1.42"
(36.1mm)
7/8" 3500 PSI
(240 bar)
28000 PSI
(1900 bar)
3HBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
3HBF3-B Socket/Female 3/8" 3/8" - 19 Female BSPP Brass 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 3000 PSI
(200 bar)
12000 PSI
(800 bar)
3HBF3-S Socket/Female 3/8" 3/8" - 19 Female BSPP 303 Stainless 2.51"
(63.8mm)
1.42"
(36.1mm)
1-1/16" 3500 PSI
(240 bar)
26500 PSI
(450 bar)
3HBF3-SS Socket/Female 3/8" 3/8" - 19 Female BSPP 316 Stainless 2.51"
(63.8mm)
1.42"
(36.1mm)
7/8" 3500 PSI
(240 bar)
28000 PSI
(1900 bar)
3HOF4 Socket/Female 3/8" 3/4" - 16 Female ORB Steel 2.62"
(66.5mm)
1.42"
(36.1mm)
1" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
4HF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
4HF4-B Socket/Female 1/2" 1/2" - 14 Female NPTF Brass 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 2500 PSI
(170 bar)
11500 PSI
(750 bar)
4HF4-S Socket/Female 1/2" 1/2" - 14 Female NPTF 303 Stainless 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 3500 PSI
(240 bar)
27500 PSI
(1900 bar)
4HF4-SS Socket/Female 1/2" 1/2" - 14 Female NPTF 316 Stainless 2.86"
(72.6mm)
1.86"
(47.2mm)
1-1/16" 3500 PSI
(240 bar)
22000 PSI
(1500 bar)
4HBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
4HBF4-B Socket/Female 1/2" 1/2" - 14 Female BSPP Brass 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 2500 PSI
(170 bar)
11500 PSI
(750 bar)
4HBF4-S Socket/Female 1/2" 1/2" - 14 Female BSPP 303 Stainless 2.86"
(72.6mm)
1.86"
(47.2mm)
1-5/16" 3500 PSI
(240 bar)
27500 PSI
(1900 bar)
4HBF4-SS Socket/Female 1/2" 1/2" - 14 Female BSPP 316 Stainless 2.86"
(72.6mm)
1.86"
(47.2mm)
1-1/16" 3500 PSI
(240 bar)
22000 PSI
(1500 bar)
4HOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 2.90"
(73.7mm)
1.86"
(47.2mm)
1-1/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
6HF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
6HF6-B Socket/Female 3/4" 3/4" - 14 Female NPTF Brass 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 2000 PSI
(138 bar)
12000 PSI
(800 bar)
6HF6-S Socket/Female 3/4" 3/4" - 14 Female NPTF 303 Stainless 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 3000 PSI
(200 bar)
16000 PSI
(1100 bar)
6HF6-SS Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 3000 PSI
(200 bar)
21500 PSI
(1450 bar)
6HBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
6HBF6-B Socket/Female 3/4" 3/4" - 14 Female BSPP Brass 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 2000 PSI
(138 bar)
12000 PSI
(800 bar)
6HBF6-S Socket/Female 3/4" 3/4" - 14 Female BSPP 303 Stainless 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 3000 PSI
(200 bar)
16000 PSI
(1100 bar)
6HBF6-SS Socket/Female 3/4" 3/4" - 14 Female BSPP 316 Stainless 3.55"
(90.2mm)
2.22"
(56.4mm)
1-5/16" 3000 PSI
(200 bar)
21500 PSI
(1450 bar)
6HOF6 Socket/Female 3/4" 1-1/16" - 12 Female ORB Steel 3.69"
(93.7mm)
2.22"
(56.4mm)
1-5/16" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
8HF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
8HF8-B Socket/Female 1" 1" - 11-1/2 Female NPTF Brass 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 1500 PSI
(100 bar)
8500 PSI
(600 bar)
8HF8-S Socket/Female 1" 1" - 11-1/2 Female NPTF 303 Stainless 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
8HF8-SS Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
8HBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
8HBF8-B Socket/Female 1" 1" - 11 Female BSPP Brass 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 1500 PSI
(100 bar)
8500 PSI
(600 bar)
8HBF8-S Socket/Female 1" 1" - 11 Female BSPP 303 Stainless 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
8HBF8-SS Socket/Female 1" 1" - 11 Female BSPP 316 Stainless 4.13"
(104.9mm)
2.49"
(63.2mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
8HOF8 Socket/Female 1" 1-5/16" - 12 Female ORB Steel 4.19"
(106.3mm)
2.49"
(63.2mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H-Series | ISO-B Interchange Plug (Female Threads)
Part
Number
Coupling
Type
Body
Size
Threads Material Length Max.
OD
Hex Max. Opertaing
Pressure
Burst
Pressure
H1F1 Plug/Male 1/8" 1/8" - 27 Female NPTF Steel 1.28"
(32.5mm)
0.65"
(16.5mm)
9/16" 4000 PSI
(275 bar)
14500 PSI
(1000 bar)
H1F1-B Plug/Male 1/8" 1/8" - 27 Female NPTF Brass 1.28"
(32.5mm)
0.65"
(16.5mm)
9/16" 3000 PSI
(200 bar)
16500 PSI
(450 bar)
H1F1-S Plug/Male 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.28"
(32.5mm)
0.65"
(16.5mm)
9/16" 3500 PSI
(240 bar)
29500 PSI
(2000 bar)
H1F1-SS Plug/Male 1/8" 1/8" - 27 Female NPTF 316 Stainless 1.28"
(32.5mm)
0.65"
(16.5mm)
9/16" 3500 PSI
(240 bar)
29500 PSI
(2000 bar)
H1OF2 Plug/Male 1/8" 7/16" - 20 Female ORB Steel 1.28"
(32.5mm)
0.65"
(16.5mm)
9/16" 4000 PSI
(275 bar)
14500 PSI
(1000 bar)
H2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
H2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3000 PSI
(200 bar)
15000 PSI
(1000 bar)
H2F2-S Plug/Male 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3500 PSI
(240 bar)
31500 PSI
(2150 bar)
H2F2-SS Plug/Male 1/4" 1/4" - 18 Female NPTF 316 Stainless 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3500 PSI
(240 bar)
33000 PSI
(2200 bar)
H2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
H2BF2-B Plug/Male 1/4" 1/4" - 19 Female BSPP Brass 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3000 PSI
(200 bar)
15000 PSI
(1000 bar)
H2BF2-S Plug/Male 1/4" 1/4" - 19 Female BSPP 303 Stainless 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3500 PSI
(240 bar)
31500 PSI
(2150 bar)
H2BF2-SS Plug/Male 1/4" 1/4" - 19 Female BSPP 316 Stainless 1.55"
(39.4mm)
0.83"
(21.1mm)
3/4" 3500 PSI
(240 bar)
33000 PSI
(2200 bar)
H2OF3 Plug/Male 1/4" 9/16" - 18 Female ORB Steel 1.61"
(40.9mm)
0.90"
(22.9mm)
13/16" 5000 PSI
(345 bar)
22500 PSI
(1550 bar)
H3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3000 PSI
(200 bar)
12000 PSI
(800 bar)
H3F3-S Plug/Male 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3500 PSI
(240 bar)
26500 PSI
(450 bar)
H3F3-SS Plug/Male 3/8" 3/8" - 18 Female NPTF 316 Stainless 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3500 PSI
(240 bar)
28000 PSI
(1900 bar)
H3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H3BF3-B Plug/Male 3/8" 3/8" - 19 Female BSPP Brass 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3000 PSI
(200 bar)
12000 PSI
(800 bar)
H3BF3-S Plug/Male 3/8" 3/8" - 19 Female BSPP 303 Stainless 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3500 PSI
(240 bar)
26500 PSI
(450 bar)
H3BF3-SS Plug/Male 3/8" 3/8" - 19 Female BSPP 316 Stainless 1.70"
(43.2mm)
0.97"
(24.6mm)
7/8" 3500 PSI
(240 bar)
28000 PSI
(1900 bar)
H3OF3 Plug/Male 3/8" 3/4" - 16 Female ORB Steel 1.79"
(45.5mm)
1.10"
(27.9mm)
1" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 2500 PSI
(170 bar)
11500 PSI
(750 bar)
H4F4-S Plug/Male 1/2" 1/2" - 14 Female NPTF 303 Stainless 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 3500 PSI
(240 bar)
27500 PSI
(1900 bar)
H4F4-SS Plug/Male 1/2" 1/2" - 14 Female NPTF 316 Stainless 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 3500 PSI
(240 bar)
22000 PSI
(1500 bar)
H4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H4BF4-B Plug/Male 1/2" 1/2" - 14 Female BSPP Brass 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 2500 PSI
(170 bar)
11500 PSI
(750 bar)
H4BF4-S Plug/Male 1/2" 1/2" - 14 Female BSPP 303 Stainless 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 3500 PSI
(240 bar)
27500 PSI
(1900 bar)
H4BF4-SS Plug/Male 1/2" 1/2" - 14 Female BSPP 316 Stainless 1.94"
(49.3mm)
1.17"
(29.7mm)
1-1/16" 3500 PSI
(240 bar)
22000 PSI
(1500 bar)
H4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 1.94"
(49.3mm)
1.24"
(31.5mm)
1-1/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H6F6-B Plug/Male 3/4" 3/4" - 14 Female NPTF Brass 2.44"
(61.2mm<)
1.50"
(36.6mm)
1-3/8" 2000 PSI
(138 bar)
12000 PSI
(800 bar)
H6F6-S Plug/Male 3/4" 3/4" - 14 Female NPTF 303 Stainless 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 3000 PSI
(200 bar)
16000 PSI
(1100 bar)
H6F6-SS Plug/Male 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 3000 PSI
(200 bar)
21500 PSI
(1450 bar)
H6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H6BF6-B Plug/Male 3/4" 3/4" - 14 Female BSPP Brass 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 2000 PSI
(138 bar)
12000 PSI
(800 bar)
H6BF6-S Plug/Male 3/4" 3/4" - 14 Female BSPP 303 Stainless 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 3000 PSI
(200 bar)
16000 PSI
(1100 bar)
H6BF6-SS Plug/Male 3/4" 3/4" - 14 Female BSPP 316 Stainless 2.44"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 3000 PSI
(200 bar)
21500 PSI
(1450 bar)
H6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 2.58"
(61.2mm)
1.50"
(36.6mm)
1-3/8" 4000 PSI
(275 bar)
16500 PSI
(450 bar)
H8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H8F8-B Plug/Male 1" 1" - 11-1/2 Female NPTF Brass 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 1500 PSI
(100 bar)
8500 PSI
(600 bar)
H8F8-S Plug/Male 1" 1" - 11-1/2 Female NPTF 303 Stainless 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
H8F8-SS Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
H8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
H8BF8-B Plug/Male 1" 1" - 11 Female BSPP Brass 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 1500 PSI
(100 bar)
8500 PSI
(600 bar)
H8BF8-S Plug/Male 1" 1" - 11 Female BSPP 303 Stainless 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
H8BF8-SS Plug/Male 1" 1" - 11 Female BSPP 316 Stainless 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 2000 PSI
(138 bar)
15000 PSI
(1000 bar)
H8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 2.87"
(72.9mm)
1.79"
(45.5mm)
1-5/8" 4000 PSI
(275 bar)
16000 PSI
(1100 bar)
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
