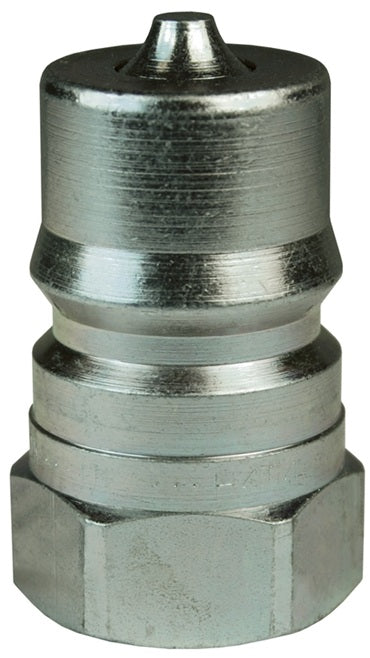

Hydraulic Coupling: H-Series ISO-B Interchange Plug (Female Threads)

Quantity

Specifications for Variant SKU: H3OF4 Dixon
Series:	H-Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male ISO-B QD Interchange, 1/2in Female O-Ring Boss
Material(s):	Steel

Compatibility & Interchange:	Meets dimensional requirements of ISO 7241 Series B Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:	Machined components are manufactured using solid steel, brass, 303 stainless steel, or 316 stainless steel bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome. Steel coupler sleeves are hardened to resist deformation and maximize service life. Steel plugs are hardened to provide heavy-duty performance and resist brinelling.
Features:	Poppet style shut-off valves Designed to prevent fluid loss when disconnected.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

H-Series \| ISO-B Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex	Max. Opertaing Pressure	Burst Pressure
H1F1	Plug/Male	1/8"	1/8" - 27 Female NPTF	Steel	1.28" (32.5mm)	0.65" (16.5mm)	9/16"	4000 PSI (275 bar)	14500 PSI (1000 bar)
H1F1-B	Plug/Male	1/8"	1/8" - 27 Female NPTF	Brass	1.28" (32.5mm)	0.65" (16.5mm)	9/16"	3000 PSI (200 bar)	16500 PSI (450 bar)
H1F1-S	Plug/Male	1/8"	1/8" - 27 Female NPTF	303 Stainless	1.28" (32.5mm)	0.65" (16.5mm)	9/16"	3500 PSI (240 bar)	29500 PSI (2000 bar)
H1F1-SS	Plug/Male	1/8"	1/8" - 27 Female NPTF	316 Stainless	1.28" (32.5mm)	0.65" (16.5mm)	9/16"	3500 PSI (240 bar)	29500 PSI (2000 bar)
H1OF2	Plug/Male	1/8"	7/16" - 20 Female ORB	Steel	1.28" (32.5mm)	0.65" (16.5mm)	9/16"	4000 PSI (275 bar)	14500 PSI (1000 bar)
H2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	5000 PSI (345 bar)	22500 PSI (1550 bar)
H2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3000 PSI (200 bar)	15000 PSI (1000 bar)
H2F2-S	Plug/Male	1/4"	1/4" - 18 Female NPTF	303 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3500 PSI (240 bar)	31500 PSI (2150 bar)
H2F2-SS	Plug/Male	1/4"	1/4" - 18 Female NPTF	316 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3500 PSI (240 bar)	33000 PSI (2200 bar)
H2BF2	Plug/Male	1/4"	1/4" - 19 Female BSPP	Steel	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	5000 PSI (345 bar)	22500 PSI (1550 bar)
H2BF2-B	Plug/Male	1/4"	1/4" - 19 Female BSPP	Brass	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3000 PSI (200 bar)	15000 PSI (1000 bar)
H2BF2-S	Plug/Male	1/4"	1/4" - 19 Female BSPP	303 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3500 PSI (240 bar)	31500 PSI (2150 bar)
H2BF2-SS	Plug/Male	1/4"	1/4" - 19 Female BSPP	316 Stainless	1.55" (39.4mm)	0.83" (21.1mm)	3/4"	3500 PSI (240 bar)	33000 PSI (2200 bar)
H2OF3	Plug/Male	1/4"	9/16" - 18 Female ORB	Steel	1.61" (40.9mm)	0.90" (22.9mm)	13/16"	5000 PSI (345 bar)	22500 PSI (1550 bar)
H3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	4000 PSI (275 bar)	16500 PSI (450 bar)
H3F3-B	Plug/Male	3/8"	3/8" - 18 Female NPTF	Brass	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3000 PSI (200 bar)	12000 PSI (800 bar)
H3F3-S	Plug/Male	3/8"	3/8" - 18 Female NPTF	303 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3500 PSI (240 bar)	26500 PSI (450 bar)
H3F3-SS	Plug/Male	3/8"	3/8" - 18 Female NPTF	316 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3500 PSI (240 bar)	28000 PSI (1900 bar)
H3BF3	Plug/Male	3/8"	3/8" - 19 Female BSPP	Steel	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	4000 PSI (275 bar)	16500 PSI (450 bar)
H3BF3-B	Plug/Male	3/8"	3/8" - 19 Female BSPP	Brass	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3000 PSI (200 bar)	12000 PSI (800 bar)
H3BF3-S	Plug/Male	3/8"	3/8" - 19 Female BSPP	303 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3500 PSI (240 bar)	26500 PSI (450 bar)
H3BF3-SS	Plug/Male	3/8"	3/8" - 19 Female BSPP	316 Stainless	1.70" (43.2mm)	0.97" (24.6mm)	7/8"	3500 PSI (240 bar)	28000 PSI (1900 bar)
H3OF3	Plug/Male	3/8"	3/4" - 16 Female ORB	Steel	1.79" (45.5mm)	1.10" (27.9mm)	1"	4000 PSI (275 bar)	16500 PSI (450 bar)
H4F4	Plug/Male	1/2"	1/2" - 14 Female NPTF	Steel	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	4000 PSI (275 bar)	16000 PSI (1100 bar)
H4F4-B	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	2500 PSI (170 bar)	11500 PSI (750 bar)
H4F4-S	Plug/Male	1/2"	1/2" - 14 Female NPTF	303 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	3500 PSI (240 bar)	27500 PSI (1900 bar)
H4F4-SS	Plug/Male	1/2"	1/2" - 14 Female NPTF	316 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	3500 PSI (240 bar)	22000 PSI (1500 bar)
H4BF4	Plug/Male	1/2"	1/2" - 14 Female BSPP	Steel	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	4000 PSI (275 bar)	16000 PSI (1100 bar)
H4BF4-B	Plug/Male	1/2"	1/2" - 14 Female BSPP	Brass	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	2500 PSI (170 bar)	11500 PSI (750 bar)
H4BF4-S	Plug/Male	1/2"	1/2" - 14 Female BSPP	303 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	3500 PSI (240 bar)	27500 PSI (1900 bar)
H4BF4-SS	Plug/Male	1/2"	1/2" - 14 Female BSPP	316 Stainless	1.94" (49.3mm)	1.17" (29.7mm)	1-1/16"	3500 PSI (240 bar)	22000 PSI (1500 bar)
H4OF5	Plug/Male	1/2"	7/8" - 14 Female ORB	Steel	1.94" (49.3mm)	1.24" (31.5mm)	1-1/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
H6F6	Plug/Male	3/4"	3/4" - 14 Female NPTF	Steel	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	4000 PSI (275 bar)	16500 PSI (450 bar)
H6F6-B	Plug/Male	3/4"	3/4" - 14 Female NPTF	Brass	2.44" (61.2mm<)	1.50" (36.6mm)	1-3/8"	2000 PSI (138 bar)	12000 PSI (800 bar)
H6F6-S	Plug/Male	3/4"	3/4" - 14 Female NPTF	303 Stainless	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	3000 PSI (200 bar)	16000 PSI (1100 bar)
H6F6-SS	Plug/Male	3/4"	3/4" - 14 Female NPTF	316 Stainless	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	3000 PSI (200 bar)	21500 PSI (1450 bar)
H6BF6	Plug/Male	3/4"	3/4" - 14 Female BSPP	Steel	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	4000 PSI (275 bar)	16500 PSI (450 bar)
H6BF6-B	Plug/Male	3/4"	3/4" - 14 Female BSPP	Brass	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	2000 PSI (138 bar)	12000 PSI (800 bar)
H6BF6-S	Plug/Male	3/4"	3/4" - 14 Female BSPP	303 Stainless	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	3000 PSI (200 bar)	16000 PSI (1100 bar)
H6BF6-SS	Plug/Male	3/4"	3/4" - 14 Female BSPP	316 Stainless	2.44" (61.2mm)	1.50" (36.6mm)	1-3/8"	3000 PSI (200 bar)	21500 PSI (1450 bar)
H6OF6	Plug/Male	3/4"	1-1/16" - 12 Female ORB	Steel	2.58" (61.2mm)	1.50" (36.6mm)	1-3/8"	4000 PSI (275 bar)	16500 PSI (450 bar)
H8F8	Plug/Male	1"	1" - 11-1/2 Female NPTF	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
H8F8-B	Plug/Male	1"	1" - 11-1/2 Female NPTF	Brass	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
H8F8-S	Plug/Male	1"	1" - 11-1/2 Female NPTF	303 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
H8F8-SS	Plug/Male	1"	1" - 11-1/2 Female NPTF	316 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
H8BF8	Plug/Male	1"	1" - 11 Female BSPP	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
H8BF8-B	Plug/Male	1"	1" - 11 Female BSPP	Brass	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
H8BF8-S	Plug/Male	1"	1" - 11 Female BSPP	303 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
H8BF8-SS	Plug/Male	1"	1" - 11 Female BSPP	316 Stainless	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
H8OF8	Plug/Male	1"	1-5/16" - 12 Female ORB	Steel	2.87" (72.9mm)	1.79" (45.5mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)

H-Series \| ISO-B Interchange Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Max. Opertaing Pressure	Burst Pressure
1HF1	Socket/Female	1/8"	1/8" - 27 Female NPTF	Steel	1.90" (48.3mm)	0.93" (23.6mm)	9/16"	4000 PSI (275 bar)	14500 PSI (1000 bar)
1HF1-B	Socket/Female	1/8"	1/8" - 27 Female NPTF	Brass	1.90" (48.3mm)	0.93" (23.6mm)	9/16"	3000 PSI (200 bar)	16500 PSI (450 bar)
1HF1-S	Socket/Female	1/8"	1/8" - 27 Female NPTF	303 Stainless	1.90" (48.3mm)	0.93" (23.6mm)	9/16"	3500 PSI (240 bar)	29500 PSI (2000 bar)
1HF1-SS	Socket/Female	1/8"	1/8" - 27 Female NPTF	316 Stainless	1.90" (48.3mm)	0.93" (23.6mm)	9/16"	3500 PSI (240 bar)	29500 PSI (2000 bar)
1HOF2	Socket/Female	1/8"	7/16" - 20 Female ORB	Steel	1.90" (48.3mm)	0.93" (23.6mm)	9/16"	4000 PSI (275 bar)	14500 PSI (1000 bar)
2HF2	Socket/Female	1/4"	1/4" - 18 Female NPTF	Steel	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	5000 PSI (345 bar)	22500 PSI (1550 bar)
2HF2-B	Socket/Female	1/4"	1/4" - 18 Female NPTF	Brass	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	3000 PSI (200 bar)	15000 PSI (1000 bar)
2HF2-S	Socket/Female	1/4"	1/4" - 18 Female NPTF	303 Stainless	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	3500 PSI (240 bar)	31500 PSI (2150 bar)
2HF2-SS	Socket/Female	1/4"	1/4" - 18 Female NPTF	316 Stainless	2.26" (57.4mm)	1.12" (28.4mm)	3/4"	3500 PSI (240 bar)	33000 PSI (2200 bar)
2HBF2	Socket/Female	1/4"	1/4" - 19 Female BSPP	Steel	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	5000 PSI (345 bar)	22500 PSI (1550 bar)
2HBF2-B	Socket/Female	1/4"	1/4" - 19 Female BSPP	Brass	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	3000 PSI (200 bar)	15000 PSI (1000 bar)
2HBF2-S	Socket/Female	1/4"	1/4" - 19 Female BSPP	303 Stainless	2.26" (57.4mm)	1.12" (28.4mm)	7/8"	3500 PSI (240 bar)	31500 PSI (2150 bar)
2HBF2-SS	Socket/Female	1/4"	1/4" - 19 Female BSPP	316 Stainless	2.26" (57.4mm<)	1.12" (28.4mm)	3/4"	3500 PSI (240 bar)	33000 PSI (2200 bar)
2HOF3	Socket/Female	1/4"	9/16" - 18 Female ORB	Steel	2.29" (58.2mm)	1.12" (28.4mm)	13/16"	5000 PSI (345 bar)	22500 PSI (1550 bar)
3HF3	Socket/Female	3/8"	3/8" - 18 Female NPTF	Steel	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (450 bar)
3HF3-B	Socket/Female	3/8"	3/8" - 18 Female NPTF	Brass	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	3000 PSI (200 bar)	12000 PSI (800 bar)
3HF3-S	Socket/Female	3/8"	3/8" - 18 Female NPTF	303 Stainless	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	3500 PSI (240 bar)	26500 PSI (450 bar)
3HF3-SS	Socket/Female	3/8"	3/8" - 18 Female NPTF	316 Stainless	2.51" (63.8mm)	1.42" (36.1mm)	7/8"	3500 PSI (240 bar)	28000 PSI (1900 bar)
3HBF3	Socket/Female	3/8"	3/8" - 19 Female BSPP	Steel	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	4000 PSI (275 bar)	16500 PSI (450 bar)
3HBF3-B	Socket/Female	3/8"	3/8" - 19 Female BSPP	Brass	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	3000 PSI (200 bar)	12000 PSI (800 bar)
3HBF3-S	Socket/Female	3/8"	3/8" - 19 Female BSPP	303 Stainless	2.51" (63.8mm)	1.42" (36.1mm)	1-1/16"	3500 PSI (240 bar)	26500 PSI (450 bar)
3HBF3-SS	Socket/Female	3/8"	3/8" - 19 Female BSPP	316 Stainless	2.51" (63.8mm)	1.42" (36.1mm)	7/8"	3500 PSI (240 bar)	28000 PSI (1900 bar)
3HOF4	Socket/Female	3/8"	3/4" - 16 Female ORB	Steel	2.62" (66.5mm)	1.42" (36.1mm)	1"	4000 PSI (275 bar)	16500 PSI (450 bar)
4HF4	Socket/Female	1/2"	1/2" - 14 Female NPTF	Steel	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	4000 PSI (275 bar)	16000 PSI (1100 bar)
4HF4-B	Socket/Female	1/2"	1/2" - 14 Female NPTF	Brass	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	2500 PSI (170 bar)	11500 PSI (750 bar)
4HF4-S	Socket/Female	1/2"	1/2" - 14 Female NPTF	303 Stainless	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	3500 PSI (240 bar)	27500 PSI (1900 bar)
4HF4-SS	Socket/Female	1/2"	1/2" - 14 Female NPTF	316 Stainless	2.86" (72.6mm)	1.86" (47.2mm)	1-1/16"	3500 PSI (240 bar)	22000 PSI (1500 bar)
4HBF4	Socket/Female	1/2"	1/2" - 14 Female BSPP	Steel	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	4000 PSI (275 bar)	16000 PSI (1100 bar)
4HBF4-B	Socket/Female	1/2"	1/2" - 14 Female BSPP	Brass	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	2500 PSI (170 bar)	11500 PSI (750 bar)
4HBF4-S	Socket/Female	1/2"	1/2" - 14 Female BSPP	303 Stainless	2.86" (72.6mm)	1.86" (47.2mm)	1-5/16"	3500 PSI (240 bar)	27500 PSI (1900 bar)
4HBF4-SS	Socket/Female	1/2"	1/2" - 14 Female BSPP	316 Stainless	2.86" (72.6mm)	1.86" (47.2mm)	1-1/16"	3500 PSI (240 bar)	22000 PSI (1500 bar)
4HOF5	Socket/Female	1/2"	7/8" - 14 Female ORB	Steel	2.90" (73.7mm)	1.86" (47.2mm)	1-1/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
6HF6	Socket/Female	3/4"	3/4" - 14 Female NPTF	Steel	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	4000 PSI (275 bar)	16500 PSI (450 bar)
6HF6-B	Socket/Female	3/4"	3/4" - 14 Female NPTF	Brass	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	2000 PSI (138 bar)	12000 PSI (800 bar)
6HF6-S	Socket/Female	3/4"	3/4" - 14 Female NPTF	303 Stainless	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	3000 PSI (200 bar)	16000 PSI (1100 bar)
6HF6-SS	Socket/Female	3/4"	3/4" - 14 Female NPTF	316 Stainless	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	3000 PSI (200 bar)	21500 PSI (1450 bar)
6HBF6	Socket/Female	3/4"	3/4" - 14 Female BSPP	Steel	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	4000 PSI (275 bar)	16500 PSI (450 bar)
6HBF6-B	Socket/Female	3/4"	3/4" - 14 Female BSPP	Brass	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	2000 PSI (138 bar)	12000 PSI (800 bar)
6HBF6-S	Socket/Female	3/4"	3/4" - 14 Female BSPP	303 Stainless	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	3000 PSI (200 bar)	16000 PSI (1100 bar)
6HBF6-SS	Socket/Female	3/4"	3/4" - 14 Female BSPP	316 Stainless	3.55" (90.2mm)	2.22" (56.4mm)	1-5/16"	3000 PSI (200 bar)	21500 PSI (1450 bar)
6HOF6	Socket/Female	3/4"	1-1/16" - 12 Female ORB	Steel	3.69" (93.7mm)	2.22" (56.4mm)	1-5/16"	4000 PSI (275 bar)	16500 PSI (450 bar)
8HF8	Socket/Female	1"	1" - 11-1/2 Female NPTF	Steel	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
8HF8-B	Socket/Female	1"	1" - 11-1/2 Female NPTF	Brass	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
8HF8-S	Socket/Female	1"	1" - 11-1/2 Female NPTF	303 Stainless	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
8HF8-SS	Socket/Female	1"	1" - 11-1/2 Female NPTF	316 Stainless	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
8HBF8	Socket/Female	1"	1" - 11 Female BSPP	Steel	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
8HBF8-B	Socket/Female	1"	1" - 11 Female BSPP	Brass	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	1500 PSI (100 bar)	8500 PSI (600 bar)
8HBF8-S	Socket/Female	1"	1" - 11 Female BSPP	303 Stainless	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
8HBF8-SS	Socket/Female	1"	1" - 11 Female BSPP	316 Stainless	4.13" (104.9mm)	2.49" (63.2mm)	1-5/8"	2000 PSI (138 bar)	15000 PSI (1000 bar)
8HOF8	Socket/Female	1"	1-5/16" - 12 Female ORB	Steel	4.19" (106.3mm)	2.49" (63.2mm)	1-5/8"	4000 PSI (275 bar)	16000 PSI (1100 bar)
