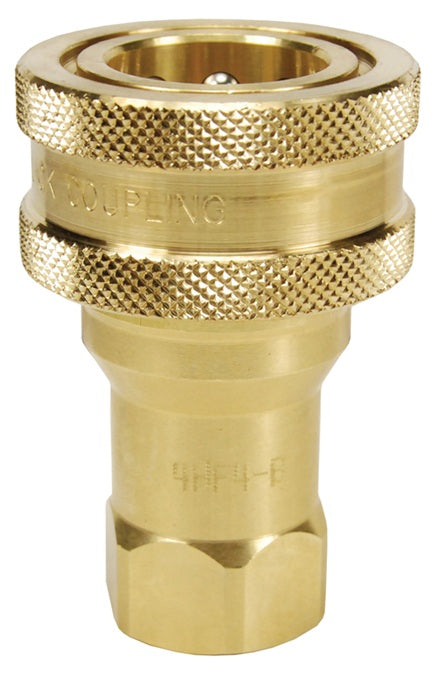

8HBF8-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1" Female BSPP x 1" ISO-B Interchange | Socket | Nitrile Seal | Brass
8HBF8-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1" Female BSPP x 1" ISO-B Interchange | Socket | Nitrile Seal | Brass
8HBF8-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1" Female BSPP x 1" ISO-B Interchange | Socket | Nitrile Seal | Brass

8HBF8-B by Dixon Valve | Hydraulic Quick Disconnect Coupling | H-Series | 1" Female BSPP x 1" ISO-B Interchange | Socket | Nitrile Seal | Brass

Save $17.76 Save $17.76
$85.27
$85.27 - $85.27
$85.27
$67.51
$67.51 - $67.51
$67.51

Dixon Valve & Coupling
Hydraulic Coupling: H-Series ISO-B Interchange Coupler (Female Threads)
Specifications for Variant SKU: 8HBF8-B Dixon
Series: H-Series
Shape (Orientation): Straight
Ends Configuration: 1in Female ISO-B QD Interchange, 1in Female BSPP
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange:
  • Meets dimensional requirements of ISO 7241 Series B
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Danfoss/Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
Construction:
  • Machined components are manufactured using solid steel, brass, 303 stainless steel, or 316 stainless steel bar stock.
  • Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS-compliant trivalent chrome.
  • Steel coupler sleeves are hardened to resist deformation and maximize service life.
  • Steel plugs are hardened to provide heavy-duty performance and resist brinelling.
Seal Components:
  • Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C).
  • 1/8" to 1" couplers have a redundant O-ring sealing system with PTFE backup ring. 1-1/4" to 2-1/2" have a Hytrel backup ring.
  • 1/4" to 1" valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection.
Features:
  • Poppet style shut-off valves
Additional Information:
H-Series | ISO-B Interchange Coupler (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Max. Opertaing
Pressure		 Burst
Pressure
1HF1 Socket/Female 1/8" 1/8" - 27 Female NPTF Steel 1.90"
(48.3mm)		 0.93"
(23.6mm)		 9/16" 4000 PSI
(275 bar)		 14500 PSI
(1000 bar)
1HF1-B Socket/Female 1/8" 1/8" - 27 Female NPTF Brass 1.90"
(48.3mm)		 0.93"
(23.6mm)		 9/16" 3000 PSI
(200 bar)		 16500 PSI
(450 bar)
1HF1-S Socket/Female 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.90"
(48.3mm)		 0.93"
(23.6mm)		 9/16" 3500 PSI
(240 bar)		 29500 PSI
(2000 bar)
1HF1-SS Socket/Female 1/8" 1/8" - 27 Female NPTF 316 Stainless 1.90"
(48.3mm)		 0.93"
(23.6mm)		 9/16" 3500 PSI
(240 bar)		 29500 PSI
(2000 bar)
1HOF2 Socket/Female 1/8" 7/16" - 20 Female ORB Steel 1.90"
(48.3mm)		 0.93"
(23.6mm)		 9/16" 4000 PSI
(275 bar)		 14500 PSI
(1000 bar)
2HF2 Socket/Female 1/4" 1/4" - 18 Female NPTF Steel 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
2HF2-B Socket/Female 1/4" 1/4" - 18 Female NPTF Brass 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 3000 PSI
(200 bar)		 15000 PSI
(1000 bar)
2HF2-S Socket/Female 1/4" 1/4" - 18 Female NPTF 303 Stainless 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 3500 PSI
(240 bar)		 31500 PSI
(2150 bar)
2HF2-SS Socket/Female 1/4" 1/4" - 18 Female NPTF 316 Stainless 2.26"
(57.4mm)		 1.12"
(28.4mm)		 3/4" 3500 PSI
(240 bar)		 33000 PSI
(2200 bar)
2HBF2 Socket/Female 1/4" 1/4" - 19 Female BSPP Steel 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
2HBF2-B Socket/Female 1/4" 1/4" - 19 Female BSPP Brass 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 3000 PSI
(200 bar)		 15000 PSI
(1000 bar)
2HBF2-S Socket/Female 1/4" 1/4" - 19 Female BSPP 303 Stainless 2.26"
(57.4mm)		 1.12"
(28.4mm)		 7/8" 3500 PSI
(240 bar)		 31500 PSI
(2150 bar)
2HBF2-SS Socket/Female 1/4" 1/4" - 19 Female BSPP 316 Stainless 2.26"
(57.4mm<)		 1.12"
(28.4mm)		 3/4" 3500 PSI
(240 bar)		 33000 PSI
(2200 bar)
2HOF3 Socket/Female 1/4" 9/16" - 18 Female ORB Steel 2.29"
(58.2mm)		 1.12"
(28.4mm)		 13/16" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
3HF3 Socket/Female 3/8" 3/8" - 18 Female NPTF Steel 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
3HF3-B Socket/Female 3/8" 3/8" - 18 Female NPTF Brass 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 3000 PSI
(200 bar)		 12000 PSI
(800 bar)
3HF3-S Socket/Female 3/8" 3/8" - 18 Female NPTF 303 Stainless 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 3500 PSI
(240 bar)		 26500 PSI
(450 bar)
3HF3-SS Socket/Female 3/8" 3/8" - 18 Female NPTF 316 Stainless 2.51"
(63.8mm)		 1.42"
(36.1mm)		 7/8" 3500 PSI
(240 bar)		 28000 PSI
(1900 bar)
3HBF3 Socket/Female 3/8" 3/8" - 19 Female BSPP Steel 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
3HBF3-B Socket/Female 3/8" 3/8" - 19 Female BSPP Brass 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 3000 PSI
(200 bar)		 12000 PSI
(800 bar)
3HBF3-S Socket/Female 3/8" 3/8" - 19 Female BSPP 303 Stainless 2.51"
(63.8mm)		 1.42"
(36.1mm)		 1-1/16" 3500 PSI
(240 bar)		 26500 PSI
(450 bar)
3HBF3-SS Socket/Female 3/8" 3/8" - 19 Female BSPP 316 Stainless 2.51"
(63.8mm)		 1.42"
(36.1mm)		 7/8" 3500 PSI
(240 bar)		 28000 PSI
(1900 bar)
3HOF4 Socket/Female 3/8" 3/4" - 16 Female ORB Steel 2.62"
(66.5mm)		 1.42"
(36.1mm)		 1" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
4HF4 Socket/Female 1/2" 1/2" - 14 Female NPTF Steel 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
4HF4-B Socket/Female 1/2" 1/2" - 14 Female NPTF Brass 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 2500 PSI
(170 bar)		 11500 PSI
(750 bar)
4HF4-S Socket/Female 1/2" 1/2" - 14 Female NPTF 303 Stainless 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 3500 PSI
(240 bar)		 27500 PSI
(1900 bar)
4HF4-SS Socket/Female 1/2" 1/2" - 14 Female NPTF 316 Stainless 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-1/16" 3500 PSI
(240 bar)		 22000 PSI
(1500 bar)
4HBF4 Socket/Female 1/2" 1/2" - 14 Female BSPP Steel 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
4HBF4-B Socket/Female 1/2" 1/2" - 14 Female BSPP Brass 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 2500 PSI
(170 bar)		 11500 PSI
(750 bar)
4HBF4-S Socket/Female 1/2" 1/2" - 14 Female BSPP 303 Stainless 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-5/16" 3500 PSI
(240 bar)		 27500 PSI
(1900 bar)
4HBF4-SS Socket/Female 1/2" 1/2" - 14 Female BSPP 316 Stainless 2.86"
(72.6mm)		 1.86"
(47.2mm)		 1-1/16" 3500 PSI
(240 bar)		 22000 PSI
(1500 bar)
4HOF5 Socket/Female 1/2" 7/8" - 14 Female ORB Steel 2.90"
(73.7mm)		 1.86"
(47.2mm)		 1-1/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
6HF6 Socket/Female 3/4" 3/4" - 14 Female NPTF Steel 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
6HF6-B Socket/Female 3/4" 3/4" - 14 Female NPTF Brass 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 2000 PSI
(138 bar)		 12000 PSI
(800 bar)
6HF6-S Socket/Female 3/4" 3/4" - 14 Female NPTF 303 Stainless 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 3000 PSI
(200 bar)		 16000 PSI
(1100 bar)
6HF6-SS Socket/Female 3/4" 3/4" - 14 Female NPTF 316 Stainless 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 3000 PSI
(200 bar)		 21500 PSI
(1450 bar)
6HBF6 Socket/Female 3/4" 3/4" - 14 Female BSPP Steel 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
6HBF6-B Socket/Female 3/4" 3/4" - 14 Female BSPP Brass 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 2000 PSI
(138 bar)		 12000 PSI
(800 bar)
6HBF6-S Socket/Female 3/4" 3/4" - 14 Female BSPP 303 Stainless 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 3000 PSI
(200 bar)		 16000 PSI
(1100 bar)
6HBF6-SS Socket/Female 3/4" 3/4" - 14 Female BSPP 316 Stainless 3.55"
(90.2mm)		 2.22"
(56.4mm)		 1-5/16" 3000 PSI
(200 bar)		 21500 PSI
(1450 bar)
6HOF6 Socket/Female 3/4" 1-1/16" - 12 Female ORB Steel 3.69"
(93.7mm)		 2.22"
(56.4mm)		 1-5/16" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
8HF8 Socket/Female 1" 1" - 11-1/2 Female NPTF Steel 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
8HF8-B Socket/Female 1" 1" - 11-1/2 Female NPTF Brass 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
8HF8-S Socket/Female 1" 1" - 11-1/2 Female NPTF 303 Stainless 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
8HF8-SS Socket/Female 1" 1" - 11-1/2 Female NPTF 316 Stainless 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
8HBF8 Socket/Female 1" 1" - 11 Female BSPP Steel 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
8HBF8-B Socket/Female 1" 1" - 11 Female BSPP Brass 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
8HBF8-S Socket/Female 1" 1" - 11 Female BSPP 303 Stainless 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
8HBF8-SS Socket/Female 1" 1" - 11 Female BSPP 316 Stainless 4.13"
(104.9mm)		 2.49"
(63.2mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
8HOF8 Socket/Female 1" 1-5/16" - 12 Female ORB Steel 4.19"
(106.3mm)		 2.49"
(63.2mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H-Series | ISO-B Interchange Plug (Female Threads)
Part
Number		 Coupling
Type		 Body
Size		 Threads Material Length Max.
OD		 Hex Max. Opertaing
Pressure		 Burst
Pressure
H1F1 Plug/Male 1/8" 1/8" - 27 Female NPTF Steel 1.28"
(32.5mm)		 0.65"
(16.5mm)		 9/16" 4000 PSI
(275 bar)		 14500 PSI
(1000 bar)
H1F1-B Plug/Male 1/8" 1/8" - 27 Female NPTF Brass 1.28"
(32.5mm)		 0.65"
(16.5mm)		 9/16" 3000 PSI
(200 bar)		 16500 PSI
(450 bar)
H1F1-S Plug/Male 1/8" 1/8" - 27 Female NPTF 303 Stainless 1.28"
(32.5mm)		 0.65"
(16.5mm)		 9/16" 3500 PSI
(240 bar)		 29500 PSI
(2000 bar)
H1F1-SS Plug/Male 1/8" 1/8" - 27 Female NPTF 316 Stainless 1.28"
(32.5mm)		 0.65"
(16.5mm)		 9/16" 3500 PSI
(240 bar)		 29500 PSI
(2000 bar)
H1OF2 Plug/Male 1/8" 7/16" - 20 Female ORB Steel 1.28"
(32.5mm)		 0.65"
(16.5mm)		 9/16" 4000 PSI
(275 bar)		 14500 PSI
(1000 bar)
H2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
H2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3000 PSI
(200 bar)		 15000 PSI
(1000 bar)
H2F2-S Plug/Male 1/4" 1/4" - 18 Female NPTF 303 Stainless 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3500 PSI
(240 bar)		 31500 PSI
(2150 bar)
H2F2-SS Plug/Male 1/4" 1/4" - 18 Female NPTF 316 Stainless 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3500 PSI
(240 bar)		 33000 PSI
(2200 bar)
H2BF2 Plug/Male 1/4" 1/4" - 19 Female BSPP Steel 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
H2BF2-B Plug/Male 1/4" 1/4" - 19 Female BSPP Brass 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3000 PSI
(200 bar)		 15000 PSI
(1000 bar)
H2BF2-S Plug/Male 1/4" 1/4" - 19 Female BSPP 303 Stainless 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3500 PSI
(240 bar)		 31500 PSI
(2150 bar)
H2BF2-SS Plug/Male 1/4" 1/4" - 19 Female BSPP 316 Stainless 1.55"
(39.4mm)		 0.83"
(21.1mm)		 3/4" 3500 PSI
(240 bar)		 33000 PSI
(2200 bar)
H2OF3 Plug/Male 1/4" 9/16" - 18 Female ORB Steel 1.61"
(40.9mm)		 0.90"
(22.9mm)		 13/16" 5000 PSI
(345 bar)		 22500 PSI
(1550 bar)
H3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H3F3-B Plug/Male 3/8" 3/8" - 18 Female NPTF Brass 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3000 PSI
(200 bar)		 12000 PSI
(800 bar)
H3F3-S Plug/Male 3/8" 3/8" - 18 Female NPTF 303 Stainless 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3500 PSI
(240 bar)		 26500 PSI
(450 bar)
H3F3-SS Plug/Male 3/8" 3/8" - 18 Female NPTF 316 Stainless 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3500 PSI
(240 bar)		 28000 PSI
(1900 bar)
H3BF3 Plug/Male 3/8" 3/8" - 19 Female BSPP Steel 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H3BF3-B Plug/Male 3/8" 3/8" - 19 Female BSPP Brass 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3000 PSI
(200 bar)		 12000 PSI
(800 bar)
H3BF3-S Plug/Male 3/8" 3/8" - 19 Female BSPP 303 Stainless 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3500 PSI
(240 bar)		 26500 PSI
(450 bar)
H3BF3-SS Plug/Male 3/8" 3/8" - 19 Female BSPP 316 Stainless 1.70"
(43.2mm)		 0.97"
(24.6mm)		 7/8" 3500 PSI
(240 bar)		 28000 PSI
(1900 bar)
H3OF3 Plug/Male 3/8" 3/4" - 16 Female ORB Steel 1.79"
(45.5mm)		 1.10"
(27.9mm)		 1" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H4F4 Plug/Male 1/2" 1/2" - 14 Female NPTF Steel 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H4F4-B Plug/Male 1/2" 1/2" - 14 Female NPTF Brass 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 2500 PSI
(170 bar)		 11500 PSI
(750 bar)
H4F4-S Plug/Male 1/2" 1/2" - 14 Female NPTF 303 Stainless 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 3500 PSI
(240 bar)		 27500 PSI
(1900 bar)
H4F4-SS Plug/Male 1/2" 1/2" - 14 Female NPTF 316 Stainless 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 3500 PSI
(240 bar)		 22000 PSI
(1500 bar)
H4BF4 Plug/Male 1/2" 1/2" - 14 Female BSPP Steel 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H4BF4-B Plug/Male 1/2" 1/2" - 14 Female BSPP Brass 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 2500 PSI
(170 bar)		 11500 PSI
(750 bar)
H4BF4-S Plug/Male 1/2" 1/2" - 14 Female BSPP 303 Stainless 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 3500 PSI
(240 bar)		 27500 PSI
(1900 bar)
H4BF4-SS Plug/Male 1/2" 1/2" - 14 Female BSPP 316 Stainless 1.94"
(49.3mm)		 1.17"
(29.7mm)		 1-1/16" 3500 PSI
(240 bar)		 22000 PSI
(1500 bar)
H4OF5 Plug/Male 1/2" 7/8" - 14 Female ORB Steel 1.94"
(49.3mm)		 1.24"
(31.5mm)		 1-1/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H6F6 Plug/Male 3/4" 3/4" - 14 Female NPTF Steel 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H6F6-B Plug/Male 3/4" 3/4" - 14 Female NPTF Brass 2.44"
(61.2mm<)		 1.50"
(36.6mm)		 1-3/8" 2000 PSI
(138 bar)		 12000 PSI
(800 bar)
H6F6-S Plug/Male 3/4" 3/4" - 14 Female NPTF 303 Stainless 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 3000 PSI
(200 bar)		 16000 PSI
(1100 bar)
H6F6-SS Plug/Male 3/4" 3/4" - 14 Female NPTF 316 Stainless 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 3000 PSI
(200 bar)		 21500 PSI
(1450 bar)
H6BF6 Plug/Male 3/4" 3/4" - 14 Female BSPP Steel 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H6BF6-B Plug/Male 3/4" 3/4" - 14 Female BSPP Brass 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 2000 PSI
(138 bar)		 12000 PSI
(800 bar)
H6BF6-S Plug/Male 3/4" 3/4" - 14 Female BSPP 303 Stainless 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 3000 PSI
(200 bar)		 16000 PSI
(1100 bar)
H6BF6-SS Plug/Male 3/4" 3/4" - 14 Female BSPP 316 Stainless 2.44"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 3000 PSI
(200 bar)		 21500 PSI
(1450 bar)
H6OF6 Plug/Male 3/4" 1-1/16" - 12 Female ORB Steel 2.58"
(61.2mm)		 1.50"
(36.6mm)		 1-3/8" 4000 PSI
(275 bar)		 16500 PSI
(450 bar)
H8F8 Plug/Male 1" 1" - 11-1/2 Female NPTF Steel 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H8F8-B Plug/Male 1" 1" - 11-1/2 Female NPTF Brass 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
H8F8-S Plug/Male 1" 1" - 11-1/2 Female NPTF 303 Stainless 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
H8F8-SS Plug/Male 1" 1" - 11-1/2 Female NPTF 316 Stainless 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
H8BF8 Plug/Male 1" 1" - 11 Female BSPP Steel 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)
H8BF8-B Plug/Male 1" 1" - 11 Female BSPP Brass 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 1500 PSI
(100 bar)		 8500 PSI
(600 bar)
H8BF8-S Plug/Male 1" 1" - 11 Female BSPP 303 Stainless 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
H8BF8-SS Plug/Male 1" 1" - 11 Female BSPP 316 Stainless 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 2000 PSI
(138 bar)		 15000 PSI
(1000 bar)
H8OF8 Plug/Male 1" 1-5/16" - 12 Female ORB Steel 2.87"
(72.9mm)		 1.79"
(45.5mm)		 1-5/8" 4000 PSI
(275 bar)		 16000 PSI
(1100 bar)

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
