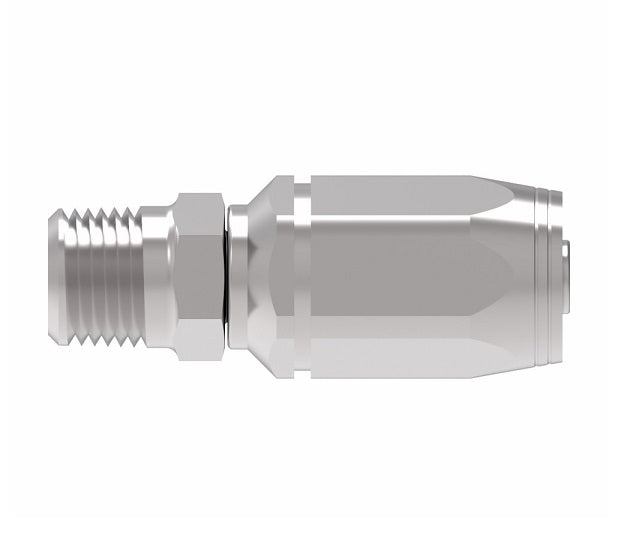

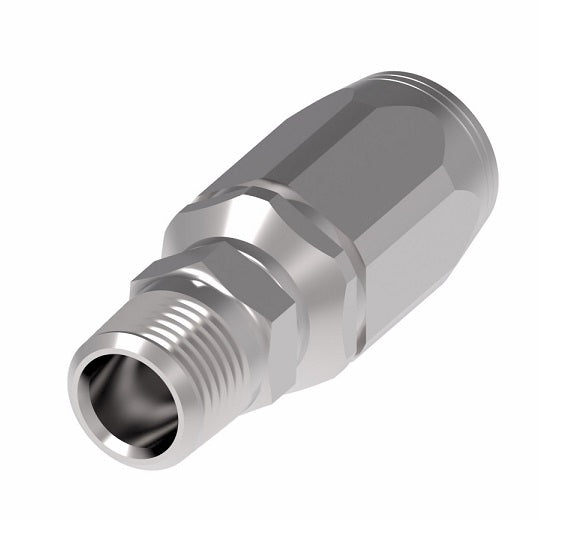

2RA16MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel
2RA16MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel
2RA16MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel
2RA16MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel

2RA16MP16 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -16 Male Pipe x -16 Reusable Hose End | Steel

$75.98 - $75.98
$75.98
$75.98 - $75.98
$75.98

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male Pipe - Straight
Specifications for Variant SKU: 2RA16MP16 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Reusable Hose End
Material(s): Steel
Compatible with the following Series: H280 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
2RA4MP4 4202-4-4S 2RA4 1/4-18 -04 2.50" 1.33" 0.17"
2RA6MP6 4202-6-6S 2RA6 3/8-18 -06 2.75" 1.41" 0.31"
2RA6MP8 4202-6-8S 2RA8 3/8-18 -08 2.84" 1.31" 0.39"
2RA8MP8 4202-8-8S 2RA8 1/2-14 -08 3.09" 1.58" 0.39"
2RA12MP12 4202-12-12S 2RA12 3/4-14 -12 3.61" 1.74" 0.61"
2RA12MP16 4202-16-16S 2RA16 1-11-1/2 -16 4.40" 2.35" 0.82"
