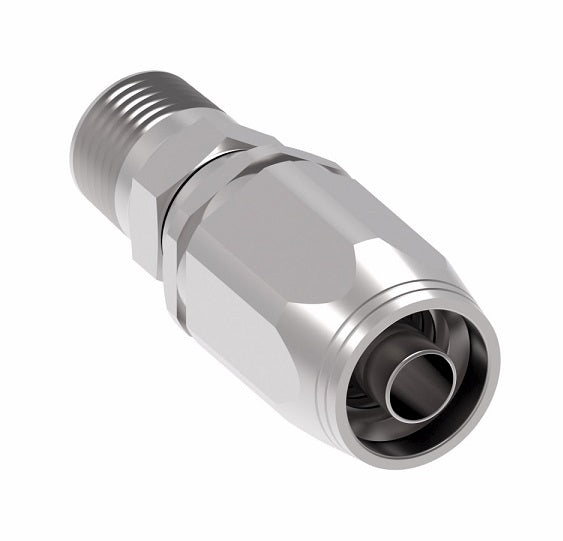

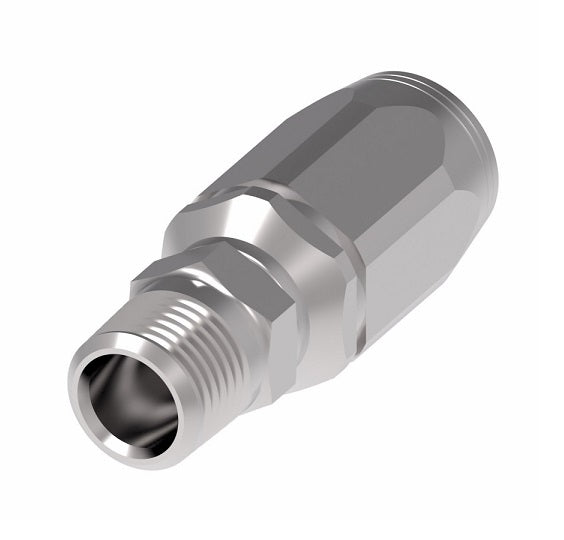

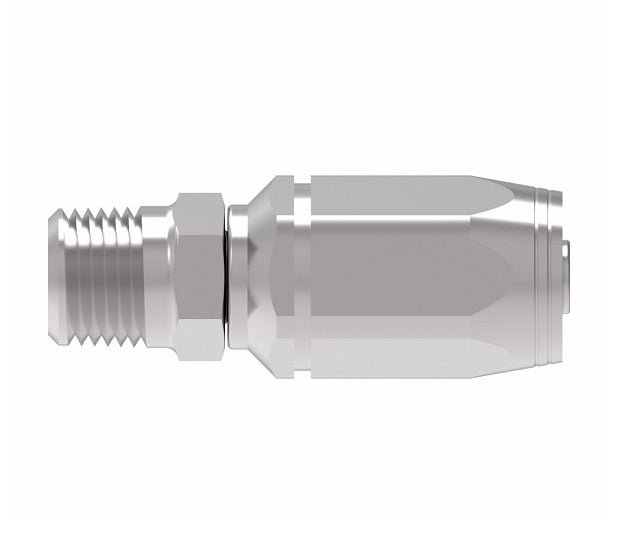

2RA6MP8 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -08 Reusable Hose End | Steel

2RA6MP8 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -08 Reusable Hose End | Steel

Name: 2RA6MP8 Weatherhead by Danfoss | Male Pipe Field Attachable Fitting for 2 Wire Braided Hose | 2R Series | Complete Fitting | -06 Male Pipe x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 2RA6MP8 Danfoss
Price: 54.88 USD
Availability: InStock

$54.88 - $54.88

$54.88

$54.88 - $54.88

$54.88

Weatherhead by Danfoss
Field Attachable Fitting for 2 Wire Braided Hose - 2R Series - Male Pipe - Straight

Specifications for Variant SKU: 2RA6MP8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male NPT, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	H280 Series

Features:
Non-skive, two-piece crimp Fitting. Clear silver hexavalent chromium-free plating. Carbon steel material.


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Reusable Socket Part Number	Thread Size	Hose Size	A	D	E&Oslash
2RA4MP4	4202-4-4S	2RA4	1/4-18	-04	2.50"	1.33"	0.17"
2RA6MP6	4202-6-6S	2RA6	3/8-18	-06	2.75"	1.41"	0.31"
2RA6MP8	4202-6-8S	2RA8	3/8-18	-08	2.84"	1.31"	0.39"
2RA8MP8	4202-8-8S	2RA8	1/2-14	-08	3.09"	1.58"	0.39"
2RA12MP12	4202-12-12S	2RA12	3/4-14	-12	3.61"	1.74"	0.61"
2RA12MP16	4202-16-16S	2RA16	1-11-1/2	-16	4.40"	2.35"	0.82"
