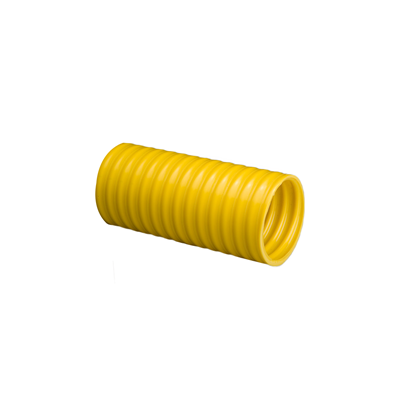

3.0-SLEEVE-VAPOR by Texcel | SIGMA-BANDING SLEEVES™ Series | Yellow Banding Sleeve For: SIGMA-VAPOR | 3" Hose ID | 3ft Length

Name: 3.0-SLEEVE-VAPOR by Texcel | SIGMA-BANDING SLEEVES™ Series | Yellow Banding Sleeve For: SIGMA-VAPOR | 3" Hose ID | 3ft Length
Brand: Texcel
SKU: 3.0-SLEEVE-VAPOR Texcel
Price: 20.99 USD
Availability: InStock

Save $8.40

$29.39

$29.39 - $29.39

$29.39

$20.99

$20.99 - $20.99

$20.99

SIGMA™ by Texcel
BANDING SLEEVES™ Series | YELLOW BANDING SLEEVE FOR: SIGMA-VRM AND VRH

Specifications for Variant SKU: 3.0-SLEEVE-VAPOR Texcel
Brand:	SIGMA
Series:	SIGMA-BANDING SLEEVES™ Series
Hose Color(s):	Yellow
Internal Diameter:	3in
Tubing Construction:	PVC

Hose Accessories

SIGMA™ Banding Sleeves

Flexible PVC banding sleeves for use with SIGMA™ Series tank drop and vapor recovery hose.

1

What are these sleeves used for?

Used in 12" sections on each hose end so band clamps do not slip or cut into the helix, as part of the SIGMA™ hose assembly procedure. SIGMA-COIL™ banding coils (2.0-SLINKY, 3.0-SLINKY, 4.0-SLINKY) are the alternative.

Tank drop hose assemblies
Vapor recovery hose assemblies
Band clamp retention

2

What are the key specifications?

Material

Non-food-grade, flexible PVC

Temperature Range

-40°F to +150°F (depends on actual application)

Design

For right-handed spiral hose

Standard Length

3'

3

Which sizes are available?

Part Number	Hose ID	Std. Length	Sleeve Color	Weight (lbs/ft)
Green — for SIGMA-TDG™ tank drop hose
3.0-SLEEVE-TDG	3"	3'	Green	3.20
4.0-SLEEVE-TDG	4"	3'	Green	3.75
Orange — for SIGMA-TDHD™ tank drop hose
2.0-SLEEVE-TDHD	2"	3'	Orange	1.10
3.0-SLEEVE-TDHD	3"	3'	Orange	3.20
4.0-SLEEVE-TDHD	4"	3'	Orange	3.75
Red — for SIGMA-TD150™ tank drop hose
2.0-SLEEVE-TD150	2"	3'	Red	1.10
3.0-SLEEVE-TD150	3"	3'	Red	3.20
4.0-SLEEVE-TD150	4"	3'	Red	3.75
Yellow — for SIGMA-VRM™ and SIGMA-VRH™ vapor recovery hose
2.0-SLEEVE-VAPOR	2"	3'	Yellow	1.10
3.0-SLEEVE-VAPOR	3"	3'	Yellow	3.20
4.0-SLEEVE-VAPOR	4"	3'	Yellow	3.75

4

Which hose does each sleeve fit?

SIGMA-TDG™ (green sleeves) — SPVC-TDG-3.0-100, SPVC-TDG-4.0-100
SIGMA-TDHD™ (orange sleeves) — SPVC-TDHD-2.0-100, SPVC-TDHD-3.0-100, SPVC-TDHD-4.0-100
SIGMA-TD150™ (red sleeves) — SPVC-TD150-2.0-100, SPVC-TD150-3.0-100, SPVC-TD150-4.0-100
SIGMA-VRM™ / SIGMA-VRH™ (yellow sleeves) — SPVC-VRM-2.0-100, SPVC-VRM-3.0-100, SPVC-VRM-4.0-100, SPVC-VRH-3.0-100, SPVC-VRH-4.0-100
