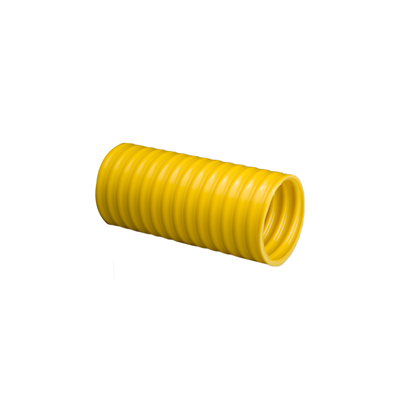

4.0-SLEEVE-VAPOR by Texcel | SIGMA-BANDING SLEEVES™ Series | Yellow Banding Sleeve For: SIGMA-VAPOR | 4" Hose ID | 3ft Length

4.0-SLEEVE-VAPOR by Texcel | SIGMA-BANDING SLEEVES™ Series | Yellow Banding Sleeve For: SIGMA-VAPOR | 4" Hose ID | 3ft Length

Save $10.53 Save $10.53
$36.85
$36.85 - $36.85
$36.85
$26.32
$26.32 - $26.32
$26.32

SIGMA™ by Texcel
BANDING SLEEVES™ Series | YELLOW BANDING SLEEVE FOR: SIGMA-VRM AND VRH
Specifications for Variant SKU: 4.0-SLEEVE-VAPOR Texcel
Brand: SIGMA
Series: SIGMA-BANDING SLEEVES™ Series
Hose Color(s): Yellow
Internal Diameter: 4in
Tubing Construction: PVC
Technical Data:
Description: High quality vapor recovery hose for heavy-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures. Construction: Clear, specially compounded polyurethane with a bright red, rigid PVC, right-handed helix
Grounding: Embedded tin coated copper wire Safety Factor: 4:1
Temperature: -40°F to +150°F (service temperature depends on actual application) Branding: TEXCEL® SIGMA™-VRH - HEAVY DUTY VAPOR RECOVERY HOSE -LOT
Compared To: Tigervapor HD Sleeves: SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-Coil™ (banding coils) are recommended to accurately follow assembly procedures
Part Number Hose ID Std. Length Sleeve Color Lbs./ft
3.0-SLEEVE-TDG 3" 3' Green 3.20 lbs
4.0-SLEEVE-TDG 4" 3' Green 3.75 lbs
2.0-SLEEVE-TDHD 2" 3' Orange 1.10 lbs
3.0-SLEEVE-TDHD 3" 3' Orange 3.20 lbs
4.0-SLEEVE-TDHD 4" 3' Orange 3.75 lbs
2.0-SLEEVE-TD150 2" 3' Red 1.10 lbs
3.0-SLEEVE-TD150 3" 3' Red 3.20 lbs
4.0-SLEEVE-TD150 4" 3' Red 3.75 lbs
2.0-SLEEVE-VAPOR 2" 3' Yellow 1.10 lbs
3.0-SLEEVE-VAPOR 3" 3' Yellow 3.20 lbs
4.0-SLEEVE-VAPOR 4" 3' Yellow 3.75 lbs
