3/4" 026H Couplamatic Textile Covered Push-on Hose - One Fiber Braid - 3/4" ID - 500ft

3/4" 026H by Couplamatic | Textile Covered Push-on Hose | One Fiber Braid | 3/4" ID | 500ft

Save $1,653.33

$4,133.33

$4,133.33 - $4,133.33

$4,133.33

$2,480.00

$2,480.00 - $2,480.00

$2,480.00

Couplamatic Systems Inc.
One Fiber Braid - 026H Textile Covered Push-on Hose

Package Quantity: 500 FT

Specifications for Variant SKU: 3/4" 026H Couplamatic \| 500 \|
Series:	026H Series
Hose Color(s):	Black
Internal Diameter:	0.75in
Outer Diameter:	1.031in
Cover Construction:	Textile Braid

Push-On Hose — Textile Cover

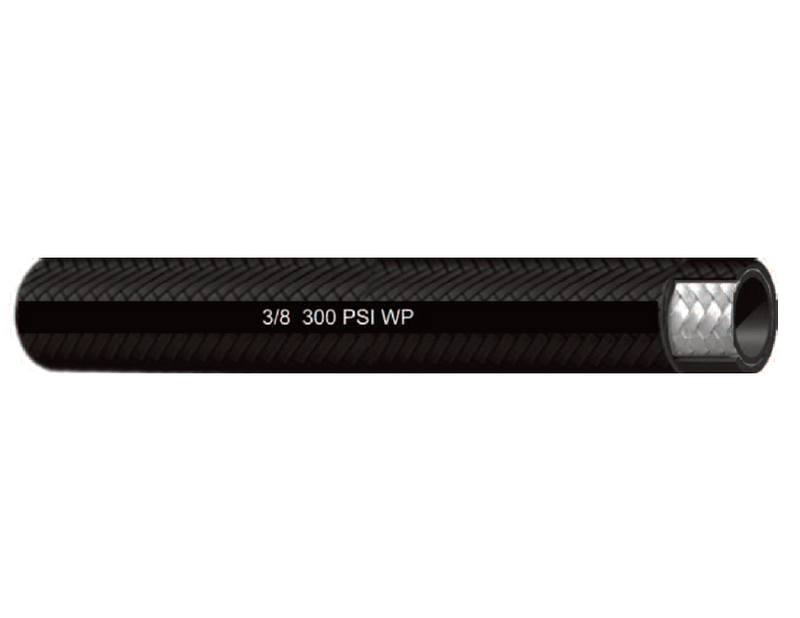

026H Textile Covered Push-On Hose

Low pressure one fiber braid push-on hose with an oil and mildew resistant textile cover, for shop and equipment lines assembled without clamps.

1

What is this hose used for?

Low Pressure

2

What are the key specifications?

Cover

Oil and Mildew Resistant Textile

Reinforcement

One Fiber Braid

Temperature

-40 to +200°F (-40 to +96°C)

Size Range

1/4" to 3/4"

3

What are the main product features?

No clamps or crimping — assembles by hand onto push-on fittings.
Oil and mildew resistant textile cover — holds up in damp and outdoor storage.
One fiber braid — light, flexible and easy to handle.
Cut lengths available — 100ft minimum.

4

Which sizes are available?

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" 026H	1/4"	0.500"	300 lbs.	1,200 lbs.	2.5"	7 lbs.	500ft
3/8" 026H	3/8"	0.640"	300 lbs.	1,200 lbs.	3"	10 lbs.	500ft
1/2" 026H	1/2"	0.750"	300 lbs.	1,200 lbs.	5"	12 lbs.	500ft
5/8" 026H	5/8"	0.910"	300 lbs.	1,200 lbs.	6"	19 lbs.	500ft
3/4" 026H	3/4"	1.031"	300 lbs.	1,200 lbs.	7"	21 lbs.	500ft

i

Cut lengths are available with a 100' minimum. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
