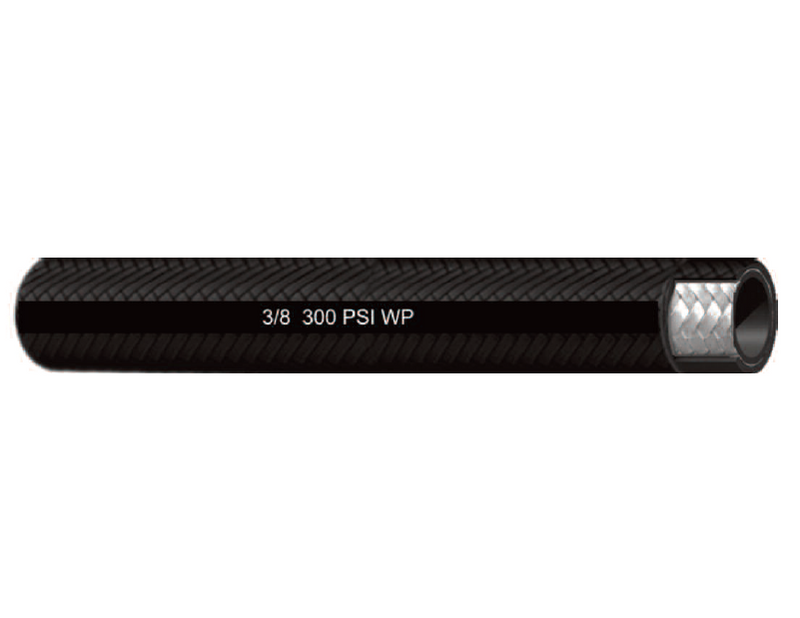

3/8" 026H Couplamatic Textile Covered Push-on Hose - One Fiber Braid - 3/8" ID - 500ft

3/8" 026H by Couplamatic | Textile Covered Push-on Hose | One Fiber Braid | 3/8" ID | 500ft

Save $957.78

$2,394.45

$2,394.45 - $2,394.45

$2,394.45

$1,436.67

$1,436.67 - $1,436.67

$1,436.67

Couplamatic Systems Inc.
One Fiber Braid - 026H Textile Covered Push-on Hose

Package Quantity: 500 FT

Specifications for Variant SKU: 3/8" 026H Couplamatic \| 500 \|
Series:	026H Series
Hose Color(s):	Black
Internal Diameter:	0.375in
Outer Diameter:	0.64in
Cover Construction:	Textile Braid

Applications:	Low Pressure	SAE Rating:	N/A
Cover:	Oil and Mildew Resistant Textile	Reinforcement:	One Fiber Braid
Temperature:	-40 to +200F (-40 to +96C)

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Reel Footage
1/4" 026H	1/4"	0.500"	300 lbs.	1,200 lbs.	2.5"	7 lbs.	500ft
3/8" 026H	3/8"	0.640"	300 lbs.	1,200 lbs.	3"	10 lbs.	500ft
1/2" 026H	1/2"	0.750"	300 lbs.	1,200 lbs.	5"	12 lbs.	500ft
5/8" 026H	5/8"	0.910"	300 lbs.	1,200 lbs.	6"	19 lbs.	500ft
3/4" 026H	3/4"	1.031"	300 lbs.	1,200 lbs.	7"	21 lbs.	500ft

*Cut lengths available. 100' minimum*

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
