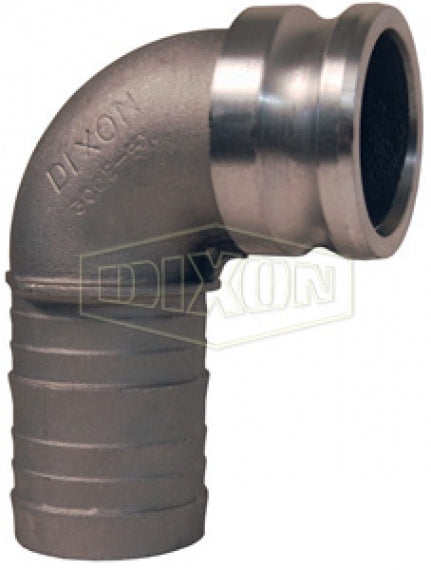

300E-90AL by Dixon Valve | Cam & Groove Fitting | 90° Elbow | Type E | 3" Adapter x 3" Hose Shank | Aluminum

Save $65.25

$163.12

$163.12 - $163.12

$163.12

$97.87

$97.87 - $97.87

$97.87

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type E | Adapter x Hose Shank

Designed for use with liquids.

Specifications for Variant SKU: 300E-90AL Dixon
Shape (Orientation):	90 Degree
Cam Type:	Type E
Ends Configuration:	3in Male Cam & Groove, 3in Hose Barb
Material(s):	Aluminum

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Pressure rating is based on the seal of the mating part.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Maximum Operating Pressure
-	200E-90SS*	2"	250 PSI
300E-90AL	300E-90SS	3"	125 PSI
400E-90AL	400E-90SS*	4"	100 PSI

* Parts are produced as a welded fabrication.
