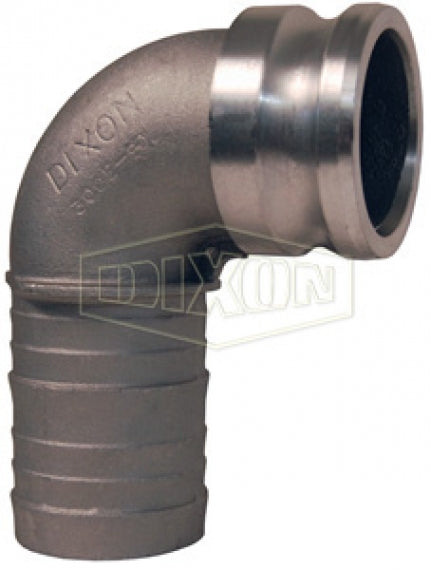

400E-90AL by Dixon Valve | Cam & Groove Fitting | 90° Elbow | Type E | 4" Adapter x 4" Hose Shank | Aluminum

Save $10.33 Save $10.33
Original price $129.18
Original price $129.18 - Original price $129.18
Original price $129.18
Current price $118.85
$118.85 - $118.85
Current price $118.85

Dixon Valve
Cam & Groove Coupler | 90° Elbow | Type E | Adapter x Hose Shank

Designed for use with liquids.


Specifications for Variant SKU: 400E-90AL Dixon
Shape (Orientation): 90 Degree
Cam Type: Type E
Ends Configuration: 4in Male Cam & Groove, 4in Hose Barb
Material(s): Aluminum
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number
316 Stainless Steel
Part Number
Size Maximum Operating Pressure
- 200E-90SS* 2" 250 PSI
300E-90AL 300E-90SS 3" 125 PSI
400E-90AL 400E-90SS* 4" 100 PSI

* Parts are produced as a welded fabrication.
