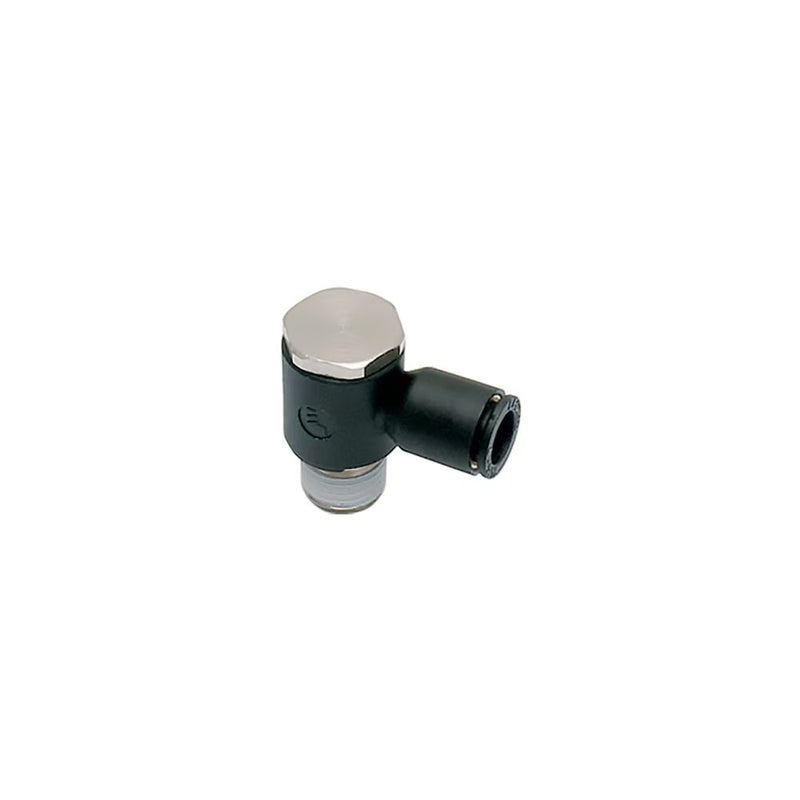

3018 06 13 by Parker | Legris Banjo Fittings | 6 mm Tube Size x 1/4" Male BSPT Thread | 31.50 mm Length | Banjo | Polymer | Pack of 10

Save $16.39

$120.26

$120.26 - $120.26

$120.26

$103.87

$103.87 - $103.87

$103.87

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3018 Single Banjo, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3018 06 13 Parker \| 10 \|
Series:	3018 Series
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Coated

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	L1	Kg
3018 06 10	6 mm	1/8"	13 mm	10.5 mm	18.5 mm	20 mm	7 mm	.015 Kg
3018 06 13	6 mm	1/4"	17 mm	10.5 mm	22.5 mm	22 mm	9.5 mm	.029 Kg
3018 08 10	8 mm	1/8"	13 mm	13.5 mm	18.5 mm	25 mm	7 mm	.016 Kg
3018 08 13	8 mm	1/4"	17 mm	13.5 mm	22.5 mm	27 mm	9.5 mm	.030 Kg
3018 10 13	10 mm	1/4"	17 mm	16 mm	22.5 mm	29 mm	9.5 mm	.031 Kg
3018 10 17	10 mm	3/8"	21 mm	16 mm	26.5 mm	31 mm	11 mm	.048 Kg
3018 12 13	12 mm	1/4"	21 mm	19 mm	26.5 mm	34.5 mm	11 mm	.052 Kg
3018 12 17	12 mm	3/8"	21 mm	19 mm	26.5 mm	34.5 mm	11 mm	.050 Kg

Pre-coated thread
