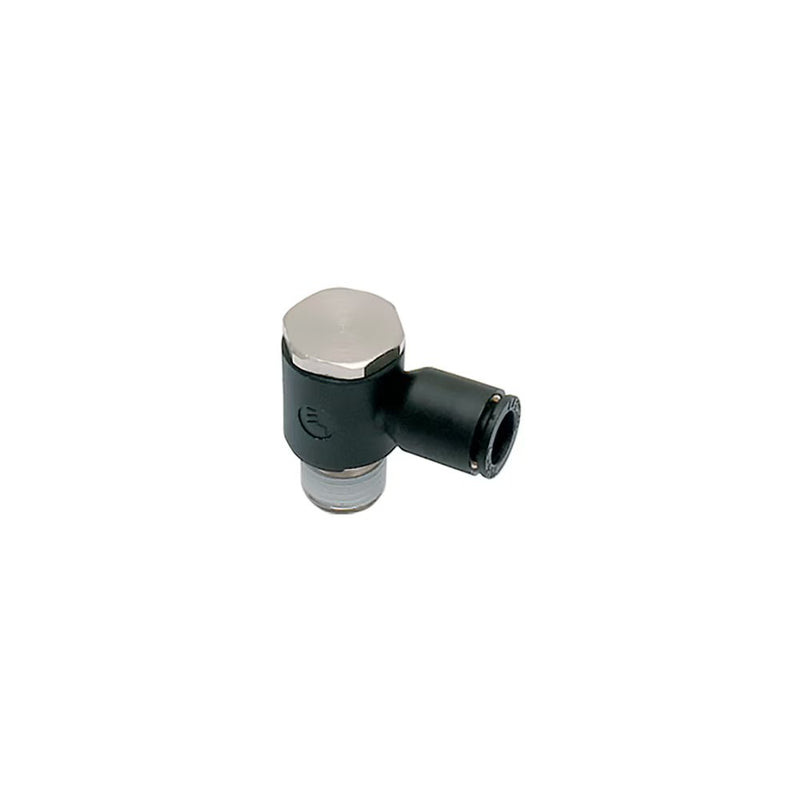

3018 08 10 by Parker | Legris Banjo Fittings | 8 mm Tube Size x 1/8" Male BSPT Thread | 32 mm Length | Banjo | Polymer | Pack of 10

Save $58.03

$145.08

$145.08 - $145.08

$145.08

$87.05

$87.05 - $87.05

$87.05

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3018 Single Banjo, Male BSPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3018 08 10 Parker \| 10 \|
Series:	3018 Series
Shape (Orientation):	90 Degree
Material(s):	Nickel-Plated Brass, Polymer
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Coated

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Screwed from above, for minimum space between connections 360° orientable Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration Body: Technical Polymer O-Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	F	G	H	L	L1	Kg
3018 06 10	6 mm	1/8"	13 mm	10.5 mm	18.5 mm	20 mm	7 mm	.015 Kg
3018 06 13	6 mm	1/4"	17 mm	10.5 mm	22.5 mm	22 mm	9.5 mm	.029 Kg
3018 08 10	8 mm	1/8"	13 mm	13.5 mm	18.5 mm	25 mm	7 mm	.016 Kg
3018 08 13	8 mm	1/4"	17 mm	13.5 mm	22.5 mm	27 mm	9.5 mm	.030 Kg
3018 10 13	10 mm	1/4"	17 mm	16 mm	22.5 mm	29 mm	9.5 mm	.031 Kg
3018 10 17	10 mm	3/8"	21 mm	16 mm	26.5 mm	31 mm	11 mm	.048 Kg
3018 12 13	12 mm	1/4"	21 mm	19 mm	26.5 mm	34.5 mm	11 mm	.052 Kg
3018 12 17	12 mm	3/8"	21 mm	19 mm	26.5 mm	34.5 mm	11 mm	.050 Kg

Pre-coated thread

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
