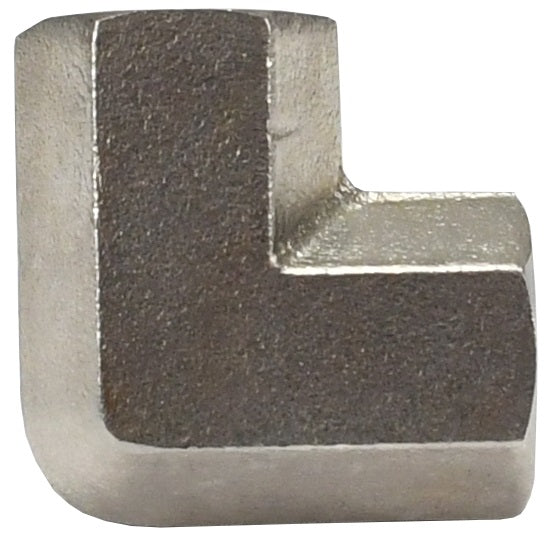

3020808SS by Dixon Valve | Female Pipe Union | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | 316 Stainless Steel

3020808SS by Dixon Valve | Female Pipe Union | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | 316 Stainless Steel

Save $16.81 Save $16.81
$42.02
$42.02 - $42.02
$42.02
$25.21
$25.21 - $25.21
$25.21

Dixon Valve
Pipe Fitting | Female Pipe Union | 90° Elbow | Female NPTF x Female NPTF
Specifications for Variant SKU: 3020808SS Dixon
Series: 302 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Specifications:
  • Ref SAE 130238.
  • Dryseal
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Extruded Brass
Part Number		 Previous
Part Number		 Female NPTF x Female NPTF
3020202C EL1F1F 1/8" x 1/8"
3020404C EL2F2F 1/4" x 1/4"
3020606C EL3F3F 3/8" x 3/8"
3020808C EL4F4F 1/2" x 1/2"
3021212C EL6F6F 3/4"
Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number		 Female NPT x Female NPT
- 3020202SS 1/8"
- 3020404SS 1/4"
3020606CLF 3020606SS 3/8"
3020808CLF 3020808SS 1/2"
- 3021212SS 3/4"
- 3021616SS 1"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
