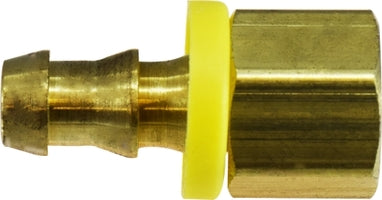

30221 (30-221) Midland Push On Hose Barb Fitting - Rigid Female Adapter - 1/4" Hose ID x 1/4" Female NPTF - Brass

30221 by Midland | Push On Hose Barb Fitting | 1/4" Hose ID x 1/4" Female NPTF | Rigid Adapter | Brass

Save $0.19 Save $0.19
$1.70
$1.70 - $1.70
$1.70
$1.51
$1.51 - $1.51
$1.51

Midland Industries
Brass Fitting - Push On Barb Fitting - Rigid Female Adapter

Inventory @ Manufacturers Warehouse: 208 Units
Specifications for Variant SKU: 30221 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Female NPTF
Material(s): Brass
Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P02 129PO7 30282 29FPO HLF 626 274 726 940
Part Number Hose ID x Female NPTF A B Hex Approx. Weight
(Lbs.)
30220
(30-220) 		1/4" x 1/8" 1.35" 0.87" 0.50" 0.02
30221
(30-221) 		1/4" x 1/4" 1.51" 0.87" 0.62" 0.06
30384
(30-384) 		1/4" x 3/8" 1.51" 0.77" 0.75" 0.06
30391
(30-391) 		5/16" x 1/8" 1.32" 0.77" 0.50" 0.03
30222
(30-222) 		5/16" x 1/4" 1.51" 0.87" 0.62" 0.06
30393
(30-393) 		3/8" x 1/8" 1.47" 0.92" 0.56" 0.06
30224
(30-224) 		3/8" x 1/4" 1.61" 0.97" 0.62" 0.06
30225
(30-225) 		3/8" x 3/8" 1.63" 0.97" 0.75" 0.06
30394
(30-394) 		3/8" x 1/2" 1.66" 0.92" 0.93" 0.12
30397
(30-397) 		3/8" x 3/4" 1.97" 0.97" 1.18" 0.20
30223
(30-223) 		1/2" x 1/4" 1.76" 1.02" 0.68" 0.08
30226
(30-226) 		1/2" x 3/8" 1.63" 0.97" 0.75" 0.08
30227
(30-227) 		1/2" x 1/2" 1.77" 0.97" 0.93" 0.14
30396
(30-396) 		1/2" x 3/4" 2.07" 1.02" 1.18" 0.20
30398
(30-398) 		5/8" x 3/8" 2.24" 1.55" 0.75" 0.10
30229
(30-229) 		5/8" x 1/2" 2.24" 1.48" 0.93" 0.11
30403 5/8" x 3/4" 2.26" 1.44" 1.19" 0.20
30399
(30-399) 		3/4" x 1/2" 2.24" 1.50" 0.93" 0.14
30395
(30-395) 		3/4" x 3/4" 2.55" 1.50" 1.18" 0.24
30400
(30-400) 		1" x 3/4" 2.55" 1.55" 1.18" 0.25
30402
(30-402) 		1" x 1" 2.68" 1.55" 1.43" 0.37
