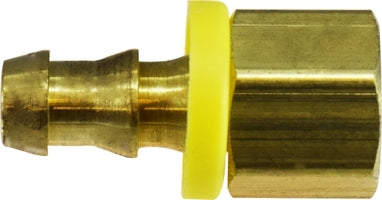

30391 (30-391) by Midland | Push On Hose Barb Fitting | Rigid Female Adapter | 5/16" Hose ID x 1/8" Female NPTF | Straight | Brass

Save $0.61

$5.45

$5.45 - $5.45

$5.45

$4.84

$4.84 - $4.84

$4.84

Midland Industries
Brass Fitting - Push On Barb Fitting - Rigid Female Adapter

Quantity

Specifications for Variant SKU: 30391 Midland
Shape (Orientation):	Straight
Ends Configuration:	5/16in Hose Barb, 1/8in Female NPTF
Material(s):	Brass

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P02	129PO7	30282	29FPO	HLF	626	274	726	940


Part Number	Hose ID x Female NPTF	A	B	Hex	Approx. Weight (Lbs.)
30220 (30-220)	1/4" x 1/8"	1.35"	0.87"	0.50"	0.02
30221 (30-221)	1/4" x 1/4"	1.51"	0.87"	0.62"	0.06
30384 (30-384)	1/4" x 3/8"	1.51"	0.77"	0.75"	0.06
30391 (30-391)	5/16" x 1/8"	1.32"	0.77"	0.50"	0.03
30222 (30-222)	5/16" x 1/4"	1.51"	0.87"	0.62"	0.06
30393 (30-393)	3/8" x 1/8"	1.47"	0.92"	0.56"	0.06
30224 (30-224)	3/8" x 1/4"	1.61"	0.97"	0.62"	0.06
30225 (30-225)	3/8" x 3/8"	1.63"	0.97"	0.75"	0.06
30394 (30-394)	3/8" x 1/2"	1.66"	0.92"	0.93"	0.12
30397 (30-397)	3/8" x 3/4"	1.97"	0.97"	1.18"	0.20
30223 (30-223)	1/2" x 1/4"	1.76"	1.02"	0.68"	0.08
30226 (30-226)	1/2" x 3/8"	1.63"	0.97"	0.75"	0.08
30227 (30-227)	1/2" x 1/2"	1.77"	0.97"	0.93"	0.14
30396 (30-396)	1/2" x 3/4"	2.07"	1.02"	1.18"	0.20
30398 (30-398)	5/8" x 3/8"	2.24"	1.55"	0.75"	0.10
30229 (30-229)	5/8" x 1/2"	2.24"	1.48"	0.93"	0.11
30403	5/8" x 3/4"	2.26"	1.44"	1.19"	0.20
30399 (30-399)	3/4" x 1/2"	2.24"	1.50"	0.93"	0.14
30395 (30-395)	3/4" x 3/4"	2.55"	1.50"	1.18"	0.24
30400 (30-400)	1" x 3/4"	2.55"	1.55"	1.18"	0.25
30402 (30-402)	1" x 1"	2.68"	1.55"	1.43"	0.37
