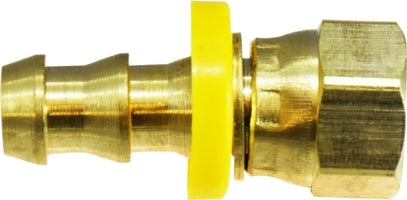

30264 (30-264) Midland Push On Hose Barb - Female 37° JIC Flare Swivel - 9/16-18 UNF Thread - 1/4" Hose ID x 3/8" Female 37° JIC - Brass

30264 by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 9/16-18 UNF Thread | 1/4" Hose ID x 3/8" Female 37° JIC | Brass

Save $0.37

$3.29

$3.29 - $3.29

$3.29

$2.92

$2.92 - $2.92

$2.92

Midland Industries
Brass Fitting - Push On Barb Fitting - Female 37° JIC Flare Swivel

Inventory @ Manufacturers Warehouse: 3289 Units

Quantity

Specifications for Variant SKU: 30264 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-On Hose Barb, 3/8in Female JIC
Material(s):	Brass

SPECIFICATIONS

Applications:	Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness. Midland Parts have been tested to max 150 PSI	Advantages:	Easy assembly. No clamps needed.
SAE Rating:	N/A	Lead Free:	No

Assembly Instructions:
1) Lubricate insert. 2) Hold hose at angle as shown & push on and up over first barb. 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged. 2) Bend hose and remove with a quick pull.

Crossover Series:
29P07	129PO12	JF	944/934	29J1CPO	HJF	688	738	288	100B-6	308	P990-F	30682	KA-NJ


Part Number	Hose ID x Female 37° JIC Flare	UNF Thread	A	B	Hex	Approx. Weight (Lbs.)
30265 (30-265)	1/4" x 1/4"	7/16-20	1.54"	0.87"	0.56"	0.04
30264 (30-264)	1/4" x 3/8"	9/16-18	1.57"	0.87"	0.68"	0.06
30270 (30-270)	5/16" x 3/8"	9/16-18	1.60"	0.82"	0.68"	0.06
30266 (30-266)	3/8" x 3/8"	9/16-18	1.70"	0.97"	0.68"	0.08
30267 (30-267)	1/2" x 1/2"	3/4-16	1.78"	0.97"	0.87"	0.10
30268 (30-268)	5/8" x 5/8"	7/8-14	2.33"	1.45"	1.00"	0.14
30269 (30-269)	3/4" x 3/4"	1-1/16-12	2.40"	1.45"	1.25"	0.22
30429 (30-429)	1" x 1"	1-5/16-12	2.60"	1.45"	1.50"	0.39
