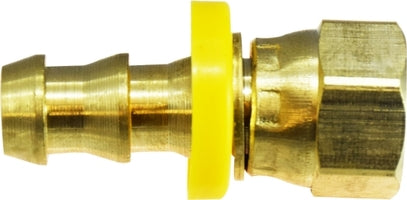

30267 (30-267) Midland Push On Hose Barb - Female 37° JIC Flare Swivel - 3/4-16 UNF Thread - 1/2" Hose ID x 1/2" Female 37° JIC - Brass

30267 by Midland | Push On Hose Barb | 37° JIC Flare Swivel | 3/4-16 UNF Thread | 1/2" Hose ID x 1/2" Female 37° JIC | Brass

Save $0.47 Save $0.47
$4.25
$4.25 - $4.25
$4.25
$3.78
$3.78 - $3.78
$3.78

Midland Industries
Brass Fitting - Push On Barb Fitting - Female 37° JIC Flare Swivel

Inventory @ Manufacturers Warehouse: 1574 Units
Specifications for Variant SKU: 30267 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Push-On Hose Barb, 1/2in Female JIC
Material(s): Brass

SPECIFICATIONS

Applications: Low Pressure Air, Fuel, Lube, and Oil Lines Pressure determined by tube material and hardness.
Midland Parts have been tested to max 150 PSI		 Advantages: Easy assembly. No clamps needed.
SAE Rating: N/A Lead Free: No


Assembly Instructions:
  • 1) Lubricate insert.
  • 2) Hold hose at angle as shown & push on and up over first barb.
  • 3) Continue to push straight on until hose is seated under protective plastic cap. Keep hands back from hose end area so that hose can expand.
Disassembling Instructions:
  • 1) Split hose. Do not cut completely through hose. Sealing edge of barb could be damaged.
  • 2) Bend hose and remove with a quick pull.
Crossover Series:
29P07 129PO12 JF 944/934 29J1CPO HJF 688 738 288 100B-6 308 P990-F 30682 KA-NJ
Part Number Hose ID x Female 37° JIC Flare UNF Thread A B Hex Approx. Weight
(Lbs.)
30265
(30-265) 		1/4" x 1/4" 7/16-20 1.54" 0.87" 0.56" 0.04
30264
(30-264) 		1/4" x 3/8" 9/16-18 1.57" 0.87" 0.68" 0.06
30270
(30-270) 		5/16" x 3/8" 9/16-18 1.60" 0.82" 0.68" 0.06
30266
(30-266) 		3/8" x 3/8" 9/16-18 1.70" 0.97" 0.68" 0.08
30267
(30-267) 		1/2" x 1/2" 3/4-16 1.78" 0.97" 0.87" 0.10
30268
(30-268) 		5/8" x 5/8" 7/8-14 2.33" 1.45" 1.00" 0.14
30269
(30-269) 		3/4" x 3/4" 1-1/16-12 2.40" 1.45" 1.25" 0.22
30429
(30-429) 		1" x 1" 1-5/16-12 2.60" 1.45" 1.50" 0.39
