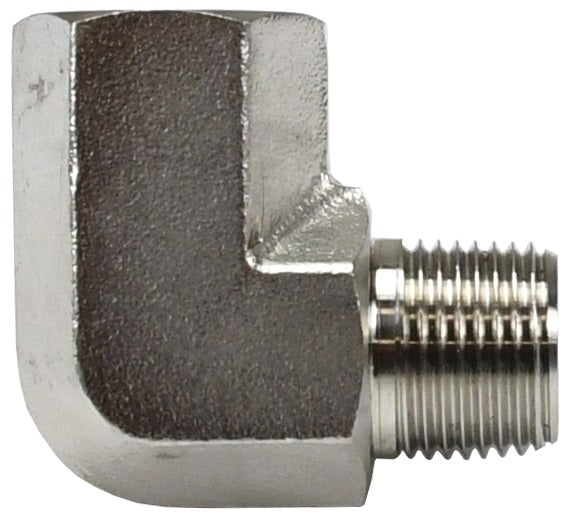

3040202SS by Dixon Valve | 90° Street Elbow | 1/8" Female NPT x 1/8" Male NPT | 316 Stainless Steel

Name: 3040202SS by Dixon Valve | 90° Street Elbow | 1/8" Female NPT x 1/8" Male NPT | 316 Stainless Steel
Brand: Dixon
SKU: 3040202SS Dixon
Price: 8.53 USD
Availability: InStock

Save $5.69

$14.22

$14.22 - $14.22

$14.22

$8.53

$8.53 - $8.53

$8.53

Dixon Valve
Pipe Fitting | 90° Street Elbow | Female NPT x Male NPT

Quantity

Specifications for Variant SKU: 3040202SS Dixon
Series:	304 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Female NPT, 1/8in Male NPT
Material(s):	316 Stainless Steel

Specifications:
Ref SAE 130239. Dryseal Full pattern
Safety Notes:
Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745

Extruded Brass Part Number	Previous Part Number	Female NPTF	Female NPTF
3040202C*	SE1F1M	1/8"	1/8"
3040402C	SE2F1M	1/4"	1/8"
3040404C*	SE2F2M	1/4"	1/4"
3040604C	SE3F2M	3/8"	1/4"
3040606C*	SE3F3M	3/8"	3/8"
3040806C	SE4F3M	1/2"	3/8"
3040808C*	SE4F4M	1/2"	1/2"
3041208C	SE6F4M	3/4"	1/2"
3041212C*	SE6F6M	3/4"	3/4"

Forged Lead-Free Brass Part Number	316 Stainless Steel Part Number	Female NPT	Male NPT
3040202CLF	3040202SS	1/8"	1/8"
3040404CLF	3040404SS	1/4"	1/4"
3040606CLF	3040606SS	3/8"	3/8"
3040808CLF	3040808SS	1/2"	1/2"
-	3041212SS	3/4"	3/4"
-	3041616SS	1"	1"

* Product shape may vary.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
