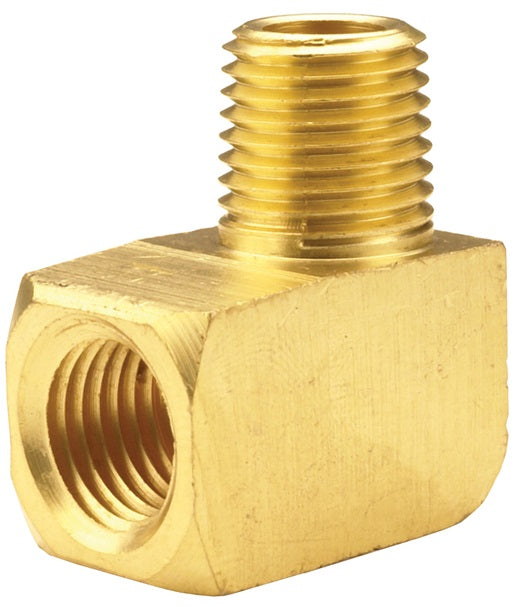

3040604C by Dixon Valve | 90° Street Elbow | 3/8" Female NPTF x 1/4" Male NPTF | Extruded Brass

3040604C by Dixon Valve | 90° Street Elbow | 3/8" Female NPTF x 1/4" Male NPTF | Extruded Brass

Save $6.43 Save $6.43
$12.62
$12.62 - $12.62
$12.62
$6.19
$6.19 - $6.19
$6.19

Dixon Valve
Pipe Fitting | 90° Street Elbow | Female NPTF x Male NPTF
Specifications for Variant SKU: 3040604C Dixon
Series: 304 Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Female NPTF, 1/4in Male NPTF
Material(s): Brass
Specifications:
  • Ref SAE 130239.
  • Dryseal
  • Full pattern
Safety Notes:
  • Lead-Free Brass: Conforms To: Safe Water Drinking Act (SWDA) of Jan. 4, 2014; California AB1953; RoHS Compliant. NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Extruded Brass
Part Number		 Previous
Part Number		 Female NPTF Female NPTF
3040202C* SE1F1M 1/8" 1/8"
3040402C SE2F1M 1/4" 1/8"
3040404C* SE2F2M 1/4" 1/4"
3040604C SE3F2M 3/8" 1/4"
3040606C* SE3F3M 3/8" 3/8"
3040806C SE4F3M 1/2" 3/8"
3040808C* SE4F4M 1/2" 1/2"
3041208C SE6F4M 3/4" 1/2"
3041212C* SE6F6M 3/4" 3/4"
Forged Lead-Free Brass
Part Number		 316 Stainless Steel
Part Number		 Female NPT Male NPT
3040202CLF 3040202SS 1/8" 1/8"
3040404CLF 3040404SS 1/4" 1/4"
3040606CLF 3040606SS 3/8" 3/8"
3040808CLF 3040808SS 1/2" 1/2"
- 3041212SS 3/4" 3/4"
- 3041616SS 1" 1"

* Product shape may vary.
