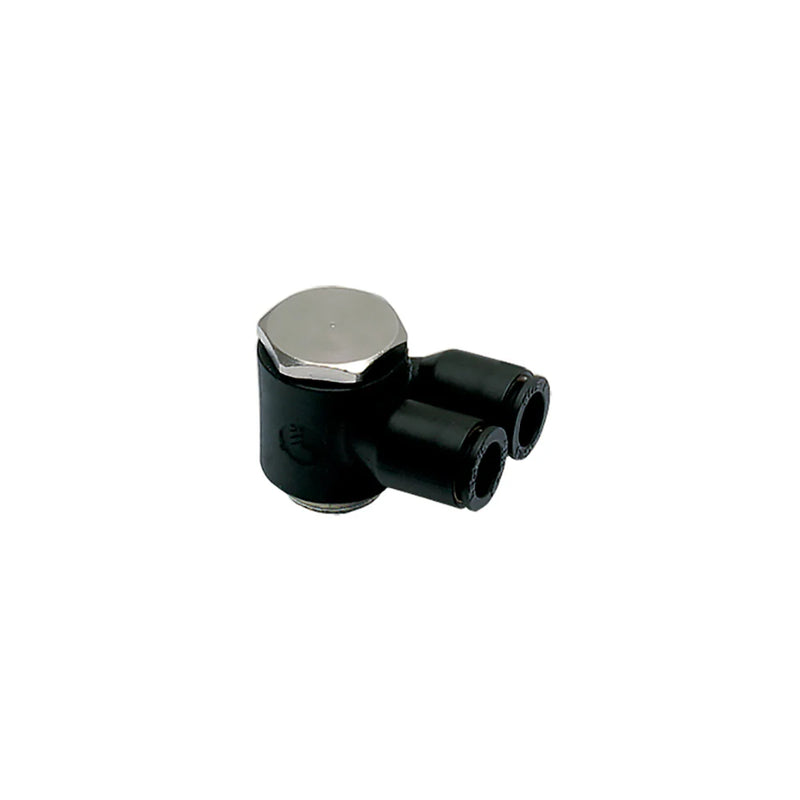

3049 60 18 by Parker | Twin Banjo | 3/8" Push-to-Connect x 3/8" Male NPT Thread | 21 mm Hex | 1.65" Length | Banjo | Nylon | Pack of 10

Save $166.81

$417.02

$417.02 - $417.02

$417.02

$250.21

$250.21 - $250.21

$250.21

by Parker Hannifin
Banjo Fittings:3149/3049 - twin banjo tube to NPT, UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 3049 60 18 Parker \| 10 \|
Series:	3149 Series
Shape (Orientation):	Banjo
Material(s):	Nickel-Plated Brass, Nylon, Polypropylene
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Product Features:	Compact design with minimum space between fittings Banjo bolt designed for maximum flow Easy access, even when fittings are close together Easy assembly and automatic sealing: • with pre-applied thread sealant on tapered threads • with an integral O-ring seal on parallel threads Safe operation: orientation of tube is ensured 100% leak-tested in production Date coding to guarantee quality and traceability Silicone-Free Modular Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets Orientable 360° for perfect alignment Modular: tube diameters may be different
Markets:	Automotive Textile Packaging Pneumatic Industrial
Applications:	Robotics Automotive Process Pneumatics Semi-Conductors Textile Packaging
Compatible Fluids	Compressed air Other fluids: please consult us
Working Pressure	290 psi (20 bar) maximum
Vacuum Capability	28" Hg
Working Pressure	-4° to 176° F (-20° to 80° C


Part Number	ØD	NPT / UNF (C)	E	F	G	H	L1	L2	N	Oz
3149 04 20	5/32"	10-32	.16"	-	.33"	.63"	.20"	.61"	.45"	.28 Oz
3049 04 11	5/32"	1/8"	-	13 mm	.43"	.73"	.28"	.73"	.57"	.46 Oz
3049 56 11	1/4"	1/8"	-	13 mm	.43"	.73"	.28"	.73"	.57"	.46 Oz
3049 56 14	1/4"	1/4"	-	17 mm	.43"	.89"	.37"	1.04"	.57"	1.20 Oz
3049 60 14	3/8"	1/4"	-	21 mm	.63"	1.04"	.43"	1.22"	.67"	1.20 Oz
3049 60 18	3/8"	3/8"	-	21 mm	.63"	1.04"	.43"	1.22"	.67"	2.33 Oz
