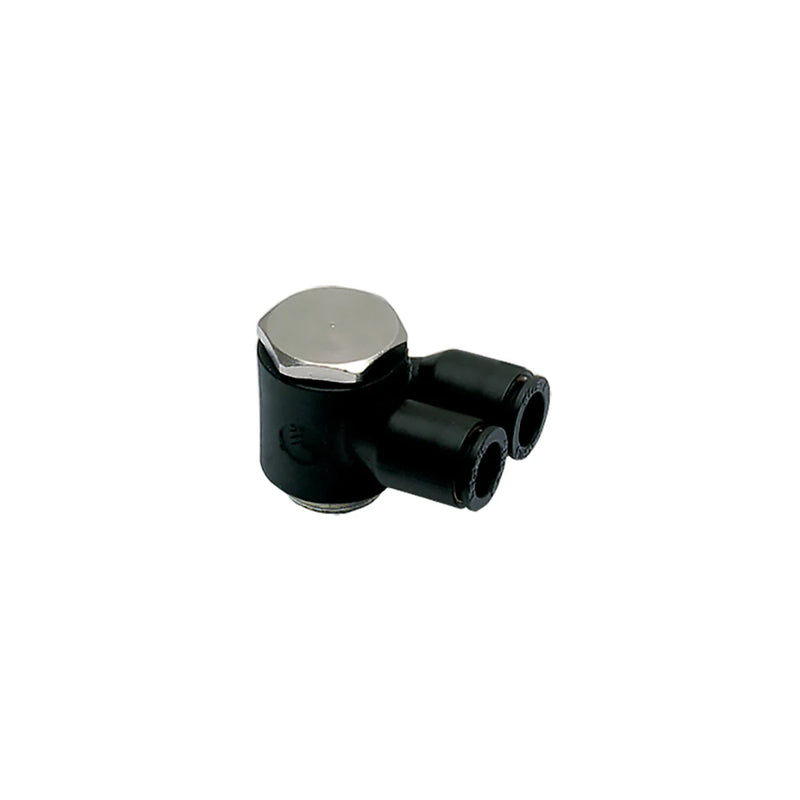

3149 04 20 by Parker | Twin Banjo | 5/32" Push-to-Connect x 10-32 Male UNF Thread | .81" Length | Banjo | Nylon

3149 04 20 by Parker | Twin Banjo | 5/32" Push-to-Connect x 10-32 Male UNF Thread | .81" Length | Banjo | Nylon | Pack of 10

Save $67.42 Save $67.42
$168.55
$168.55 - $168.55
$168.55
$101.13
$101.13 - $101.13
$101.13

by Parker Hannifin
Banjo Fittings:3149/3049 - twin banjo tube to NPT, UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 3149 04 20 Parker | 10 |
Series: 3149 Series
Shape (Orientation): Banjo
Material(s): Nickel-Plated Brass, Nylon, Polypropylene
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free
Product Features:
  • Compact design with minimum space between fittings
  • Banjo bolt designed for maximum flow
  • Easy access, even when fittings are close together
  • Easy assembly and automatic sealing:
      • • with pre-applied thread sealant on tapered threads
      • with an integral O-ring seal on parallel threads
  • Safe operation: orientation of tube is ensured
  • 100% leak-tested in production
  • Date coding to guarantee quality and traceability
  • Silicone-Free
      • Modular
  • Effortless stacking of banjo bodies to allow construction of 2 to 6 outlets
  • Orientable 360° for perfect alignment
  • Modular: tube diameters may be different
Markets:
  • Automotive
  • Textile
  • Packaging
  • Pneumatic
  • Industrial
Applications:
  • Robotics
  • Automotive Process
  • Pneumatics
  • Semi-Conductors
  • Textile
  • Packaging
Compatible Fluids
  • Compressed air
    Other fluids: please consult us
Working Pressure
  • 290 psi (20 bar) maximum
Vacuum Capability
  • 28" Hg
Working Pressure
  • -4° to 176° F (-20° to 80° C
Part Number ØD NPT / UNF (C) E F G H L1 L2 N Oz
3149 04 20 5/32" 10-32 .16" - .33" .63" .20" .61" .45" .28 Oz
3049 04 11 5/32" 1/8" - 13 mm .43" .73" .28" .73" .57" .46 Oz
3049 56 11 1/4" 1/8" - 13 mm .43" .73" .28" .73" .57" .46 Oz
3049 56 14 1/4" 1/4" - 17 mm .43" .89" .37" 1.04" .57" 1.20 Oz
3049 60 14 3/8" 1/4" - 21 mm .63" 1.04" .43" 1.22" .67" 1.20 Oz
3049 60 18 3/8" 3/8" - 21 mm .63" 1.04" .43" 1.22" .67" 2.33 Oz
