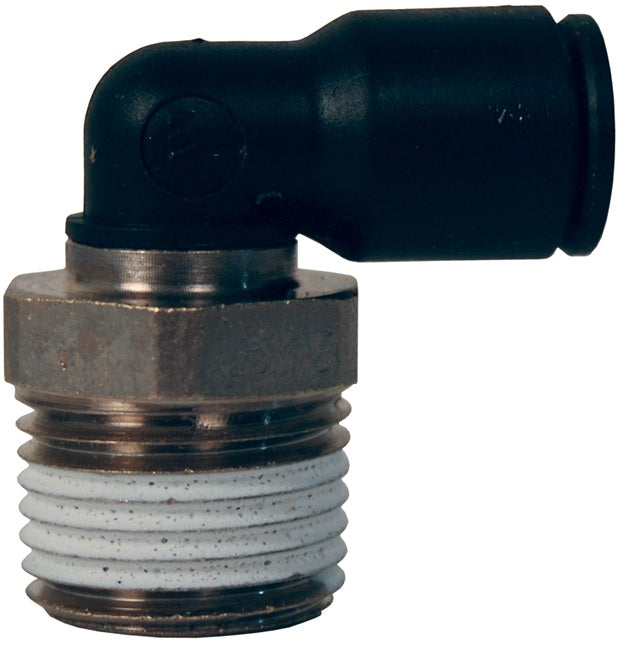

31090613 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 6mm Tube OD x 1/4" Male BSPT | Nylon / Nickel-Plated Brass

31090613 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 6mm Tube OD x 1/4" Male BSPT | Nylon / Nickel-Plated Brass

Save $0.59 Save $0.59
$6.58
$6.58 - $6.58
$6.58
$5.99
$5.99 - $5.99
$5.99

Dixon Valve & Coupling
Legris Metric Push-In Fitting | Male Connector | 90° Elbow | Male BSPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31090613 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 6mm Push-to-Connect, 1/4in Male BSPT
Material(s): Nickel-Plated Brass, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane, and polyethylene tube.
  • Vacuum rating: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant.
Construction:
  • Polypropylene release button.
  • Nickel-plated brass threads.
  • Silicone free.
Specifications:
  • Pressure rating: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Part Number Tube O.D. Male BSPT
31090410 4mm 1/8"
31090413 4mm 1/4"
31090610 6mm 1/8"
31090613 6mm 1/4"
31090810 8mm 1/8"
31090813 8mm 1/4"
31090817 8mm 3/8"
31091013 10mm 1/4"
31091017 10mm 3/8"
