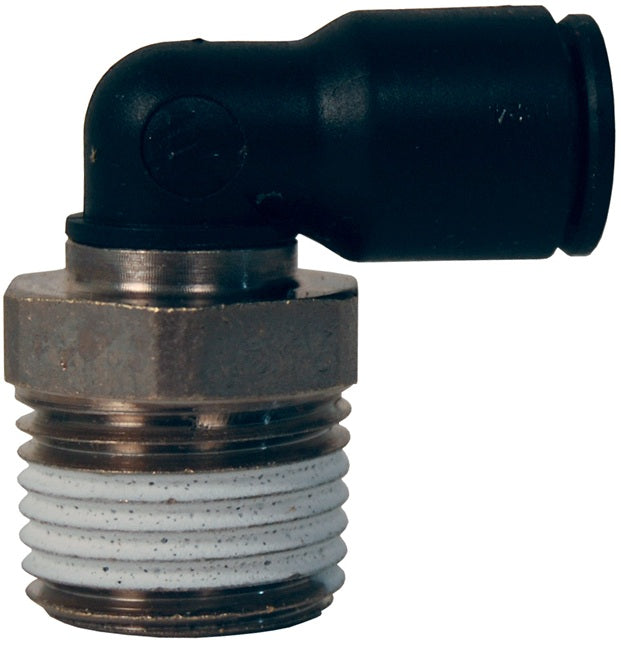

31091013 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 10mm Tube OD x 1/4" Male BSPT | Nylon / Nickel-Plated Brass

31091013 by Dixon Valve | Legris Metric Push-In Fitting | Male Connector | 90° Elbow | 10mm Tube OD x 1/4" Male BSPT | Nylon / Nickel-Plated Brass

Save $1.18 Save $1.18
$12.75
$12.75 - $12.75
$12.75
$11.57
$11.57 - $11.57
$11.57

Dixon Valve & Coupling
Legris Metric Push-In Fitting | Male Connector | 90° Elbow | Male BSPT x Tube End

Gripping Ring Technology provides a positive seal: sealing and holding is accomplished instantaneously. No tools required.
Specifications for Variant SKU: 31091013 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 10mm Push-to-Connect, 1/4in Male BSPT
Material(s): Nickel-Plated Brass, Nylon
Seal Material(s): Buna-N/Nitrile Rubber
Use:
  • Compatible tubing: semi-rigid nylon, polyurethane, and polyethylene tube.
  • Vacuum rating: vacuum of 28" Hg (99% vacuum).
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
  • Pre-applied thread sealant.
Construction:
  • Polypropylene release button.
  • Nickel-plated brass threads.
  • Silicone free.
Specifications:
  • Pressure rating: 290 PSI at ambient temperature
  • Temperature range: -4°F to 175°F (-20°C to 79°C)
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Part Number Tube O.D. Male BSPT
31090410 4mm 1/8"
31090413 4mm 1/4"
31090610 6mm 1/8"
31090613 6mm 1/4"
31090810 8mm 1/8"
31090813 8mm 1/4"
31090817 8mm 3/8"
31091013 10mm 1/4"
31091017 10mm 3/8"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
