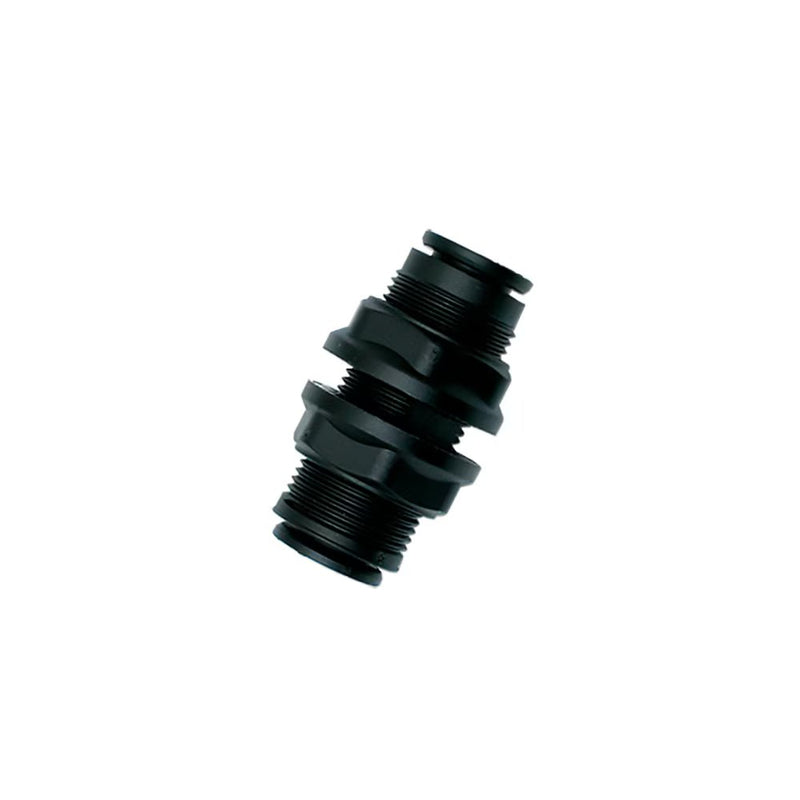

3116 53 00 by Parker | LF3000® Push-to-Connect Fittings | 1/8" Push-to-Connect x 1/8" Push-to-Connect | 13 mm Hex | .98" Length | Straight | Nylon

3116 53 00 by Parker | LF3000® Push-to-Connect Fittings | 1/8" Push-to-Connect x 1/8" Push-to-Connect | 13 mm Hex | .98" Length | Straight | Nylon | Pack of 10

Save $32.45 Save $32.45
$81.12
$81.12 - $81.12
$81.12
$48.67
$48.67 - $48.67
$48.67

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3116 - bulkhead union tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3116 53 00 Parker | 10 |
Brand: LF 3000®
Series: 3116 Series
Shape (Orientation): Straight
Material(s): Nylon, Plastic
Special Properties: Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD E K (max) L1 L2 ØT (max) Max Torque Oz
3116 53 00 1/8" 13 mm .22" .37" .61" .41" .64 Oz 11 lb
3116 55 00 3/16" 15 mm .33" .55" .94" .47" .67 Oz 11 lb
3116 56 00 1/4" 16 mm .35" .37" .81" .53" .24 Oz 13 lb
3116 60 00 3/8" 22 mm .57" .51" 1.18" .73" .65 Oz 22 lb
3116 62 00 1/2" 29 mm .81" .67" 1.61" 1.00" 1.00 Oz 22 lb
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
