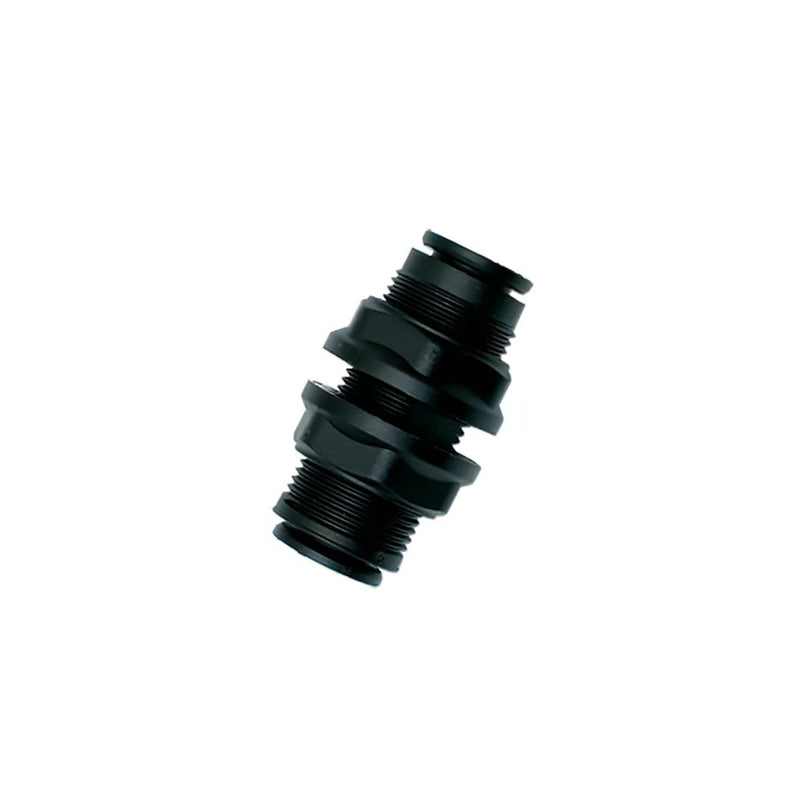

3116 55 00 by Parker | LF3000® Push-to-Connect Fittings | 3/16" Push-to-Connect x 3/16" Push-to-Connect | 15 mm Hex | 1.49" Length | Straight | Nylon

3116 55 00 by Parker | LF3000® Push-to-Connect Fittings | 3/16" Push-to-Connect x 3/16" Push-to-Connect | 15 mm Hex | 1.49" Length | Straight | Nylon | Pack of 10

Save $30.26 Save $30.26
$75.65
$75.65 - $75.65
$75.65
$45.39
$45.39 - $45.39
$45.39

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3116 - bulkhead union tube to tube

Package Quantity: 10 Units

Specifications for Variant SKU: 3116 55 00 Parker | 10 |
Brand: LF 3000®
Series: 3116 Series
Shape (Orientation): Straight
Material(s): Nylon, Plastic
Special Properties: Silicone Free
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD E K (max) L1 L2 ØT (max) Max Torque Oz
3116 53 00 1/8" 13 mm .22" .37" .61" .41" .64 Oz 11 lb
3116 55 00 3/16" 15 mm .33" .55" .94" .47" .67 Oz 11 lb
3116 56 00 1/4" 16 mm .35" .37" .81" .53" .24 Oz 13 lb
3116 60 00 3/8" 22 mm .57" .51" 1.18" .73" .65 Oz 22 lb
3116 62 00 1/2" 29 mm .81" .67" 1.61" 1.00" 1.00 Oz 22 lb
