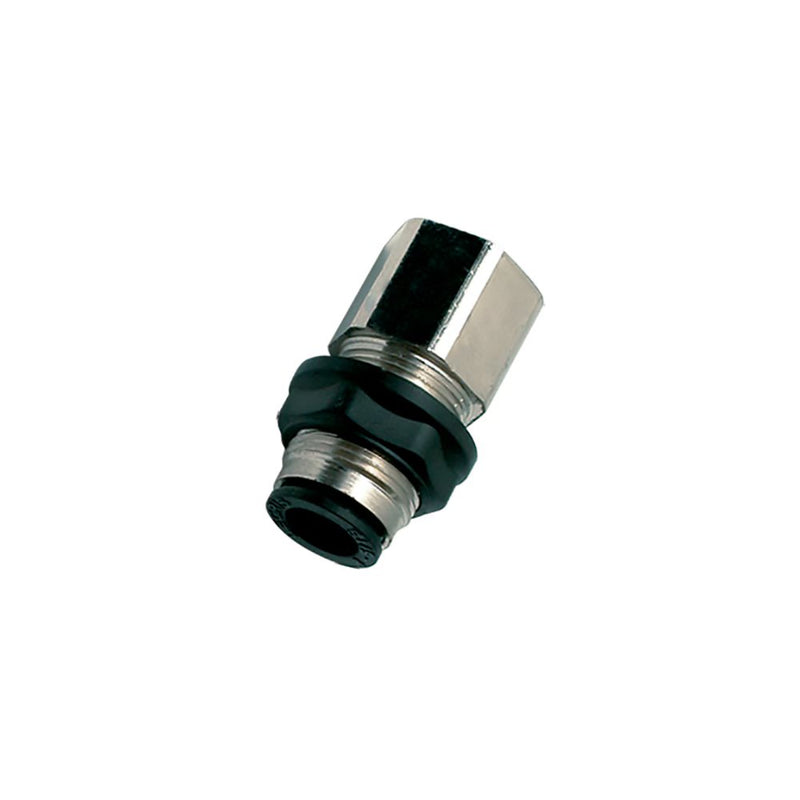

3136 08 13 by Parker | Legris Bulkhead Connector Fitting | 8mm Push-to-Connect x 1/4" Female BSPP Thread | 18mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $96.89

$242.22

$242.22 - $242.22

$242.22

$145.33

$145.33 - $145.33

$145.33

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3136 Bulkhead Connector, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3136 08 13 Parker \| 10 \|
Brand:	LF 3000®
Series:	3136 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F1	F2	K (Max)	L1	L2	ØT (Min)	Kg
3136 04 10	4 mm	1/8"	9.5 mm	13 mm	13 mm	7 mm	17 mm	11.5 mm	10.5 mm	.015 Kg
3136 04 13	4 mm	1/4"	13.5 mm	13 mm	16 mm	7 mm	17 mm	15.5 mm	10.5 mm	.021 Kg
3136 06 10	6 mm	1/8"	9.5 mm	15 mm	15 mm	8 mm	19 mm	10.5 mm	12.5 mm	.021 Kg
3136 06 13	6 mm	1/4"	13.5 mm	15 mm	17 mm	7 mm	19 mm	15.5 mm	12.5 mm	.027 Kg
3136 06 17	6 mm	3/8"	12 mm	15 mm	22 mm	8 mm	19 mm	16.5 mm	12.5 mm	.041 Kg
3136 08 10	8 mm	1/8"	9.5 mm	18 mm	17 mm	8 mm	20.5 mm	10.5 mm	15.5 mm	.029 Kg
3136 08 13	8 mm	1/4"	13.5 mm	18 mm	17 mm	8 mm	20.5 mm	14.5 mm	15.5 mm	.029 Kg
3136 10 17	10 mm	3/8"	14 mm	22 mm	22 mm	8.5 mm	23 mm	16 mm	18.5 mm	.050 Kg
3136 12 17	12 mm	3/8"	14 mm	26 mm	24 mm	8.5 mm	27 mm	16 mm	22.5 mm	.079 Kg
3136 12 21	12 mm	1/2"	19.5 mm	26 mm	27 mm	8.5 mm	27 mm	21.5 mm	22.5 mm	.098 Kg
3136 16 17	16 mm	3/8"	12 mm	29 mm	29 mm	10.5 mm	30 mm	15 mm	27.5 mm	.125 Kg
3136 16 21	16 mm	1/2"	15 mm	29 mm	29 mm	10.5 mm	30 mm	19.5 mm	27.5 mm	.126 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
