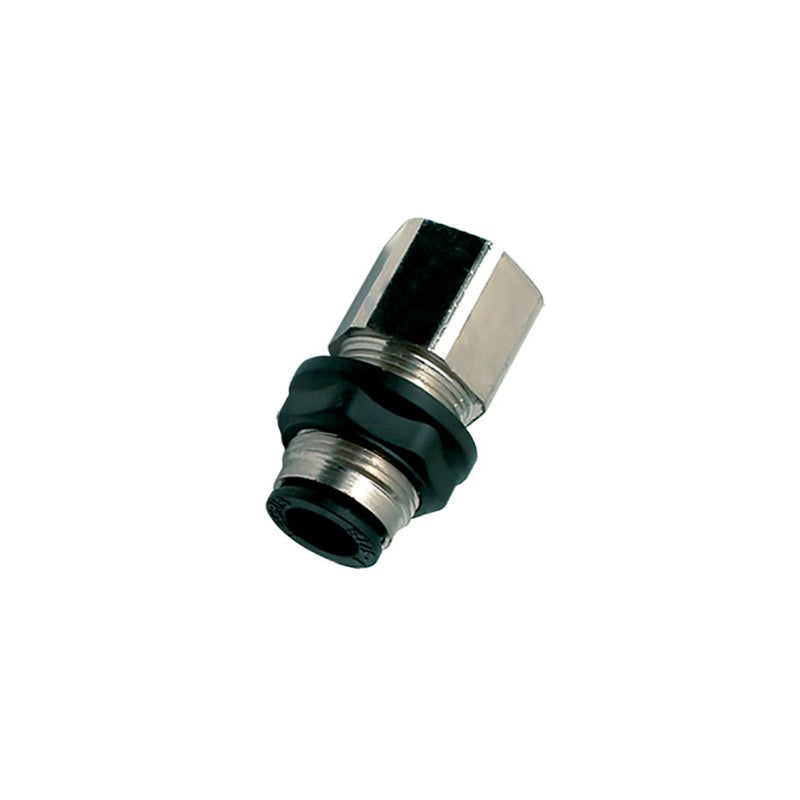

3136 12 21 by Parker | Legris Bulkhead Connector Fitting | 12mm Push-to-Connect x 1/2" Female BSPP Thread | 26mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $152.78

$381.95

$381.95 - $381.95

$381.95

$229.17

$229.17 - $229.17

$229.17

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3136 Bulkhead Connector, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 3136 12 21 Parker \| 10 \|
Brand:	LF 3000®
Series:	3136 Series
Shape (Orientation):	Straight
Material(s):	Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Lightweight

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum to 20 bar Working Temperature: -20°C to +80°C
Advantages:	Robust, lightweight, compact to build your pneumatic circuits Full flow connections to optimize flow rates Use in vacuum as well as in compressed air Customized products upon request. Please, contact us
Regulations:	ISO 14743 PED RoHS REACH
Component Materials:	Gripping Ring: Stainless Steel Body: Technical Polymer BSPP Thread Sealing: NBR O-Ring BSPT/NPT: Pre-coating Adaptor: Nickel-Plated Brass Sealing Ring: NBR Release Button Technical Polymer


Part Number	ØD	C	E	F1	F2	K (Max)	L1	L2	ØT (Min)	Kg
3136 04 10	4 mm	1/8"	9.5 mm	13 mm	13 mm	7 mm	17 mm	11.5 mm	10.5 mm	.015 Kg
3136 04 13	4 mm	1/4"	13.5 mm	13 mm	16 mm	7 mm	17 mm	15.5 mm	10.5 mm	.021 Kg
3136 06 10	6 mm	1/8"	9.5 mm	15 mm	15 mm	8 mm	19 mm	10.5 mm	12.5 mm	.021 Kg
3136 06 13	6 mm	1/4"	13.5 mm	15 mm	17 mm	7 mm	19 mm	15.5 mm	12.5 mm	.027 Kg
3136 06 17	6 mm	3/8"	12 mm	15 mm	22 mm	8 mm	19 mm	16.5 mm	12.5 mm	.041 Kg
3136 08 10	8 mm	1/8"	9.5 mm	18 mm	17 mm	8 mm	20.5 mm	10.5 mm	15.5 mm	.029 Kg
3136 08 13	8 mm	1/4"	13.5 mm	18 mm	17 mm	8 mm	20.5 mm	14.5 mm	15.5 mm	.029 Kg
3136 10 17	10 mm	3/8"	14 mm	22 mm	22 mm	8.5 mm	23 mm	16 mm	18.5 mm	.050 Kg
3136 12 17	12 mm	3/8"	14 mm	26 mm	24 mm	8.5 mm	27 mm	16 mm	22.5 mm	.079 Kg
3136 12 21	12 mm	1/2"	19.5 mm	26 mm	27 mm	8.5 mm	27 mm	21.5 mm	22.5 mm	.098 Kg
3136 16 17	16 mm	3/8"	12 mm	29 mm	29 mm	10.5 mm	30 mm	15 mm	27.5 mm	.125 Kg
3136 16 21	16 mm	1/2"	15 mm	29 mm	29 mm	10.5 mm	30 mm	19.5 mm	27.5 mm	.126 Kg
