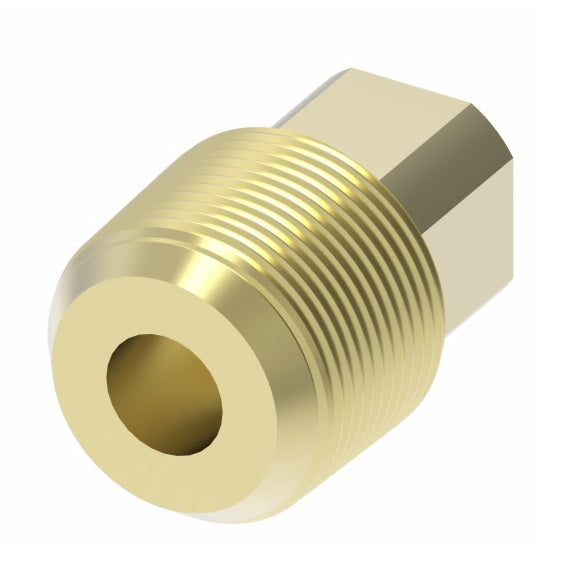

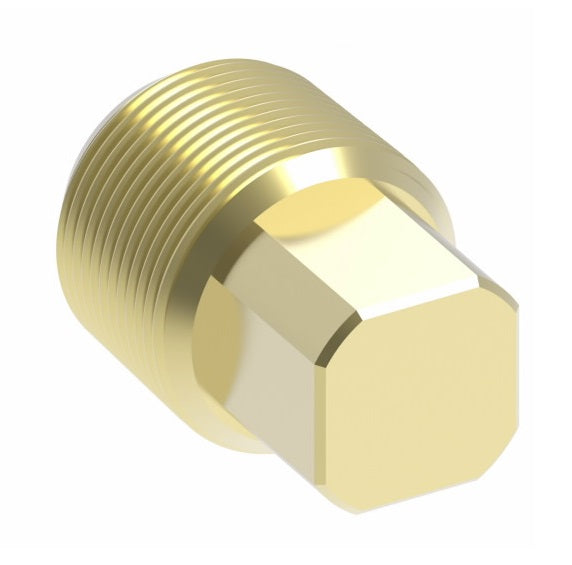

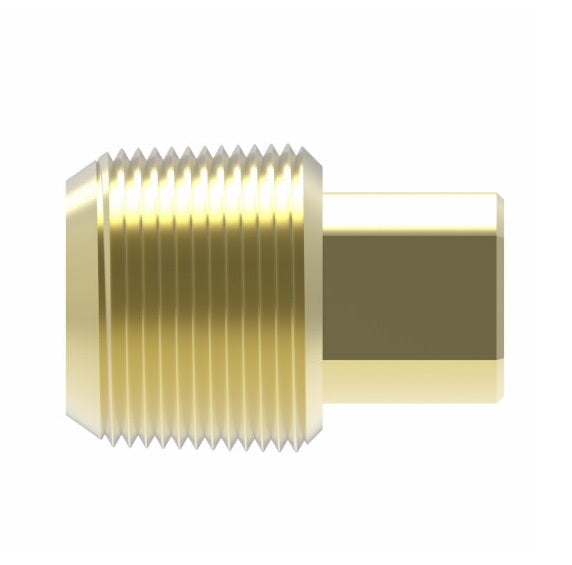

3151X4Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 1/4" Male NPTF (Short Thread) | Brass

3151X4Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 1/4" Male NPTF (Short Thread) | Brass

Name: 3151X4Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 1/4" Male NPTF (Short Thread) | Brass
Brand: Danfoss/Eaton
SKU: 3151X4Z Danfoss
Price: 1.36 USD
Availability: InStock

$1.36 - $1.36

$1.36

$1.36 - $1.36

$1.36

Aeroquip® by Danfoss
Pipe Adapter - Square Head Plug

Specifications for Variant SKU: 3151X4Z Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass Part Number with Sealant	Male Pipe Thread (PTF Short Thread)	Square C	F	L
3151X2	3151X2Z	1/8"	0.28"	0.24"	0.58"
3151X4	3151X4Z	1/4"	0.37"	0.29"	0.74"
3151X6	3151X6Z	3/8"	0.43"	0.32"	0.82"
3151X8	3151X8Z	1/2"	0.56"	0.39"	0.99"
3151X12	-	3/4"	0.62"	0.43"	1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
