3151X6Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 3/8" Male NPTF (Short Thread) | Brass
3151X6Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 3/8" Male NPTF (Short Thread) | Brass
3151X6Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 3/8" Male NPTF (Short Thread) | Brass
3151X6Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 3/8" Male NPTF (Short Thread) | Brass

3151X6Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 3/8" Male NPTF (Short Thread) | Brass

$4.50 - $4.50
$4.50
$4.50 - $4.50
$4.50

Aeroquip® by Danfoss

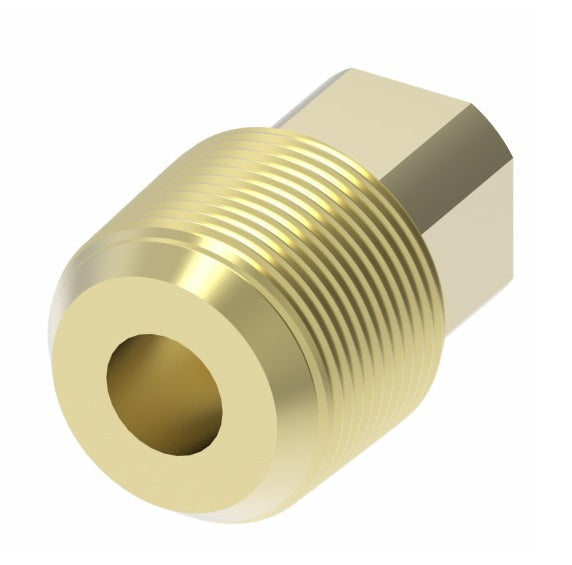

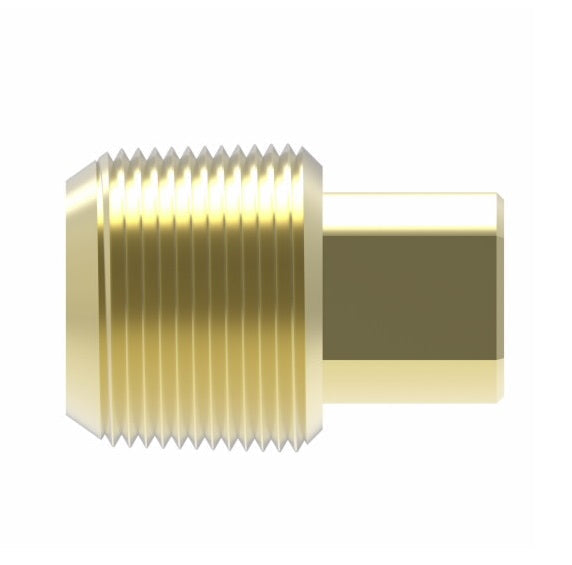

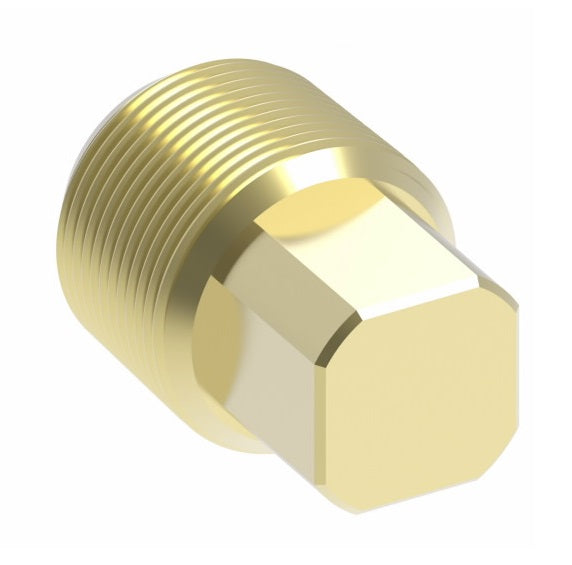

Pipe Adapter - Square Head Plug
Specifications for Variant SKU: 3151X6Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number 		Brass
Part Number
with Sealant		 Male Pipe Thread
(PTF Short Thread)		 Square
C		 F L
3151X2 3151X2Z 1/8" 0.28" 0.24" 0.58"
3151X4 3151X4Z 1/4" 0.37" 0.29" 0.74"
3151X6 3151X6Z 3/8" 0.43" 0.32" 0.82"
3151X8 3151X8Z 1/2" 0.56" 0.39" 0.99"
3151X12 - 3/4" 0.62" 0.43" 1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
