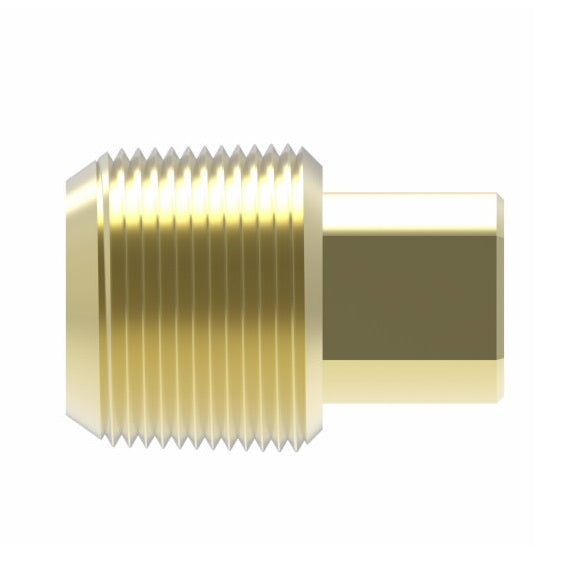

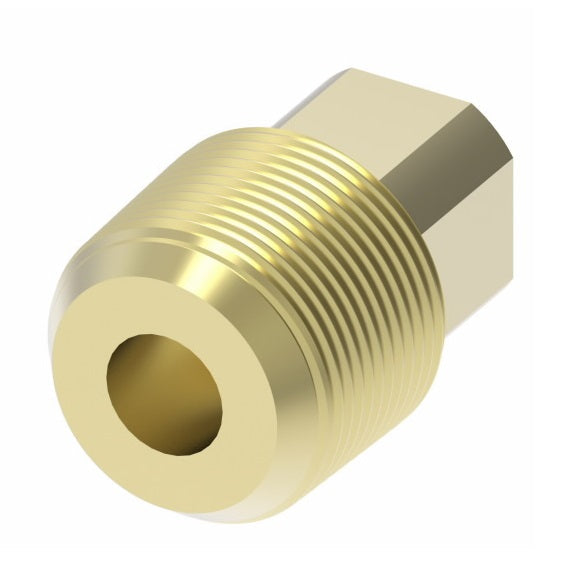

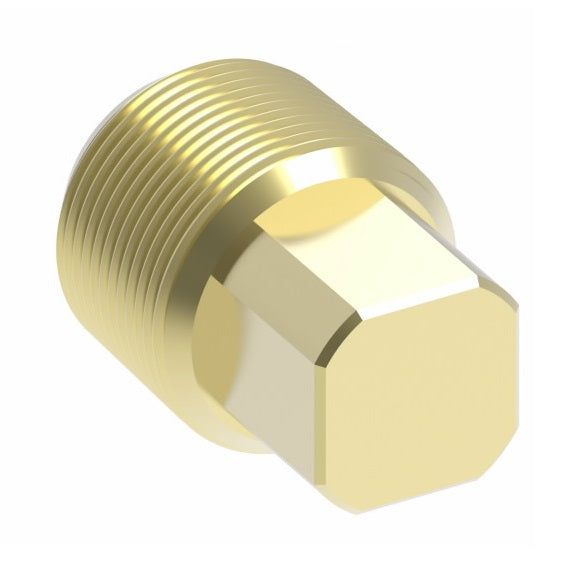

3151X2Z by Danfoss | Pipe Adapter | Square Head Plug (with Sealant) | 1/8" Male NPTF (Short Thread) | Brass

Original price $0.91 - Original price $0.91
Original price
$0.91
$0.91 - $0.91
Current price $0.91

Aeroquip® by Danfoss
Pipe Adapter - Square Head Plug

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 3151X2Z Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPTF
Material(s): Brass
Applications:
  • Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
  • Dryseal pipe threads (NPTF).
  • Fair Vibration Resistance.
Used With:
  • Brass, bronze and iron pipe.
Material:
  • CA360 Brass.
Operating Pressure:
  • Operating pressure up to 1200 psi.
Temperature Range:
  • -65°F to +250°F
    (-53°C to +121°C).
Conformance:
  • Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.
Pipe Size 1/16" 1/8" 1/4" 3/8" 1/2" 3/4"
Thread Size 1/16-27 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14
Brass
Part Number
Brass
Part Number
with Sealant
Male Pipe Thread
(PTF Short Thread)
Square
C
F L
3151X2 3151X2Z 1/8" 0.28" 0.24" 0.58"
3151X4 3151X4Z 1/4" 0.37" 0.29" 0.74"
3151X6 3151X6Z 3/8" 0.43" 0.32" 0.82"
3151X8 3151X8Z 1/2" 0.56" 0.39" 0.99"
3151X12 - 3/4" 0.62" 0.43" 1.12"
