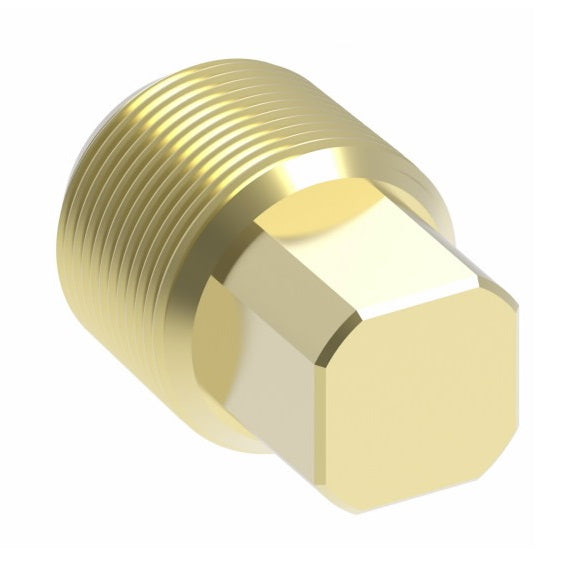

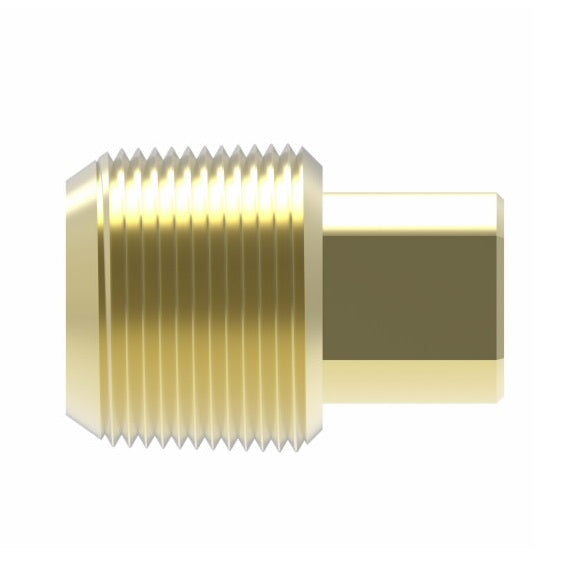

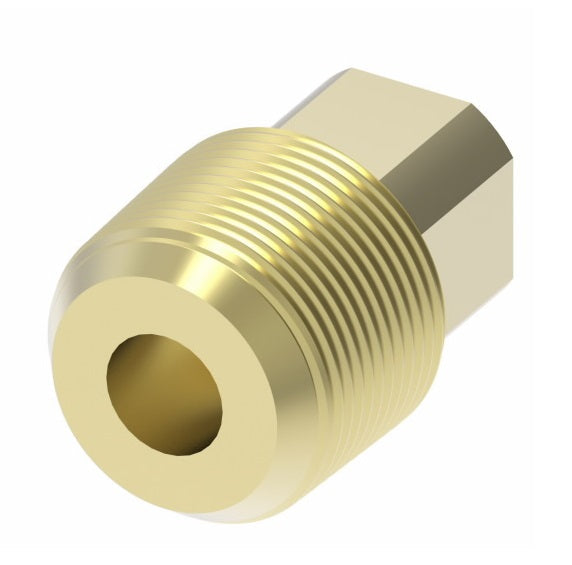

3151X4 by Danfoss | Pipe Adapter | Square Head Plug | 1/4" Male NPTF (Short Thread) | Brass

3151X4 by Danfoss | Pipe Adapter | Square Head Plug | 1/4" Male NPTF (Short Thread) | Brass

Name: 3151X4 by Danfoss | Pipe Adapter | Square Head Plug | 1/4" Male NPTF (Short Thread) | Brass
Brand: Danfoss/Eaton
SKU: 3151X4 Danfoss
Price: 1.16 USD
Availability: InStock

$1.16 - $1.16

$1.16

$1.16 - $1.16

$1.16

Aeroquip® by Danfoss
Pipe Adapter - Square Head Plug

Specifications for Variant SKU: 3151X4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF
Material(s):	Brass

Applications:
Grease, refrigeration, instrumentation and hydraulic systems.
Advantages:
Dryseal pipe threads (NPTF). Fair Vibration Resistance.
Used With:
Brass, bronze and iron pipe.
Material:
CA360 Brass.
Operating Pressure:
Operating pressure up to 1200 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C).
Conformance:
Listed by Underwriters Laboratories (available on special order) for fuel equipment, refrigeration and gas. Meets specifications and standards of ASA, ASME and SAE.

Pipe Size	1/16"	1/8"	1/4"	3/8"	1/2"	3/4"
Thread Size	1/16-27	1/8-27	1/4-18	3/8-18	1/2-14	3/4-14


Brass Part Number	Brass Part Number with Sealant	Male Pipe Thread (PTF Short Thread)	Square C	F	L
3151X2	3151X2Z	1/8"	0.28"	0.24"	0.58"
3151X4	3151X4Z	1/4"	0.37"	0.29"	0.74"
3151X6	3151X6Z	3/8"	0.43"	0.32"	0.82"
3151X8	3151X8Z	1/2"	0.56"	0.39"	0.99"
3151X12	-	3/4"	0.62"	0.43"	1.12"
