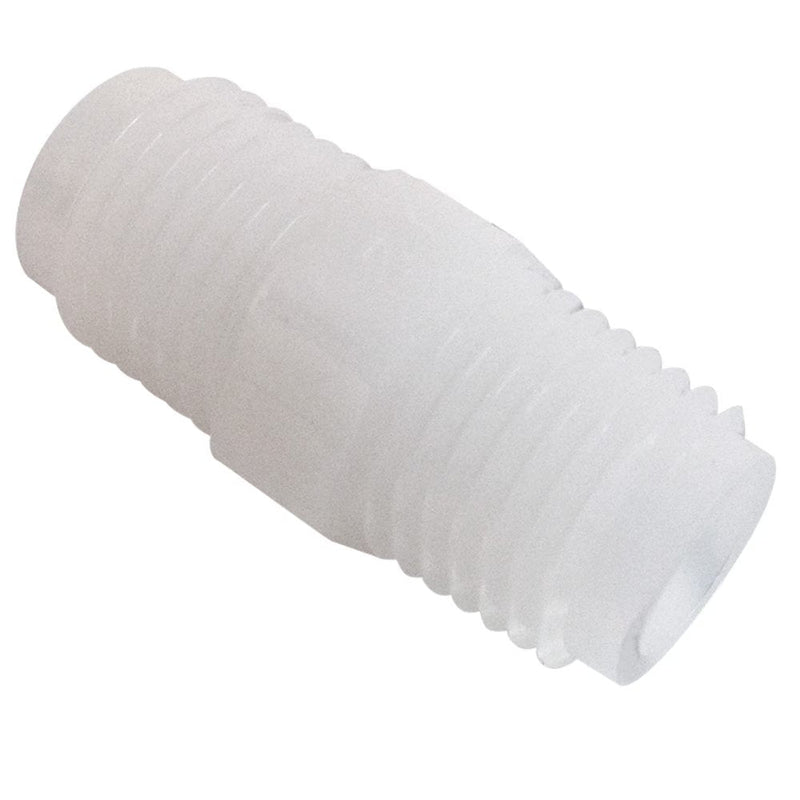

316P-2N by Parker | Pipe Fitting | 1/8" Male NPT Pipe Thread x 1/8" Male NPT Pipe Thread | 7/16" Hex | .99" Length | Straight | White | Nylon

316P-2N by Parker | Pipe Fitting | 1/8" Male NPT Pipe Thread x 1/8" Male NPT Pipe Thread | 7/16" Hex | .99" Length | Straight | White | Nylon

Save $0.03 Save $0.03
$0.47
$0.47 - $0.47
$0.47
$0.44
$0.44 - $0.44
$0.44

by Parker Hannifin
Par-Barb® Fittings:Hex Nipple 316P
Specifications for Variant SKU: 316P-2N Parker
Brand: Par-Barb®
Series: 316P Series
Shape (Orientation): Straight
Material(s): Nylon
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number NPT Pipe Thread Side 1 NPT Pipe Thread Side 2 Hex (C) L Flow Diameter (D)
316P-2N 316P-2PP 1/8" 1/8" 7/16" .99" .22"
316P-4-2N 316P-4-2PP 1/4" 1/8" 9/16" 1.13" .22"
316P-4N 316P-4PP 1/4" 1/4" 9/16" 1.24" .31"
316P-6-2N 316P-6-2PP 3/8" 1/8" 11/16" 1.11" .22"
316P-6-4N 316P-6-4PP 3/8" 1/4" 11/16" 1.25" .31"
316P-6N 316P-6PP 3/8" 3/8" 11/16" 1.23" .43"
316P-8-2N 316P-8-2PP 1/2" 1/8" 7/8" 1.23" .22"
316P-8-4N 316P-8-4PP 1/2" 1/4" 7/8" 1.36" .31"
316P-8-6N 316P-8-6PP 1/2" 3/8" 7/8" 1.35" .43"
316P-8N 316P-8PP 1/2" 1/2" 7/8" 1.45" .59"
316P-12-8N 316P-12-8PP 3/4" 1/2" 1-1/8" 1.47" .59"
316P-12N 316P-12PP 3/4" 3/4" 1-1/8" 1.48" .74"
316P-16N 316P-16PP 1" 1" 1-3/8" 1.85" .98"
