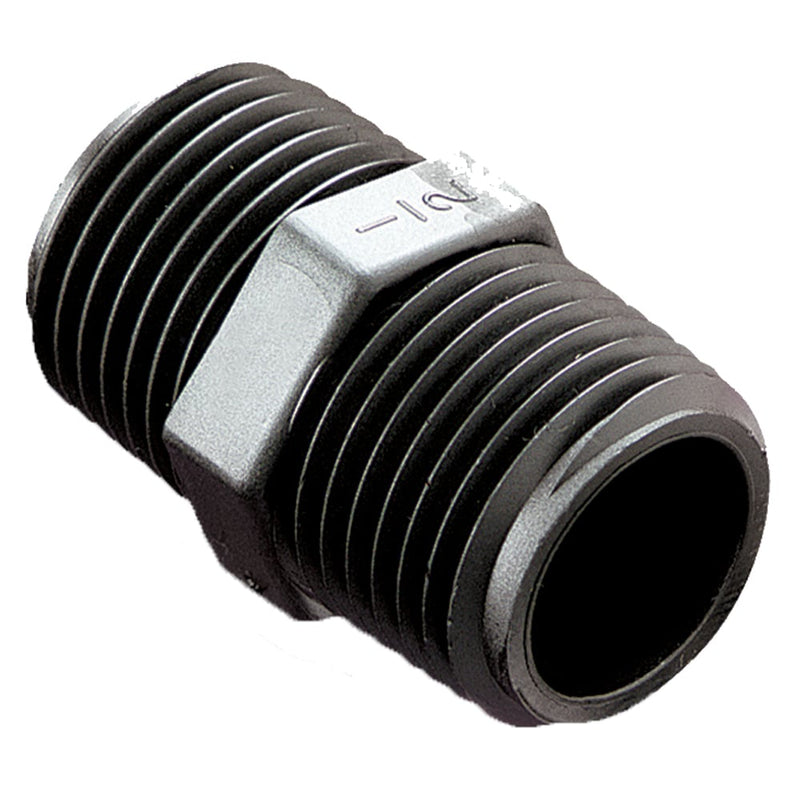

316P-8-6PP by Parker | Pipe Fitting | 1/2" Male NPT Pipe Thread x 3/8" Male NPT Pipe Thread | 7/8" Hex | 1.35" Length | Straight | Black | Polypropylene

316P-8-6PP by Parker | Pipe Fitting | 1/2" Male NPT Pipe Thread x 3/8" Male NPT Pipe Thread | 7/8" Hex | 1.35" Length | Straight | Black | Polypropylene

Save $0.03 Save $0.03
$0.47
$0.47 - $0.47
$0.47
$0.44
$0.44 - $0.44
$0.44

by Parker Hannifin
Par-Barb® Fittings:Hex Nipple 316P
Specifications for Variant SKU: 316P-8-6PP Parker
Brand: Par-Barb®
Series: 316P Series
Shape (Orientation): Straight
Material(s): Polypropylene
Special Properties: Water and Beverage
Product Features:
  • Available in black polypropylene and white nylon
  • FDA compliant material
  • NSF/ANSI 51
  • Uniprene washer
  • Up to 1 1/2” sizes
Markets:
  • Water
  • Beverage Dispensing
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • Beverages
  • Cooling Systems
  • Vacuum
Pressure Range: Up to 125 PSI (8.6 bar)
Temperature Range: Nylon: -40° to +200° F (-40° to +93.3° C)
Polypropylene: 0° to +212° F (-12.2° to +100° C)
Compatible Tubing:
  • Vinyl
  • Polyurethane
  • Rubber Hose
White Nylon Part Number Black Polypropylene Part Number NPT Pipe Thread Side 1 NPT Pipe Thread Side 2 Hex (C) L Flow Diameter (D)
316P-2N 316P-2PP 1/8" 1/8" 7/16" .99" .22"
316P-4-2N 316P-4-2PP 1/4" 1/8" 9/16" 1.13" .22"
316P-4N 316P-4PP 1/4" 1/4" 9/16" 1.24" .31"
316P-6-2N 316P-6-2PP 3/8" 1/8" 11/16" 1.11" .22"
316P-6-4N 316P-6-4PP 3/8" 1/4" 11/16" 1.25" .31"
316P-6N 316P-6PP 3/8" 3/8" 11/16" 1.23" .43"
316P-8-2N 316P-8-2PP 1/2" 1/8" 7/8" 1.23" .22"
316P-8-4N 316P-8-4PP 1/2" 1/4" 7/8" 1.36" .31"
316P-8-6N 316P-8-6PP 1/2" 3/8" 7/8" 1.35" .43"
316P-8N 316P-8PP 1/2" 1/2" 7/8" 1.45" .59"
316P-12-8N 316P-12-8PP 3/4" 1/2" 1-1/8" 1.47" .59"
316P-12N 316P-12PP 3/4" 3/4" 1-1/8" 1.48" .74"
316P-16N 316P-16PP 1" 1" 1-3/8" 1.85" .98"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
